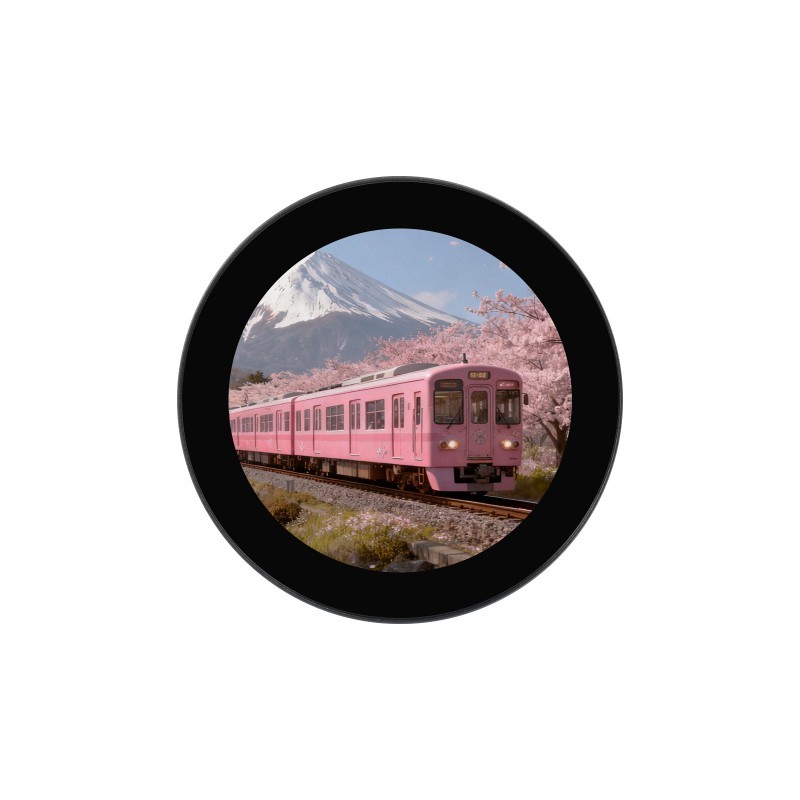

Main view
search
  • Main view
  • Display off
  • Rear view – top view
  • Rear view – angled view
  • Full kit
ID: 1202966
zł277.83
Tax included

zł225.88 tax excl.

A 3.4-inch round DSI capacitive touch display featuring an IPS panel, 800 × 800 resolution, and 10-point multi-touch, designed for embedded systems and development boards, including Raspberry Pi. Waveshare 3.4-DSI-TOUCH-C

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

Round DSI display designed for applications that require a symmetrical screen format combined with multi-touch support in a compact form factor. The IPS panel with 800 × 800 pixels delivers high image detail, natural color reproduction, and wide 170° viewing angles, making it suitable for clear and readable user interfaces.

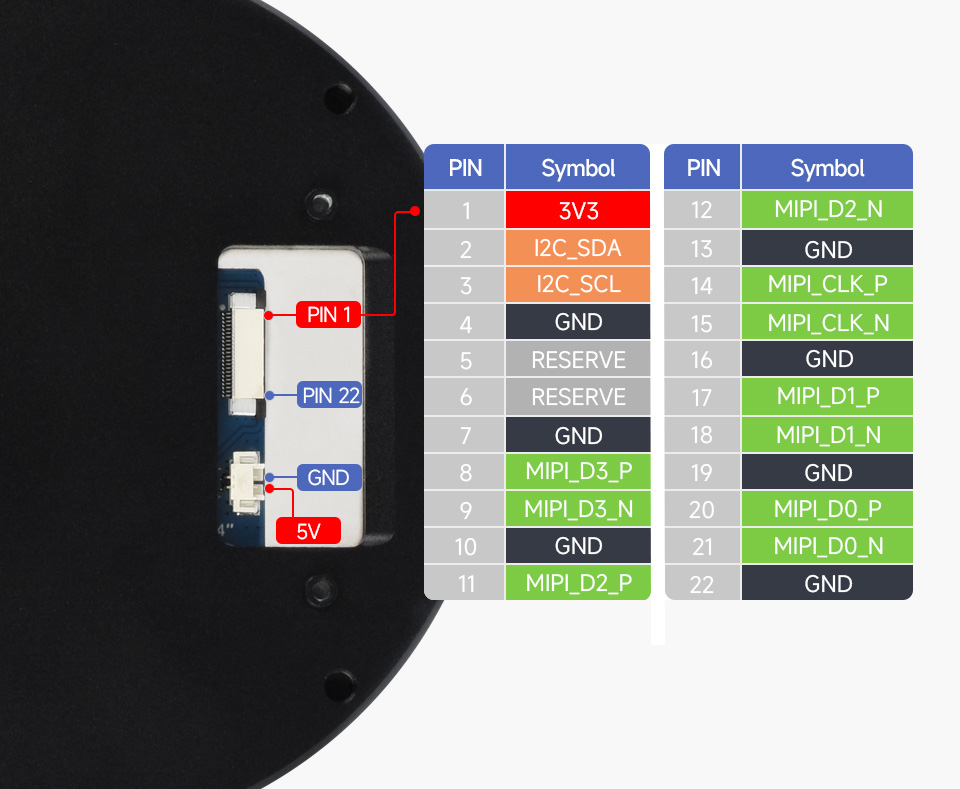

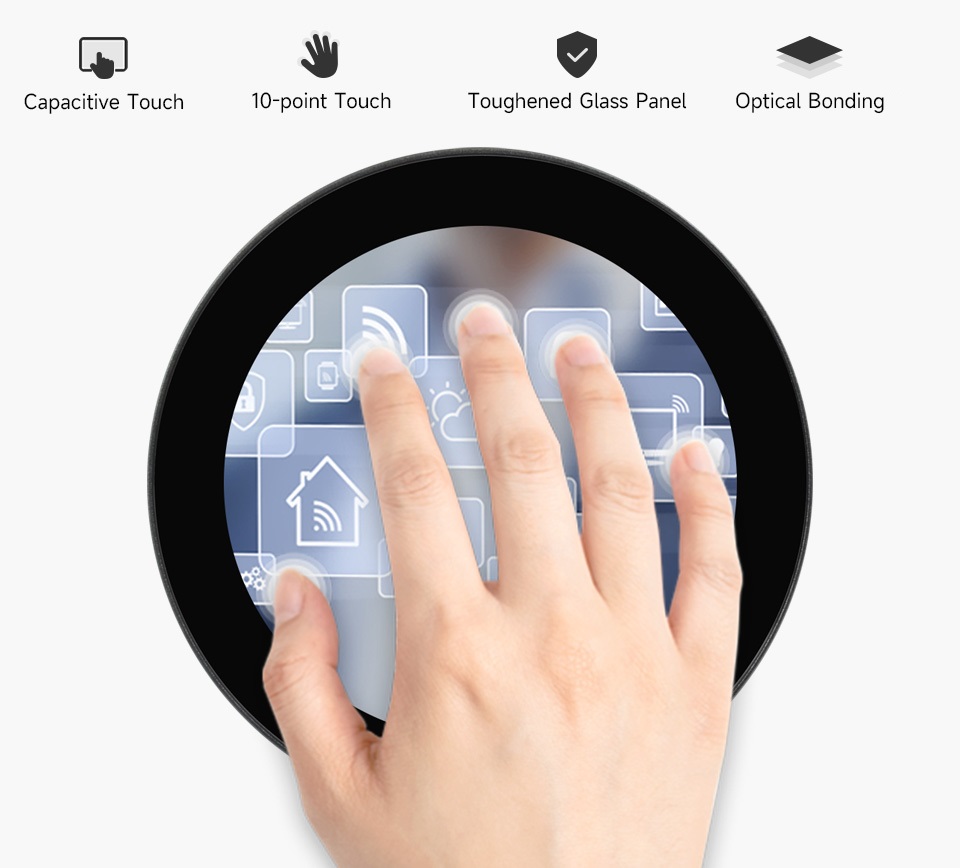

Image transmission is handled via a 2-lane MIPI DSI interface, enabling direct connection to compatible hosts without occupying GPIO pins. The integrated capacitive touch panel communicates over I2C and supports up to 10 touch points, depending on the operating system.


The front surface is protected by toughened glass (up to 6H hardness). Optical bonding reduces reflections, improves readability, and helps prevent dust ingress. The display offers brightness up to 300 cd/m², adjustable via software.

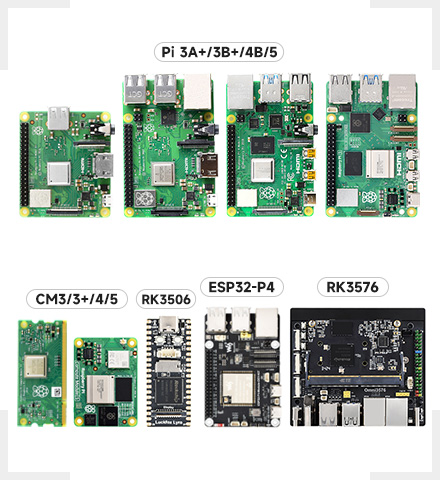

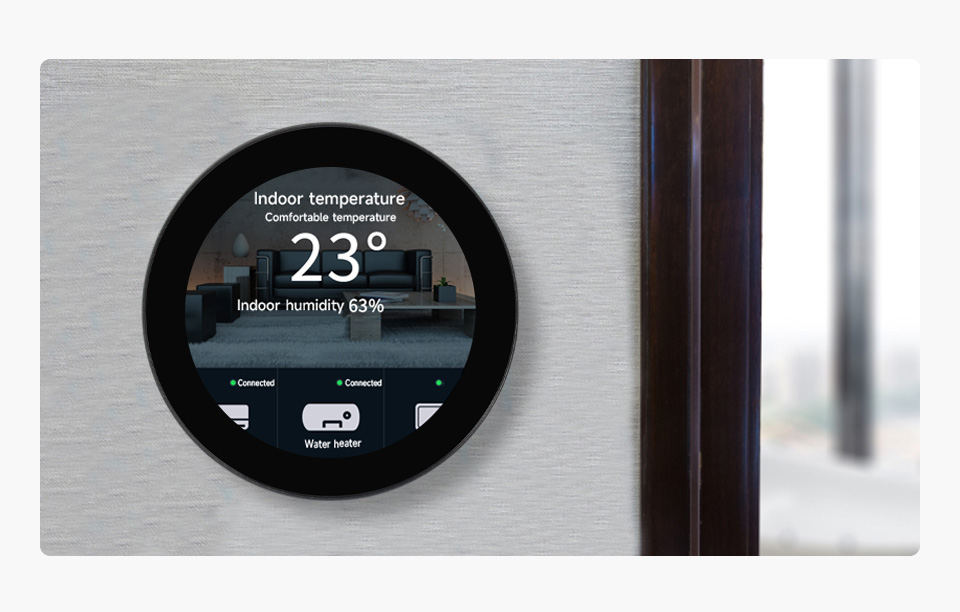

The display supports Raspberry Pi OS with 10-point touch, as well as RK3506, RK3576, and ESP32-P4 platforms with multi-touch and graphical interface support. Typical applications include smart home systems, in-vehicle devices, consumer electronics, and industrial equipment.


                                                                                                                                                Compatibile with



Features

  • Display
    • Size: 3.4 inches
    • Resolution: 800 × 800
    • Panel type: IPS
    • Color depth: Full color
    • Color gamut: 70% NTSC
    • Contrast ratio: 1200:1
    • Brightness: up to 300 cd/m²
    • Viewing angle: 170°
    • Display interface: 2-lane MIPI DSI
    • Display driver IC: JD9365
  • Touch Panel
    • Touch type: Capacitive
    • Touch points: up to 10
    • Touch interface: I2C
    • Touch controller IC: GT928
    • Cover glass: Toughened glass, up to 6H
    • Bonding technology: Optical bonding
  • Mechanical Parameters
    • Overall dimensions: 115.00 × 115.00 mm
    • Active display area: 87.60 × 87.60 mm
  • Operating Conditions
    • Operating temperature: 0°C to 60°C
  • Compatibility
    • Raspberry Pi: Raspberry Pi OS, 10-point touch
    • RK3506: Buildroot, Ubuntu, and other systems
    • RK3576: Buildroot, Debian, Ubuntu, Android
    • ESP32-P4: LVGL GUI support

Kit includes

  • 1 × 3.4-DSI-TOUCH-C display
  • 1 × Mounting screws pack
  • 1 × MX1.25 2-pin to MX1.25 4-pin cable, approx. 150 mm
  • 1 × MIPI DSI cable, 12 cm
  • 1 × MX1.25 2-pin to 2.54 mm 3-pin cable
  • 2 × 22-pin FFC cables, opposite-side contacts
