7.3 inch E-Paper E6 Display for Raspberry Pi Zero - Waveshare 33508

Description

Waveshare 33508 is a kit based on a full color E-Paper display with a diagonal size of 7.3 inches, using E Ink Spectra 6 (E6) technology. The module is intended for use with Raspberry Pi Zero computers, including Raspberry Pi Zero 2 W, and is used in projects requiring low power consumption and long image retention without power.

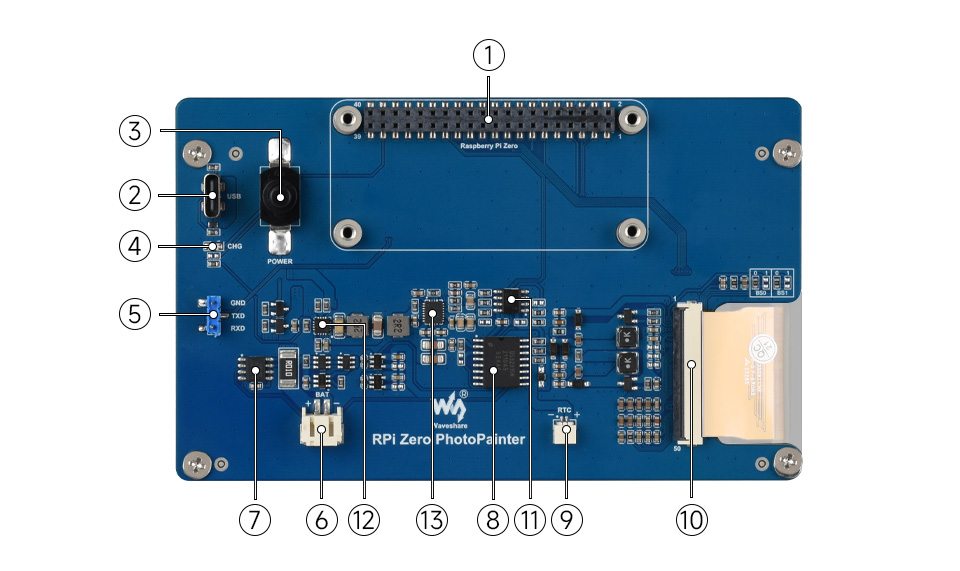

1. Raspberry Pi 40PIN header - for connecting to the Raspberry Pi Zero series boards
2. USB Type-C port - for entire circuit power supply and Batt. charging
3. Power button - for entire circuit power supply ON/OFF (excluding Batt. charging)
4. Charging indicator - for indicating Batt. charging status
5. Serial port debugging header - Adapting Raspberry Pi UART pin header, for controlling the RaspberryPi without an internet connection
6. Lithium Batt. header - PH2.0 connector for 3.7V Lithium Batt., supports charging and discharging
7. INA219 - Voltage/current monitor
8. RTC chip - DS3231 high precision RTC chip
9. RTC Lithium Batt. port - for rechargeable Lithium Batt. with JST SH1.0 2PIN header (3V)
10. E-paper display interface
11. EEPROM
12. ETA6003 - Batt. charge/discharge chip
13. SCT12A0DHKR - Voltage boost chip

The display operates in a passive, reflective mode, has no backlight, and retains the last displayed content even after power is disconnected. The integrated solid wood frame, rotatable stand, and wall mount enable the device to be used as a digital photo frame, information display, or an element of IoT systems. The module is equipped with a UPS circuit, a high-precision RTC DS3231 clock, and lithium battery support, allowing autonomous operation and safe system backup during power loss.

Features

• Display
  • Display type: E-Paper, passive reflective
  • Technology: E Ink Spectra 6 (E6)
  • Screen size: 7.3 inch
  • Resolution: 800 x 480
  • Number of colors: 6 (E6 Full Color)
  • Viewing angle: >170°
  • Backlight: none
  • Characteristics: paper-like, no blue light emission
• Interface and communication
  • Display interface: E-Paper
  • Communication bus: I2C
  • Standard: Raspberry Pi HAT+
• Power and backup
  • Power system: built-in UPS
  • Battery support: 3.7 V Li-Ion / Li-Poly
  • Battery connector: PH2.0
  • Simultaneous charge and discharge support: yes
  • Parameter monitoring: voltage, current, power, remaining capacity
  • Protection circuits: overcharge, over-discharge, short circuit, overcurrent
• Additional circuits
  • RTC: DS3231
  • EEPROM: yes
  • Voltage and current monitor: INA219
• Mechanical
  • Enclosure: solid wood frame
  • Stand: rotatable
  • Wall mounting: wall hook
  • GPIO connector: 40-pin Raspberry Pi
• Functionality and compatibility
  • Supported platforms: Raspberry Pi Zero, Raspberry Pi Zero 2 W
  • Supported operating system: Raspberry Pi OS
  • Offline operation support: yes
  • Text-to-image generation support: yes, when connected to a mainboard
• Operating conditions
  • Operating environment: requires ambient light
  • Applications: digital photo frame, information display, IoT, low-power systems

Kit includes

RPi-Zero2W-PhotoPainter

• 1x RPi Zero PhotoPainter
• 1x Raspberry Pi Zero 2 WHC
• 1x 64 GB TF card
• 1x Card reader
• No RTC battery (JST 2-pin connector) and no 3.7 V 1500 mA lithium battery
• 1x Acrylic plate
• 1x Screen protective film
• 1x Zero-HEATSINK
• 1x Thermal tapes (3 pcs)
• 1x Mini cross wrench sleeve
• 1x Screwdriver
• 1x 3PIN squid cable
• 1x CH343 USB UART board (Type-C)
• 1x Wall mount hook (total 2 pcs, 1 pc assembled)
• 1x Triangle opening tool
• 1x Screws and copper standoffs pack
