E Ink Spectra 6 (E6) 7.3″ display module 800×480 with HAT for Raspberry Pi - Waveshare 27875
ID: 1197403
zł364.56
Tax included
zł296.39 tax excl.

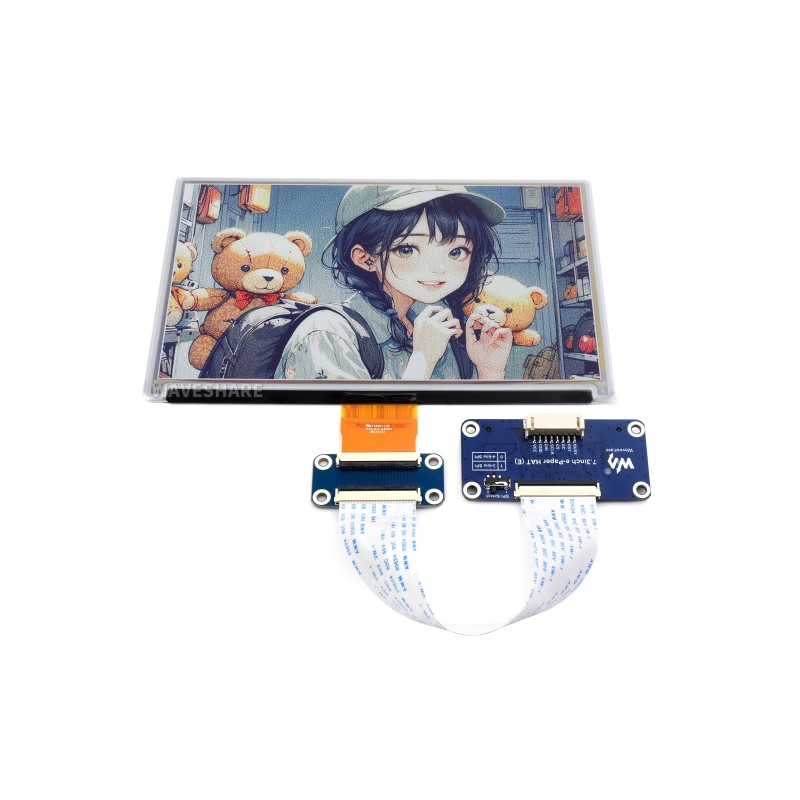

Waveshare 7.3" (E) with HAT module is an advanced, full-color e-paper display based on E Ink Spectra 6 technology. The module is intended for applications where high readability, low power consumption, and image persistence are essential—such as electronic labels, asset tags, or information boards. It supports popular hardware platforms like Raspberry Pi, Jetson Nano, Arduino, and STM32, offering broad compatibility and flexibility in electronic project integration.
Description
Module with a full-color 7.3-inch e-paper display featuring E Ink Spectra 6 technology. It allows for high-contrast and richly saturated image rendering, supporting six primary colors through dithering. With no backlight and passive light reflection, the screen delivers a paper-like effect, and the content remains visible without power. The device communicates via SPI and supports the HAT+ standard for Raspberry Pi, while also being compatible with other popular microcontroller platforms.
Specifications
- Diagonal: 7.3 inches
- Resolution: 800 × 480 pixels
- Technology: E Ink Spectra 6 – full-color display with six primary colors
- Grayscale: 2 levels
- Display area: 160 × 96 mm
- External dimensions: 170.20 × 111.20 × 0.91 mm
- Pixel size: 0.2 × 0.2 mm
- Communication interface: 3-wire SPI / 4-wire SPI
- Supply voltage: 3.3 V (panel), 3.3 / 5 V (module)
- Full refresh time: 12 s
- Power consumption during refresh: <70 mW
- Standby current: <0.01 µA
- Viewing angle: >170°
Included in the set
- 7.3inch e-Paper (E) ×1
- e-Paper Driver HAT with adapter and FFC cable ×1
- PH2.0 8PIN cable ×1
- Mounting screw set (2 pcs) ×1
1197403
Data sheet
- Screen type
- E-Ink/Epaper
- Diagonal (inch)
- 7,3
- Resolution
- 800 x 480 px
- Interface
- SPI
- Touch
- No
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
