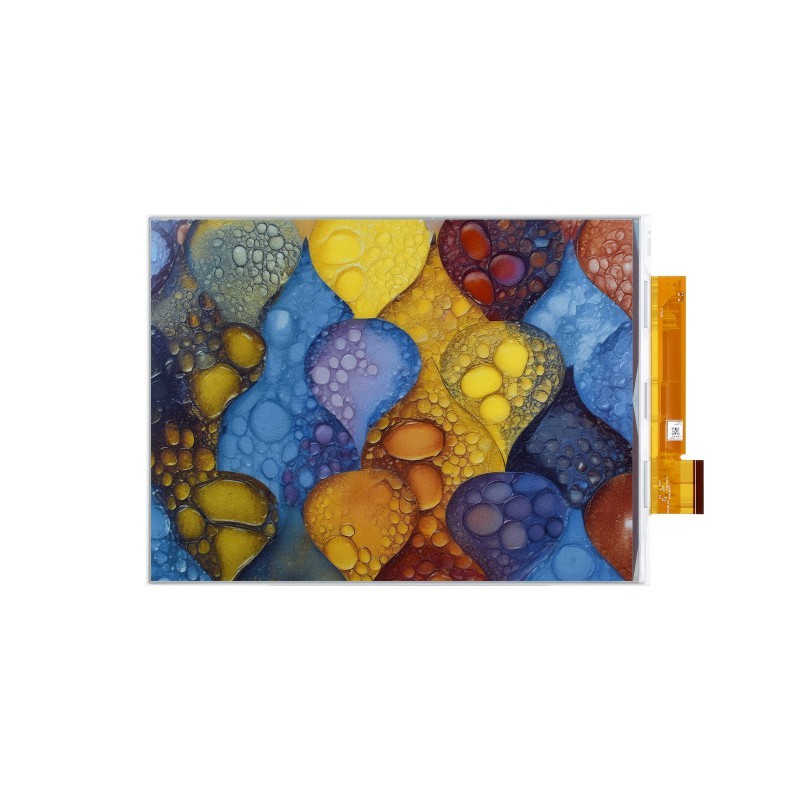

13.3″ E Ink Spectra 6 (E6) display 1600×1200 - Waveshare 29353
ID: 1197490
zł1,184.70
Tax included
zł963.17 tax excl.
Waveshare 13.3" E Ink Spectra 6 is an advanced e-paper display for applications requiring a large display area and high-quality color reproduction. The version without a controller module offers flexibility for integration with various hardware platforms using the standard SPI interface. With zero power consumption in static state and full readability in natural light, it is ideal for shelf labels, information systems, and graphic displays.
Description
The 13.3-inch e-paper display using E Ink Spectra 6 technology enables full-color content presentation with high contrast and color saturation. It offers a resolution of 1600 × 1200 pixels with very low power consumption and readability from nearly any angle, without the need for backlighting. The raw version is intended for integration with an external controller via SPI interface.
Specifications
- Diagonal: 13.3 inches
- Resolution: 1600 × 1200 pixels
- Display technology: E Ink Spectra 6 (full-color e-paper)
- Colors: full palette generated from three primary colors (red, yellow, blue)
- Grayscale: 2 levels
- Viewing angle: >170°
- Interface: 3-wire SPI / 4-wire SPI
- Full refresh time: 19 s
- Power consumption during refresh: <0.5 W
- Standby current: <0.01 μA
- Active area: 270.40 × 202.80 mm
- External dimensions: 284.70 × 208.80 × 0.85 mm
- Pixel pitch: 0.169 × 0.169 mm
- Supply voltage: 3.3 V
1197490
Data sheet
- Screen type
- E-Ink/Epaper
- Diagonal (inch)
- 13,3
- Resolution
- 1600 x 1200 px
- Interface
- SPI
- Touch
- No
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
