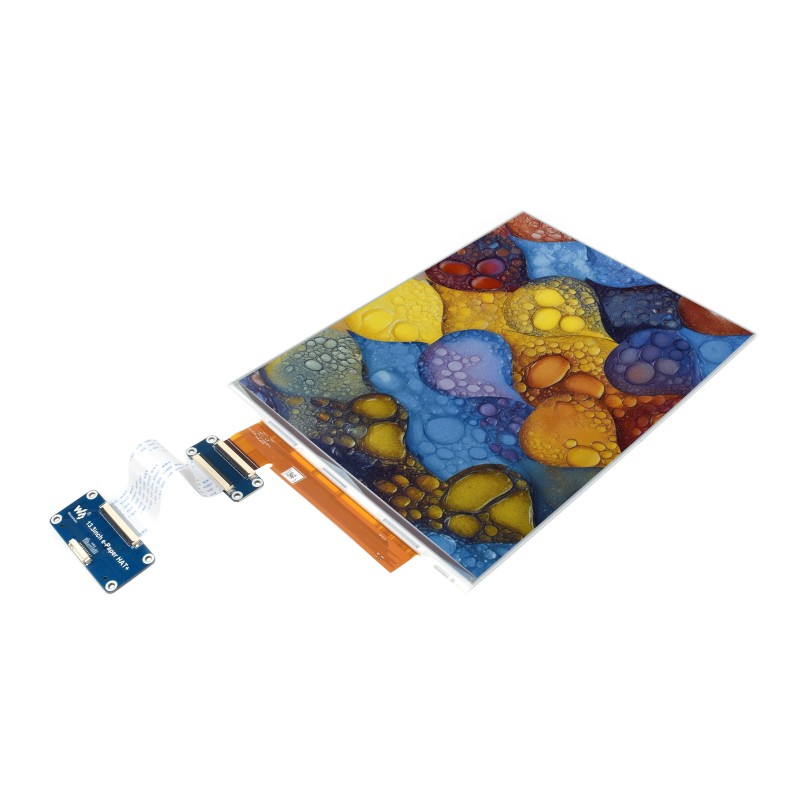

E Ink Spectra 6 (E6) 13.3″ display module 1600×1200 with Raspberry Pi HAT - Waveshare 29355
ID: 1197491
zł1,222.64
Tax included
zł994.02 tax excl.
Waveshare 13.3" e-paper display with E Ink Spectra 6 technology and HAT+ module is an advanced tool for presenting graphics and texts in full color with minimal power consumption. It supports six base colors, allowing for highly saturated images. Thanks to compatibility with popular development platforms, it is suitable for applications such as dynamic shelf labels, equipment tags, or digital posters.
Description
The 13.3-inch e-paper display with E Ink Spectra 6 (E6) technology provides full-color content presentation at a resolution of 1600×1200 pixels. With the included HAT+ module and SPI interface, it can be easily integrated with boards such as Raspberry Pi, ESP32, STM32, or Arduino. The E Ink microcell technology ensures high image quality, accurate color reproduction, ultra-low power consumption, and readability in natural light.
Specifications
- Diagonal: 13.3 inches
- Resolution: 1600 × 1200 pixels
- Display technology: E Ink Spectra 6 (full-color e-paper)
- Colors: red, yellow, blue, with dithering to full palette
- Viewing angle: >170°
- Communication interface: SPI (3-wire/4-wire)
- Full refresh time: 19 s
- Power consumption during refresh: <0.5 W
- Standby current: <0.01 μA
- Pixel pitch: 0.169 × 0.169 mm
- Display dimensions: 270.40 × 202.80 mm
- External dimensions (panel): 284.70 × 208.80 × 0.85 mm
- Operating voltage: 3.3 V (panel), 3.3 V / 5 V (with HAT)
- Compatibility: Raspberry Pi / Arduino / ESP32 / STM32
- HAT+ compatible (Raspberry Pi 40-pin GPIO)
Included in the set
- 13.3inch e-Paper HAT+ (E) ×1
- MX1.25 10PIN cable ×1
- Mounting screw set ×1
1197491
Data sheet
- Screen type
- E-Ink/Epaper
- Diagonal (inch)
- 13,3
- Resolution
- 1600 x 1200 px
- Interface
- SPI
- Touch
- No
