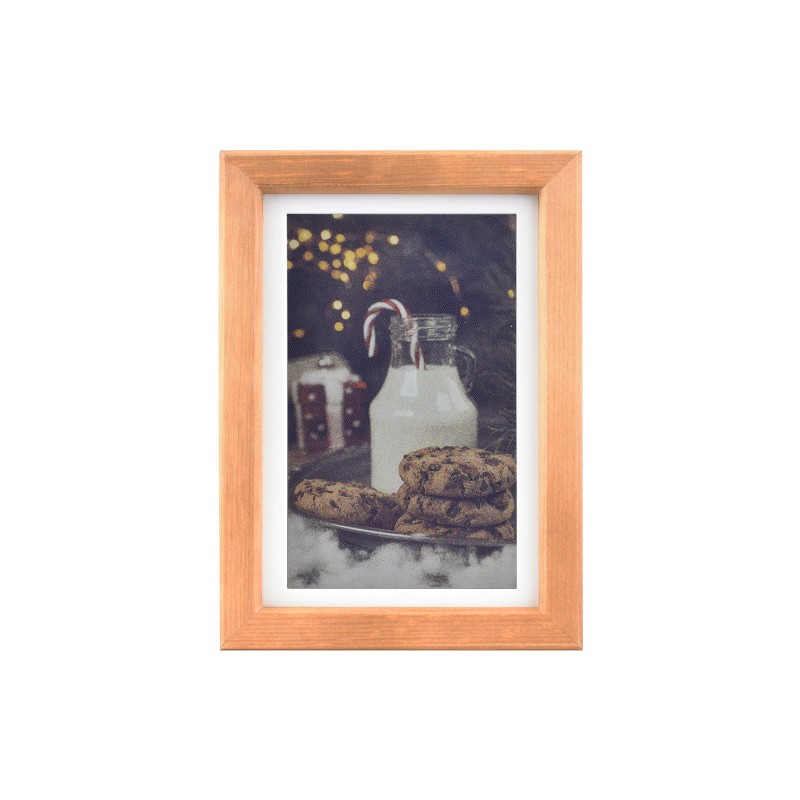

PhotoPainter (B) – 7-color 800x480 display in wooden frame - Waveshare 30315
ID: 1197677
zł406.31
Tax included
zł330.33 tax excl.
PhotoPainter (B) with a 7.3" e-paper display using E6 Full Color technology is a modern, energy-efficient electronic frame with rich functionality and aesthetic design. Thanks to programmable features, built-in memory support, RTC, and battery power, it serves both as a personal graphic display and a digital frame with content scheduling functionality. An ideal choice for office interiors, galleries, or as a designer décor element.
Description
The 7.3-inch e-paper display from the PhotoPainter (B) series with E Ink Spectra 6 (E6) technology is a full-color screen enclosed in an elegant solid wood frame. It enables the display of images with high color saturation and contrast while maintaining ultra-low power consumption. Thanks to passive E Ink technology, the image remains visible without power. Built-in features such as RTC, auto power-off, lithium battery power supply, and TF card support make the device ready for standalone operation. Ideal for use as a digital photo frame, calendar, quote gallery, or advertising graphic display.
Specifications
- Display size: 7.3"
- Resolution: 800 × 480 px
- Colors: full color (E Ink Spectra 6 technology)
- Viewing angle: >170°
- Display type: e-paper, passive, no backlight
- Image retention: visible without power
- Power supply: connector for 3.7 V Li-Ion battery (optional), RTC connector (optional)
- Interface: USB Type-C, TF slot, BOOT/RUN buttons
- Main chip: RP2350A (dual-core, up to 150 MHz)
- Memory: 16 MB NOR Flash (W25Q128JVSIQ)
- Charging controller: ETA6098
- DC-DC converter: MP28164 (buck-boost)
- Additional features: automatic shutdown, image change button, RTC clock, status indicators
- External dimensions: [to be completed from manufacturer’s source]
- Usage modes: freestanding (stand) or wall-mounted (bracket)
Included in the set
- PhotoPainter (B) display ×1
- USB Type-A to Type-C cable (~1 m) ×1
- 16 GB microSD card ×1
- Wall mount (2 pcs, 1 pre-installed) ×1
- Case opening tool ×1
1197677
Data sheet
- Screen type
- E-Ink/Epaper
- Diagonal (inch)
- 7,3
- Resolution
- 800 x 480 px
- Interface
- USB typ C
- Touch
- No
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
