Enclosure for RDK X3 kit with built-in heatsink - Waveshare 28743
ID: 1197440
5902186303874
zł59.35
Tax included
zł48.25 tax excl.

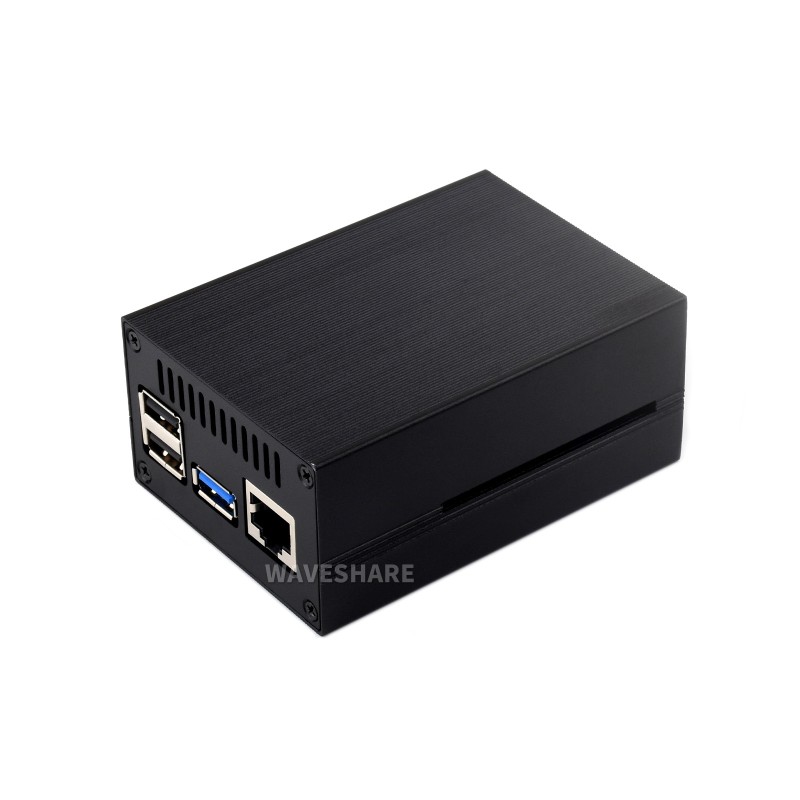

Aluminum cooling case RDK-Case-A for the RDK X3 kit provides effective cooling thanks to the combination of a multi-fin heatsink and an active fan. The lightweight aluminum alloy construction protects the electronics and facilitates assembly, while offering improved operating conditions for high-power systems. Designed for applications requiring stable operation of the RDK X3 kit under increased thermal load.
Description
Cooling case made of aluminum, designed for the RDK X3 kit, equipped with an integrated heatsink with multilayer fins and a fan providing active heat dissipation. The finned structure increases the surface area in contact with air, which, combined with active airflow, improves the cooling performance of components.
The case also serves as protection for the electronics, while offering access to the board’s connectors and ports. Assembly is done by screwing the module to the bottom part of the case, then closing the whole unit with side panels and a top cover. The design is precisely adapted to fit the RDK X3 board.
Properties
- Compatibility: RDK X3
- Material: aluminum alloy
- Cooling type: active
- Cooling elements: integrated finned heatsink, fan
- Structure: bottom case, side panels, top cover
- Dimensions: 90.5×64×40 mm
Included
- Aluminum cooling case RDK-Case-A x1
- Integrated heatsink with fan x1
- Set of mounting screws x1
- Plastic spacer x1
1197440
Data sheet
- Colour
- Black
- Materiał
- Aluminum
- Hermetyczna
- Nie
- Brass bushings
- Nie
- Tightness class
- brak
- Strength class
- none
- Length
- 90,5 mm
- Width
- 64 mm
- Height
- 40 mm
- Housing type
- Specialist
- Flammability class
- none
