Waterproof Junction Box Kit – IP68 junction box for S2100 data logger and other 12V devices - Seeed Studio 114992988
search
  • Waterproof Junction Box Kit – IP68 junction box for S2100 data logger and other 12V devices - Seeed Studio 114992988
ID: 1200515
5902186318335
zł49.32
Tax included

zł40.10 tax excl.

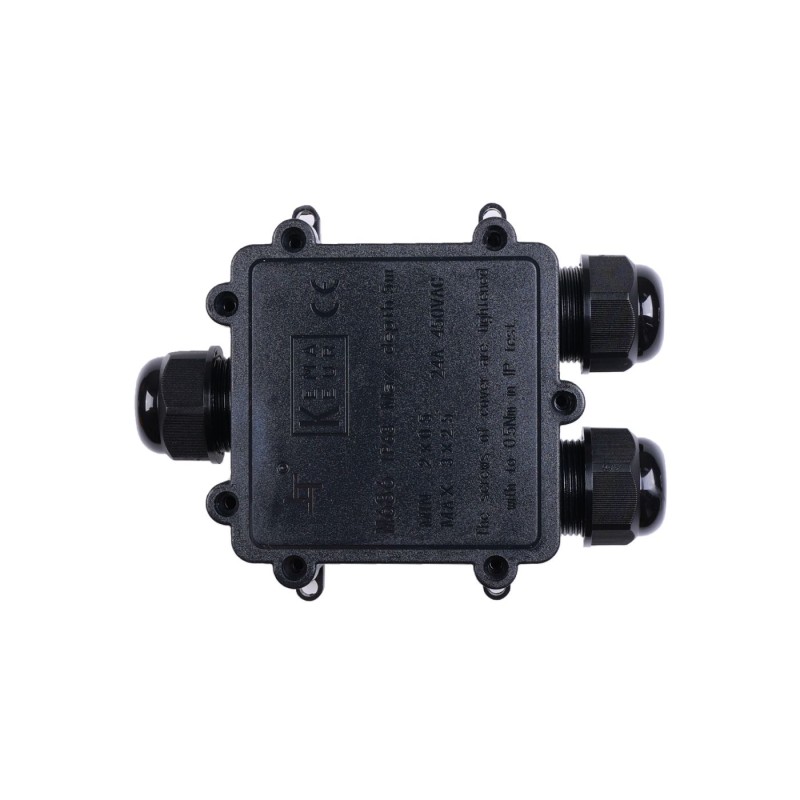

Waterproof Junction Box Kit Seeed Studio 114992988 is a sealed IP68 junction box for easy and safe connection of 12 V power supply, e.g. to data loggers including the S2100 model. Designed for outdoor installations in industrial and environmental applications, it provides protection against moisture, dust, and mechanical damage.

4 weeks
On request
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

The Waterproof Junction Box Kit is designed for safely connecting the S2100 data logger to an external 12 V power source without the need for soldering, cutting wires, or using additional tools. The plastic housing with IP68 protection ensures resistance against dust and prolonged immersion in water. The kit can be installed in either horizontal or vertical orientation as an external junction box.

The kit includes all components necessary for installation, including a screwdriver, sealing tape, M12 cable, and a set of screws. It is intended for cables with a diameter of 4–8 mm and a cross-section of 0.5–2.5 mm². It can be used not only with the S2100 data logger but also in other systems requiring safe external power or signal connections.

Properties

  • IP68 protection rating (tested 10 m for 150 hours)
  • PC plastic housing, brass terminals
  • Up to 12 cable connections
  • Compatible with cables 4–8 mm in diameter
  • Supported wire cross-section: 0.5–2.5 mm²
  • Operating temperature up to 105°C
  • Installation without cutting or soldering wires
  • Dimensions: 130.14 × 80.5 × 35.3 mm
  • Certifications: KEMA, ENEC, CE, UKCA, CB, SAA, RoHS

Included in the set

  • Junction box housing
  • M12 cable
  • 8 self-tapping screws
  • Screwdriver
  • Sealing tape
  • 2 terminal connectors
1200515

Data sheet

Colour
Black
Materiał
PC
Hermetyczna
Tak
Brass bushings
Nie
Tightness class
IP68
Strength class
none
Length
130,14 mm
Width
80,5 mm
Height
35,3 mm
Housing type
Specialist
Flammability class
none

Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20

Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
