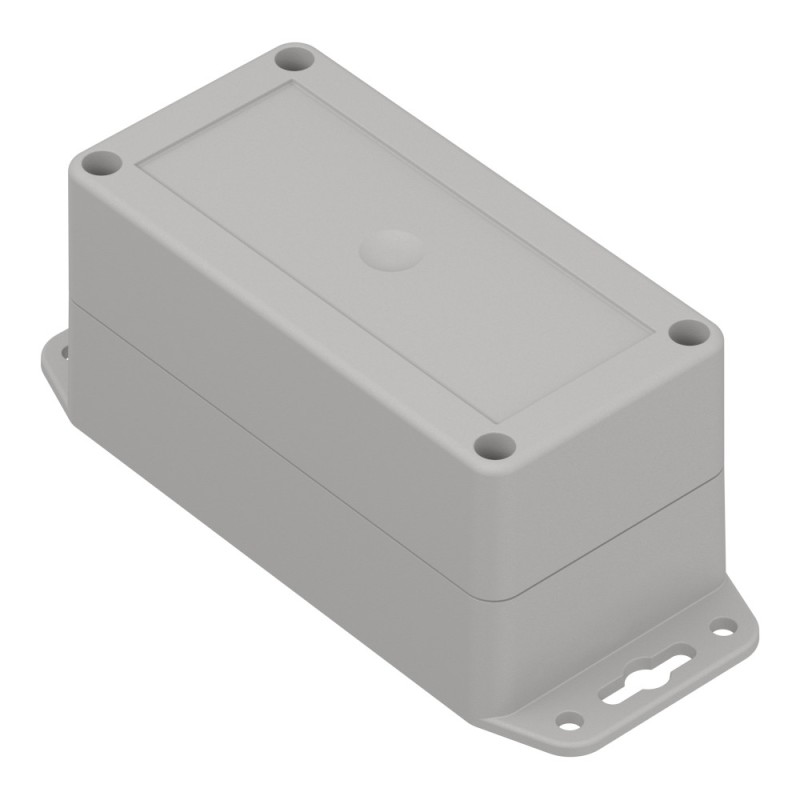

ZP150.50.60UJH TM PC - Hermetic enclosure, light gray with mounting ears and brass inserts, Kradex
ID: 1200802
zł34.92
Tax included
zł28.39 tax excl.
ZP150.50.60UJH TM PC enclosure made of durable polycarbonate offers full protection (IP68) and impact resistance (IK08), making it suitable for industrial, field, and outdoor installations. The design with a gasket and brass inserts allows stable and sealed mounting of internal components.
Description
The ZP150.50.60UJH TM hermetic enclosure made of polycarbonate (PC) is characterized by high resistance to mechanical damage and harsh environmental conditions. With an IP68 protection rating and IK08 impact resistance, it provides protection against dust, moisture, and impacts. The light gray design with mounting ears allows quick and secure attachment to surfaces. The version with a gasket and brass inserts in the mounting posts enables stable mounting of a DIN rail and other installation components. The cover is fastened with four captive M3/17/10 screws, ensuring a durable and sealed closure.
Properties
- Type: Full with mounting ears
- Variant: Hermetic with brass inserts
- Material: Polycarbonate (PC)
- Color: Light gray
- Length: 150.1 mm
- Width: 50.0 mm
- Height: 60.0 mm
- Protection rating: IP68
- Mechanical resistance rating: IK08
- Mounting posts for DIN rail
- Option to mount additional accessories
Included in the set
- 4 × M3/17/10 screws
1200802
Data sheet
- Colour
- Jasnoszary
- Materiał
- PC
- Hermetyczna
- Tak
- Brass bushings
- Tak
- Tightness class
- IP68
- Strength class
- IK08
- Length
- 150,1 mm
- Width
- 50 mm
- Height
- 60 mm
- Housing type
- Universal
- Flammability class
- none
Manufacturer Kradex Sp. z o.o. ul. Minerska 4 04-506 Warszawa Poland kradex@kradex.com.pl
Responsible person Kradex Sp. z o.o. ul. Minerska 4 04-506 Warszawa Poland kradex@kradex.com.pl
