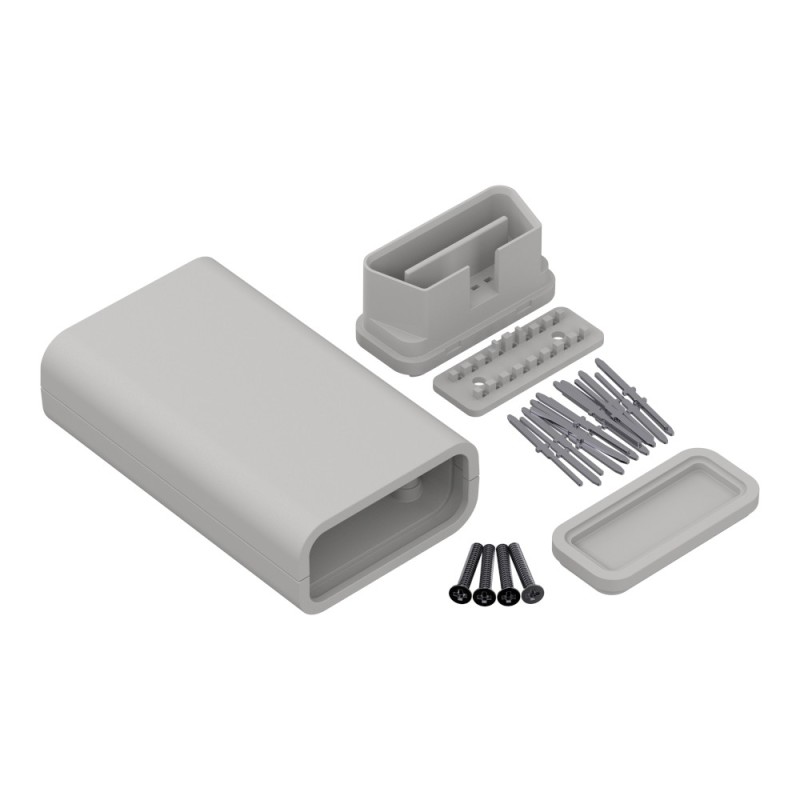

ZOBD SET J 24V – OBD2 24V set with enclosure and cap, ABS, light gray Kradex
ID: 1200865
zł17.04
Tax included
zł13.85 tax excl.
ZOBD SET J 24V is a Kradex set containing an OBD2 plug, an enclosure, and a cap in the 24 V version, made of light gray ABS material, designed for service and diagnostic applications.
Description
The ZOBD SET J 24V kit is intended for diagnostic applications in vehicle installations with 24 V voltage. It includes a light gray ZOBD ABS enclosure, a full ZOBD CAP cover, and a 16-pin OBD2 ZOBD Cap Plug. The components made of ABS material ensure durability and aesthetic appearance. The kit allows quick assembly of a functional OBD2 connector for electronic and industrial devices.
Features
- Type: solid
- Variant: 24V
- Material: ABS
- Color: light gray
- Length: 80.0 mm
- Width: 47.9 mm
- Height: 23.5 mm
Included
- Screw 2.5 × 16 mm – 4 pcs.
1200865
Data sheet
- Colour
- Jasnoszary
- Materiał
- ABS
- Hermetyczna
- Nie
- Brass bushings
- Nie
- Tightness class
- brak
- Strength class
- none
- Length
- 80 mm
- Width
- 47,9 mm
- Height
- 23,5 mm
- Housing type
- OBD
- Flammability class
- none
- ZOBD_SET.pdf (308,25 kB)
- ZOBD_SET.step (3,31 MB)
- ZOBD_SET.dwg (4,07 MB)
- ZOBD_SET_2000.dwg (6,44 MB)
- ZOBD_SET_Assembly.svg (344,84 kB)
- ZOBD_SET_Base.svg (463,82 kB)
- ZOBD_SET_Cover.svg (423,77 kB)
- ZOBD_SET_Cap.svg (345,25 kB)
- ZOBD_SET_Plug.svg (499,9 kB)
- ZOBD_SET_Plug_Pin.svg (328,35 kB)
- ZOBD_SET_Plug_Cap.svg (356,5 kB)
- ZOBD_SET_Complete_documentation.zip (6,14 MB)
- ZOBD_SET_img.zip (866,55 kB)
Manufacturer Kradex Sp. z o.o. ul. Minerska 4 04-506 Warszawa Poland kradex@kradex.com.pl
Responsible person Kradex Sp. z o.o. ul. Minerska 4 04-506 Warszawa Poland kradex@kradex.com.pl
