USR-IO4040 - expansion input/output module for USR-M100/M300
ID: 1189709
5906623482887
zł92.74
Tax included
zł75.40 tax excl.
The USR-IO4040 is an I/O expansion module designed specifically for use with the USR-M100/M300 modules. This module allows for the expansion of your system with additional digital ports, providing even greater flexibility in managing and controlling devices in industrial applications. With its robust construction and ease of integration, the USR-IO4040 is an excellent complement to the USR-M100/M300 gateway, enhancing its monitoring and control capabilities. USR-IO4040
Description
The USR-IO4040 is a versatile expansion module that enables the extension of systems based on USR-M100/M300 with additional input and output ports. With four digital input ports and four digital output ports, this module is ideal for applications requiring precise control and monitoring. The wide voltage range on the inputs and relay outputs with a maximum load of 3A make the USR-IO4040 an ideal solution for industrial applications where reliability and scalability are crucial.
Attention!

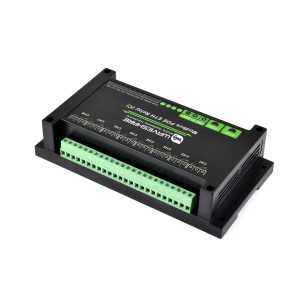

The product image shows multiple modules connected together, not just a single module!Features
- Number of Digital Input Ports (DI): 4
- Number of Digital Output Ports (DO): 4
- Voltage Range for Input Ports (DI): 9~36V
- Type of Output Ports (DO): Relay
- Maximum Load Capacity for Output Ports (DO): 3A
- Communication: RS485
- Power Supply: DC 12-24V
- Compatibility: USR-M100/M300, USR- IO Modules
- Expandability: Yes, supports additional modules
1189709
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
