Ethernet FeatherWing - Ethernet module for Feather boards
ID: 562597
5906623429349
zł106.85
Tax included
zł86.87 tax excl.
Ethernet module with WIZ5500 chip and RJ45 connector. It allows you to connect the Feather series boards to a wired network. Adafruit 3201
Description
Ethernet module with W5500 chip and RJ45 connector. It allows you to connect the Feather boards to a wired network. It works with the dedicated Ethernet2 library for Arduino and allows you to run an Ethernet client. It is supported by every hub and switch. It communicates via the SPI interface, has a built-in TCP/IP stack, and supports protocols such as TCP / IP, UDP, ICMP, ARP, IGMP, PPPoE. Full documentation with examples of use is available on the product page.
Features
- Built-in hardware TCPIP protocol stack
- Support for TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocols
- Integrated data link layer, physical layer
- Wake-up support at power off
- SPI interface
- Internal 32KB send and receive buffer
- Built-in 10BaseT/100BaseTX Ethernet (PHY) physical layer
- Support for auto-negotiation
- 3.3V or 5V working voltage
- LED status indicator
- Dimensions: 59.2 x 22.8 x 17.5 mm
Kit contains
- Ethernet FeatherWing module
- 2 x male goldpin straight 16-pin connector
562597
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
At the Feather M0\'s heart is an ATSAMD21G18 ARM Cortex M0 processor, clocked at 48 MHz and at 3.3V logic, the same one used in the new Arduino Zero. This chip has a whopping 256K of FLASH (8x more than the Atmega328 or 32u4) and 32K of RAM (16x as much). Adafruit 2796
zł137.85
24h
Available quantity: 1
Available
Low-power, 2.4GHz spectrum wireless protocol that you can use with iOS without needing special certification. Supported by all modern smart phones - excellent for use in portable projects that will make use of an iOS or Android phone or tablet; it also is supported in Mac OS X and Windows 8+. Adafruit 2995
zł155.48
Delivery date unknown
No product available!
Adafruit Feather M0 WiFi with uFL - ATSAMD21 + ATWINC1500 is a development board with a 32-bit ATSAMD21G18 microcontroller based on Cortex-M0 core. The board also has an ATWINC1500 module that provides WiFi connectivity. Adafruit 3061
zł206.07
Delivery date unknown
No product available!
Development board with a 32-bit ATSAMD21G18 microcontroller based on Cortex-M0 core. The module also has an RFM69HCW chip that allows wireless communication in the 433 MHz band. Adafruit 3177
zł147.12
Delivery date unknown
No product available!
Ethernet patch cord UTP 5E, 2 m long. Red color, with RJ45 connectors. Lanberg Z22990
zł3.00
24h
Available quantity: 22
Available
Other products in the same category (16)
UART - Ethernet converter enabling two-way communication between devices equipped with UART TTL ports and the Ethernet network. It is visible in the system as a virtual COM port and configured via the website. USR-K7
zł72.25
24h
Available quantity: 1
Available
UART - Ethernet converter for bi-directional communication between devices equipped with UART TTL ports and Ethernet. It has a small footprint and SMT edge connectors so it can be easily integrated into a larger project. Waveshare UART TO ETH (B)
zł46.89
24h
Available quantity: 43
Available
UART - Ethernet converter enabling two-way communication between devices equipped with UART TTL ports and the Ethernet network. It is visible in the system as a virtual COM port and configured via the website. USR-K3
zł74.06
24h
Available quantity: 8
Available
IoT gateway module dedicated to industrial applications. It allows you to connect and manage different devices and systems through different communication protocols. USR-M100-ETH
zł232.16
4 weeks
No product available!
The Tibbo RJ203+EM1206-1024K-01 module is a versatile solution for integrating network communication in IoT applications, supporting Ethernet and WiFi. Equipped with 1024 KB flash memory and 2 serial ports, it supports multiple network protocols, offering easy assembly thanks to the THT design.
zł285.35
24h
Available quantity: 2
Available
Serial port to Ethernet converter module based on the ESP32 series from Wireless-Tag. It integrates an optimized TCP/IP protocol stack and is characterized by extremely high performance, stability, versatility and reliability. WT32-ETH01-PIN
zł99.00
24h
Available quantity: 5
Available
Serial port to Ethernet converter module based on the ESP32 series from Wireless-Tag. It integrates an optimized TCP/IP protocol stack and is characterized by extremely high performance, stability, versatility and reliability. WT32-ETH01
zł89.00
24h
Available quantity: 9
Available
The USR-IO0440 is an additional input/output module specifically designed to work with USR-M100 and USR-M300 modules. This module allows the system to be expanded with additional analog and digital ports, providing even greater flexibility in managing and controlling devices in industrial applications. With its robust construction and ease of integration, the USR-IO0440 is an excellent complement to the USR-M100 and USR-M300 gateways, enhancing their monitoring and control capabilities. USR-IO0440
zł92.74
24h
Available quantity: 4
Available
The USR-IO8000 is an additional input module specifically designed to work with the USR-M100 and USR-M300 modules. This module allows the system to be expanded with additional digital input ports, providing even greater flexibility in managing and controlling devices in industrial applications. With its robust construction and ease of integration, the USR-IO8000 is an excellent complement to the USR-M100 and USR-M300 gateways, enhancing their monitoring and control capabilities. USR-IO8000
zł87.82
24h
Available quantity: 10
Available
EM510 MiniMo is a programmable IoT module with ultra-compact dimensions, equipped with a single UART, Ethernet, and optional Wi-Fi/Bluetooth connectivity. EM510-00 Tibbo Technology
zł179.90
24h
Available quantity: 1
Available
The USR-IO4040 is an I/O expansion module designed specifically for use with the USR-M100/M300 modules. This module allows for the expansion of your system with additional digital ports, providing even greater flexibility in managing and controlling devices in industrial applications. With its robust construction and ease of integration, the USR-IO4040 is an excellent complement to the USR-M100/M300 gateway, enhancing its monitoring and control capabilities. USR-IO4040
zł84.11
24h
Available quantity: 2
Available

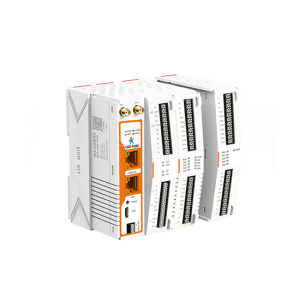

The USR-M300 is a versatile edge IoT gateway that combines powerful edge computing capabilities with the flexibility of modular I/O expansion. With high performance, extensive connectivity options, and support for industrial protocols such as Modbus RTU/TCP and OPC UA, this device is an ideal solution for industrial IoT applications, ensuring data security and easy integration with cloud platforms. USR-M300-GL
