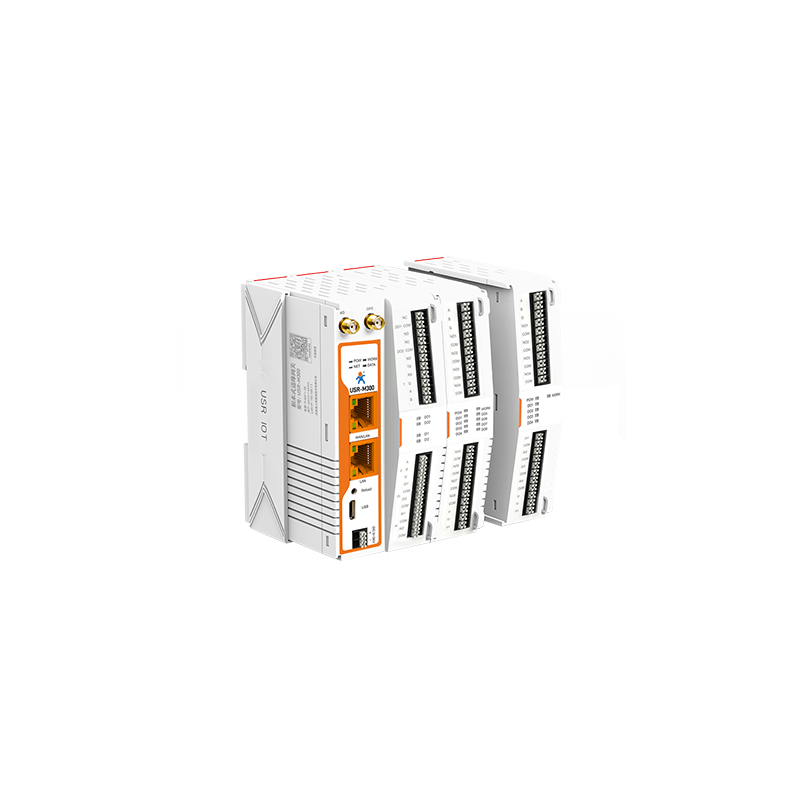

USR-M300-EW – Industrial IoT Edge Gateway with Ethernet and 2.4/5.8 GHz WiFi, with I/O support, MQTT, Modbus, VPN
ID: 1200616
zł599.80
Tax included
zł487.64 tax excl.
USR-M300-EW is an industrial IoT gateway with 2.4/5.8 GHz WiFi and Ethernet, designed for collecting and transmitting data from serial and I/O devices. It supports MQTT, Modbus RTU/TCP, VPN, and cloud integration. The compact design, flexible expansion capabilities, and advanced local control functions make the device ideal for industrial applications, automation, and distributed systems.
Description
USR-M300-EW is an industrial IoT Edge Gateway with dual-band WiFi connectivity (2.4 GHz and 5.8 GHz) and Ethernet interface. Designed for remote data collection, processing, and transmission to the cloud, it supports Modbus RTU/TCP, MQTT, SNMP, and VPN (PPTP, L2TP, OpenVPN) protocols. The device enables configuration of alarm conditions, local processing (edge computing), and control based on I/O signal logic.
The modular design of the gateway allows expansion with additional I/O modules. The device operates on a Linux system, equipped with a dual-core 1.2 GHz processor and powered by 9–36 V DC. It supports cloud platforms such as AWS, Azure, Alibaba Cloud, ThingsBoard, and PUSR Cloud. Installation is possible on a DIN rail or wall-mounted. The ABS enclosure meets the IP30 protection rating.
Properties
- Processor: dual-core, 1.2 GHz, Linux
- Connectivity: WiFi 2.4 GHz / 5.8 GHz (IEEE 802.11a/b/g/n/ac), Ethernet (2 × 10/100 Mbps RJ-45)
- Serial ports: 1 × RS232/485, 1 × RS485
- I/O: 2 × DI, 2 × DO (relay), 2 × AI (4–20 mA)
- Power supply: DC 9–36 V
- DI inputs: 0–2 V (low), 9–36 V (high)
- DO outputs: up to 10 A / 28 V DC and 5 A / 250 V AC
- EMC standards: IEC61000-4-2/4/5 level 3
- Modbus protocol: RTU/TCP
- Network protocols: TCP, UDP, MQTT, HTTP, SNMP, DNS, DHCP, VPN
- Programming: Node-RED support
- Software: web interface, Windows tool, firmware update
- Operating temperature: –25°C to +75°C
- Dimensions: 79.6 × 58 × 110 mm
- Enclosure: ABS, IP30
- Mounting: DIN / wall
- Certifications: CE, FCC, RoHS
1200616
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
