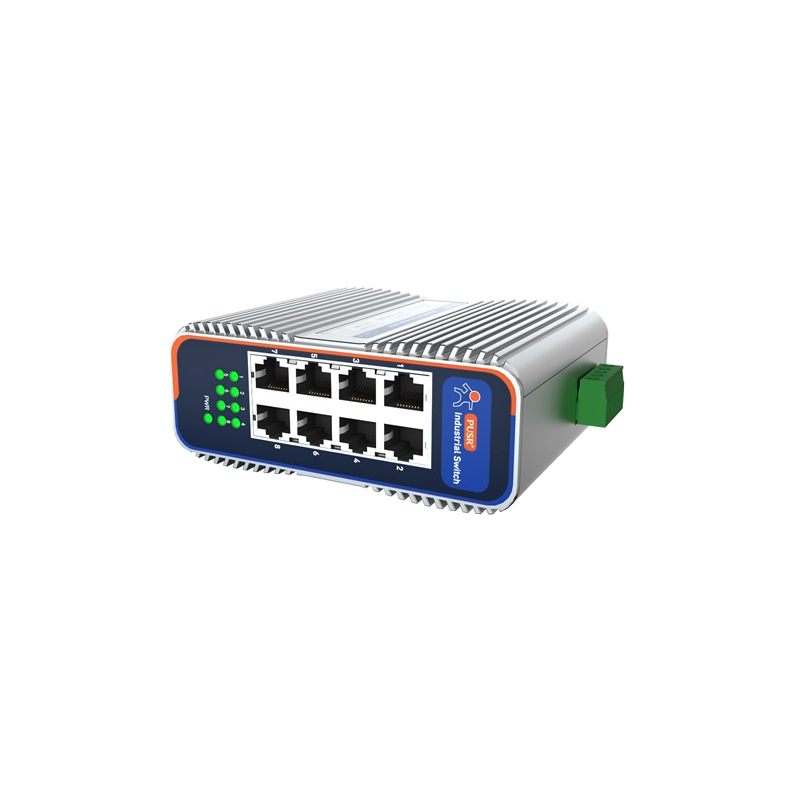

USR-ISF1008 - Industrial 8-port Ethernet switch 10/100 Mbps
ID: 1200624
zł109.63
Tax included
zł89.13 tax excl.
The industrial switch USR-ISF1008 offers 8 Fast Ethernet ports for reliable communication in automation and industrial environments. Its compact design, resistance to environmental conditions, and wide-range power supply enable stable operation in industrial installations that require a higher number of ports.
Description
The unmanaged industrial switch USR-ISF1008 is designed for use in automation, monitoring, and IoT networks, equipped with 8 × 10/100 Mbps RJ45 ports. Compliance with IEEE 802.3 and 802.3u standards enables integration with network devices from various manufacturers. Store-and-forward operation minimizes latency and ensures reliable data transmission in industrial environments.
Power supply ranging from 9.6 V to 60 V DC with reverse polarity and overload protection ensures stable operation in harsh conditions. The aluminum enclosure with IP40 protection rating, fanless design, and resistance to temperatures from -40°C to +85°C allow reliable performance in control cabinets and industrial installations. Mounting on a standard DIN rail enables quick and secure integration.
Properties
- 8 × 10/100 Mbps RJ45 ports, auto MDI/MDIX
- Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3x standards
- Backplane bandwidth: 1.6 Gbps
- Packet buffer: 768 Kbit
- MAC addresses: 2K
- Power supply: 9.6–60 V DC, 5-pin connector
- Power consumption: <5 W
- Protection against reverse polarity and overload
- Aluminum enclosure IP40, fanless design
- Mounting: DIN rail or desktop
- Dimensions: 118 × 96 × 47.5 mm
- Weight: 430 g
- Operating temperature: -40°C to +85°C
- EMC resistance: ESD ±8 kV (air), ±6 kV (contact), EFT, surge (Level 3)
- Certification: CE
