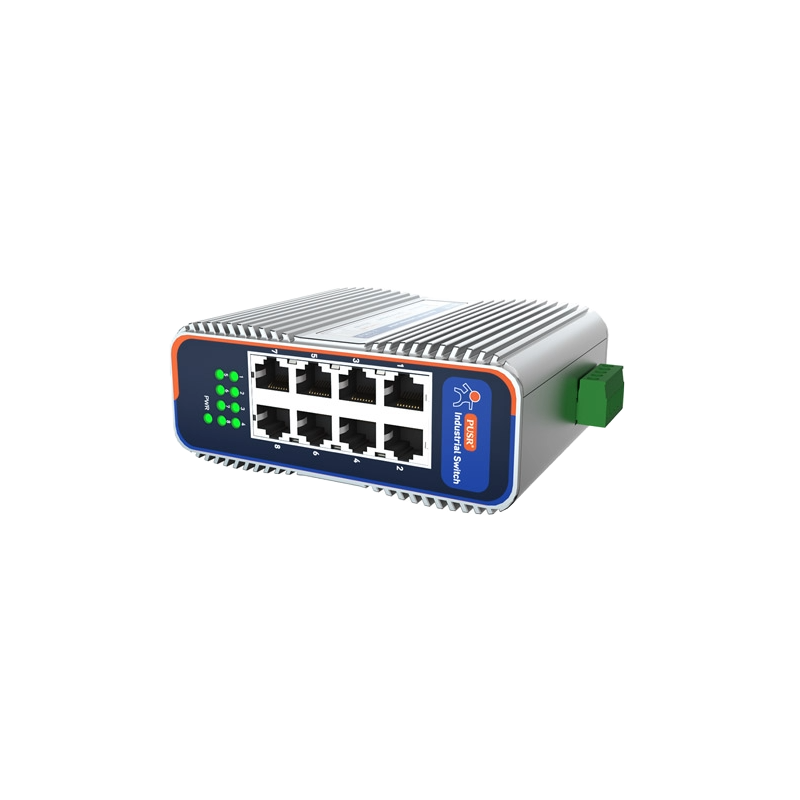

USR-ISG1008 - Industrial Gigabit Ethernet switch 8-port 10/100/1000 Mbps
ID: 1200625
zł149.21
Tax included
zł121.31 tax excl.
The industrial switch USR-ISG1008 provides 8 Gigabit Ethernet ports and high throughput for applications requiring fast data transmission. It is suitable for automation, monitoring and vision systems environments, where reliability, durability and resistance to industrial conditions are crucial.
Description
The unmanaged industrial switch USR-ISG1008 with 8 × 10/100/1000 Mbps RJ45 ports is designed for building fast, interference-resistant industrial networks. Supporting IEEE 802.3, 802.3u, 802.3ab, and 802.3x standards, it enables the transmission of large amounts of data while maintaining high reliability. The backplane bandwidth of 16 Gbps, 1 Mbit buffer, and MAC address table with 4K entries provide smooth real-time data transmission, e.g., in vision systems and automation.
Power supply over a wide voltage range of 9.6–60 V DC with reverse polarity and overload protection ensures stable operation in varying power conditions. The aluminum enclosure with IP40 protection rating and resistance to extreme temperatures enable reliable operation in industrial environments. DIN rail mounting facilitates installation in control cabinets.
Properties
- 8 × 10/100/1000 Mbps RJ45 ports, auto MDI/MDIX
- Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x standards
- Backplane bandwidth: 16 Gbps
- Packet buffer: 1 Mbit
- MAC addresses: 4K
- Power supply: 9.6–60 V DC, 5-pin connector
- Power consumption: <5 W
- Protection against reverse polarity and overload
- Aluminum enclosure IP40, fanless design
- Mounting: DIN rail or desktop
- Dimensions: 118 × 96 × 47.5 mm
- Weight: 430 gOperating temperature: -40°C to +85°C
- EMC resistance: ESD ±8 kV (air), ±6 kV (contact), EFT, surge (Level 3)
- Certification: CE
