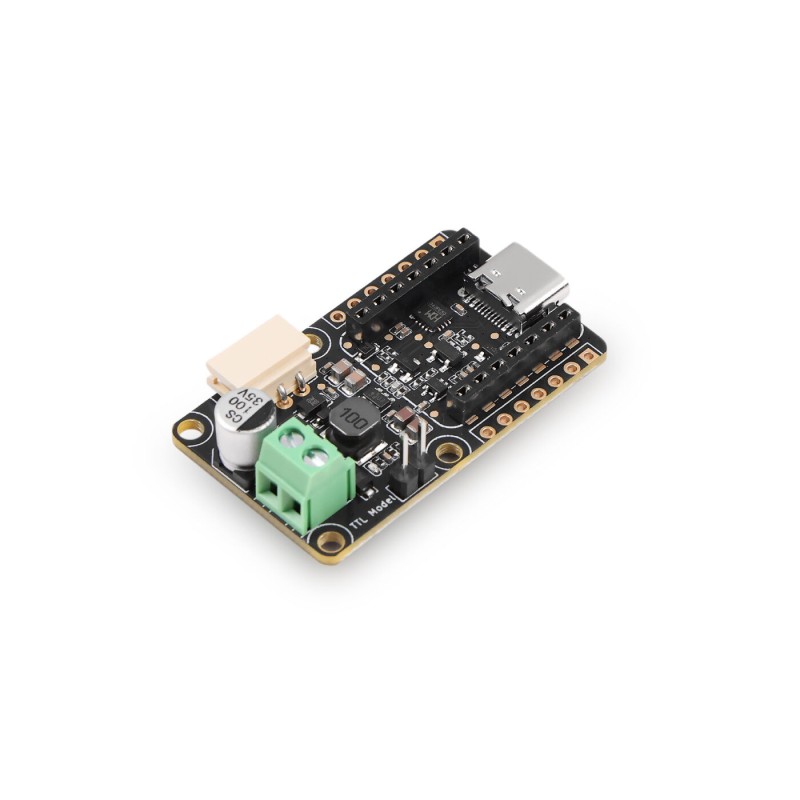

Bus Servo Driver Board - servo driver module for XIAO
ID: 1198709
5902186306349
zł22.91
Tax included
zł18.63 tax excl.
Advanced servo controller with UART and USB communication, enabling precise control of multiple servos simultaneously. Compact design and stable power supply via screw connector make the device ideal for integration in robots and automation systems with limited space. Cooperation with the Seeed Studio XIAO ecosystem and the use of serial bus instead of traditional PWM provide efficient, scalable and reliable control in educational, research and DIY projects. Seeed Studio 105990190
Description
The Bus Servo Driver Board is an advanced servo controller supporting the ST/SC series with serial bus communication. Equipped with dual control methods—UART and USB—it allows flexible and precise management of multiple servos simultaneously. Featuring integrated interfaces and professional power supply via a 2P 3.5 mm screw terminal, it ensures stable operation even in complex robotic projects. Its compact size enables easy integration into space-constrained devices such as robot arms or multi-legged robots.
The controller is compatible with the Seeed Studio XIAO ecosystem, greatly facilitating rapid prototyping and system expansion. Compared to traditional PWM control, the use of serial bus technology allows for more efficient communication and scalability.
This device is suitable for educational, research, and DIY projects where precision, ease of control, and reliability are critical. Thanks to selectable control modes, you can conveniently debug systems or integrate the controller into complex automation setups. It is an ideal tool for anyone building advanced robots and multi-servo systems.
Features
- Supported servos: ST/SC series with serial bus interface
- Number of servos controlled: multiple servos
- Control interfaces: UART and USB
- Communication protocol: serial bus compatible with ST/SC servos
- Power supply voltage: 5-12 V DC (servo dependent)
- Power connector: 2P 3.5 mm screw terminal
- Servo connector: 2.5 mm 3P terminal
- Mode switching: UART/USB jumper
- Operating temperature: 10°C to 60°C
- Dimensions: 42 mm x 25 mm
- Weight: 15 g
