An AI vision camera based on the Grove Vision AI V2 module, XIAO ESP32-C3 controller, and 5MP OV5647 sensor. The device utilizes the Himax WiseEye2 processor with an Ethos-U55 neural unit, enabling local processing of AI models in real time. It supports TensorFlow, PyTorch, and SenseCraft AI, allowing for coding-free model deployment. With Wi-Fi, Home Assistant integration, and an open-source design, it's an ideal solution for smart IoT, monitoring, and automation systems. Seeed Studio 104990982

4 weeks
Awaiting delivery
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

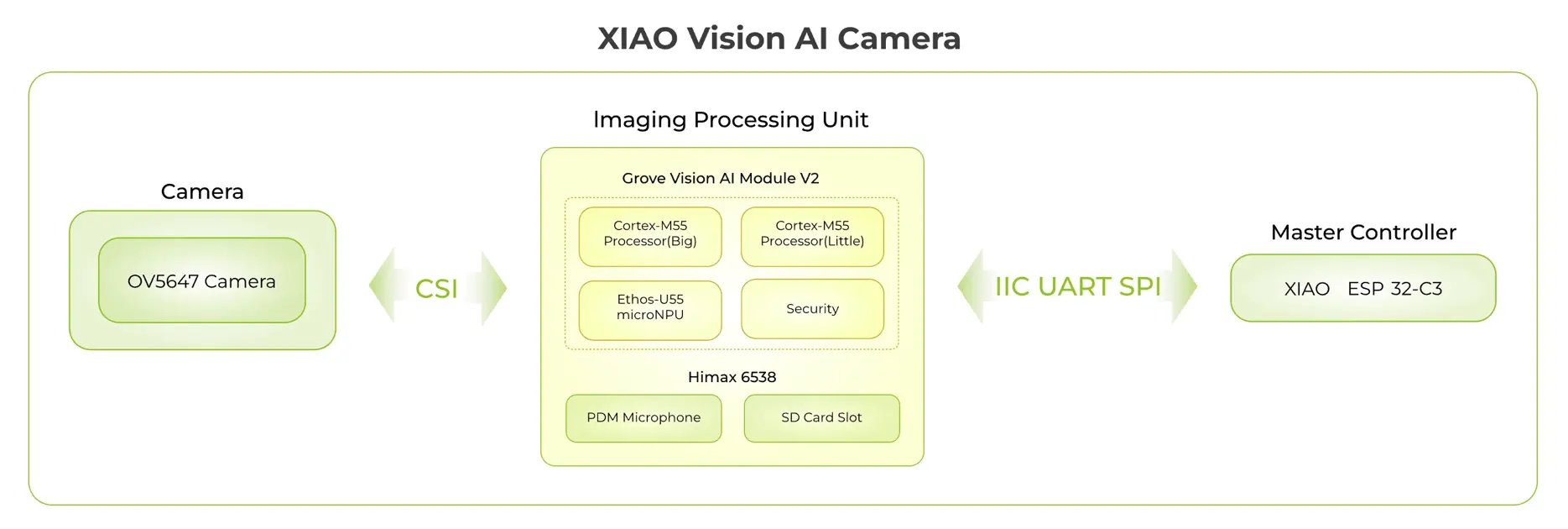

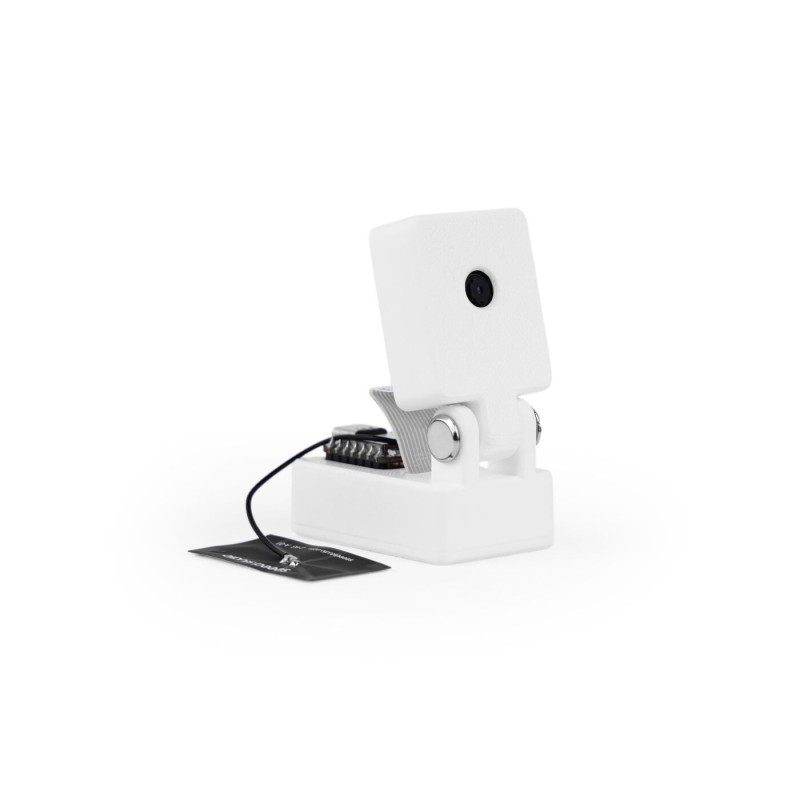

XIAO Vision AI Camera is an intelligent and compact vision solution that combines the Grove Vision AI V2 module, XIAO ESP32-C3 controller, and OV5647 camera, all enclosed in an elegant 3D-printed housing. At its core lies the powerful Himax WiseEye2 platform featuring a dual-core Arm Cortex-M55 processor and Ethos-U55 neural processing unit, enabling efficient edge AI computing directly on the device.


The camera supports popular frameworks such as TensorFlow and PyTorch, and offers full compatibility with Arduino IDE, making it an ideal tool for both beginners and advanced developers. Through the SenseCraft AI platform, models can be deployed without coding — users can choose from ready-made models (e.g., YOLO v5/v8, EfficientNet-Lite, MobileNet V1/V2) or train their own datasets, with inference results visualized in real time via a web browser. The integrated Wi-Fi module (ESP32-C3) allows wireless transmission of detection results and integration with Home Assistant, enabling the creation of smart home and industrial automation systems. The camera also supports local automation scenarios — once a model is deployed and connected to Home Assistant, actions can be triggered based on detected objects or events, such as notifications or device responses. The project is fully open-source — schematics, design files, and source codes are available, allowing customization to specific hardware needs. XIAO Vision AI Camera is an ideal solution for IoT, smart monitoring, agriculture, industry, and security projects, combining performance, flexibility, and modern design.

Features

  • Camera: OmniVision OV5647 (5 MP resolution, 2592×1944)
  • CMOS sensor: 1/4″, pixel size 1.4 µm × 1.4 µm
  • Field of view: 62°, focal length 3.4 mm (adjustable), aperture F/2.8
  • Video modes: 1080p@30fps, 720p@60fps
  • AI processor: Himax WiseEye2 HX6538 with Arm Cortex-M55 (400 MHz & 150 MHz)
  • NPU: Arm Ethos-U55 (400 MHz)
  • Memory: up to 2432 KB SRAM + 64 KB Boot ROM
  • Main controller: XIAO ESP32-C3 (Wi-Fi 2.4GHz / BLE 5.0 / RISC-V 32-bit / 160 MHz)
  • Memory: 400 KB SRAM, 4 MB Flash
  • Interfaces: CSI, I²C/UART/SPI, microSD slot (up to 25 MHz), PDM microphone
  • Power supply: 5 V via USB Type-C
  • Transmission speed: 115200 bps
  • Operating temperature: –20°C to 70°C
  • Enclosure dimensions: 31 × 49 × 32 mm
  • Enclosure material: PLA, white color, 3D-printed
  • Compatibility with TensorFlow, PyTorch, Arduino IDE, and SenseCraft AI
  • Integration with Home Assistant via ESPHome
  • Fully open-source project (hardware, software, design)
