- New

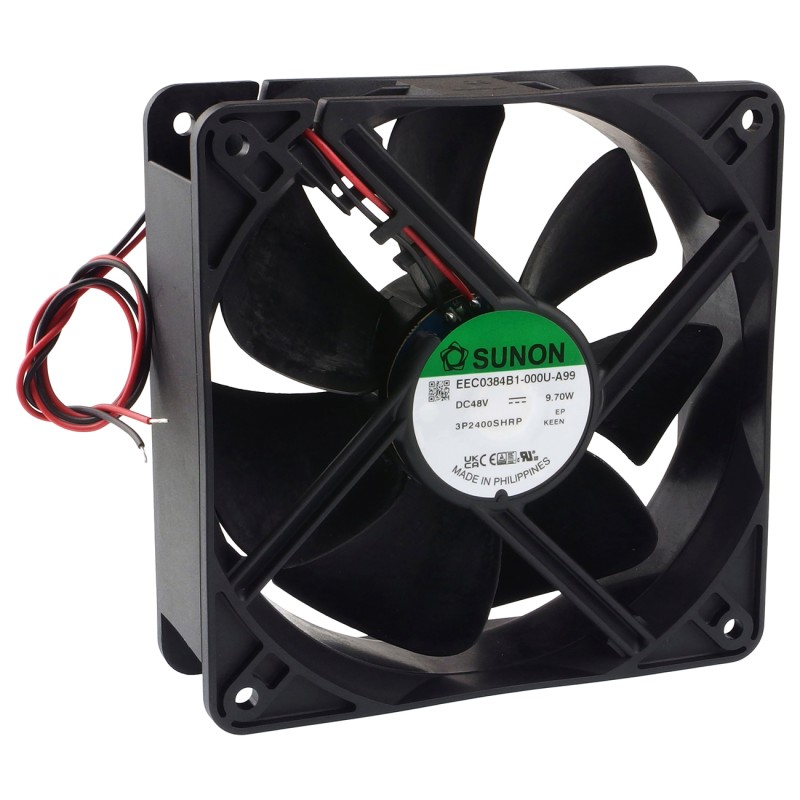

Sunon EEC0384B1-000U-A99 – DC Axial Fan 120×120×38 mm, 48 V
ID: 1198652
5902186328952
zł39.98
Tax included
zł32.50 tax excl.
Sunon EEC0384B1-000U-A99 is a 48 V DC axial fan with dimensions of 120×120×38 mm, featuring a ball bearing and high airflow of 234 m³/h. Thanks to its wide operating voltage range, low power consumption, and compliance with flammability standards, it is suitable for industrial, electronic, and automotive applications requiring reliable cooling.
Description
The Sunon EEC0384B1-000U-A99 axial fan is designed for use in systems requiring high airflow performance and reliability. With a brushless DC motor and ball bearing, it offers long service life and stable operation. It operates at 24–56 V DC (nominally 48 V DC), delivering up to 234.4 m³/h airflow at a speed of 3100 rpm. Equipped with an auto-restart function, it meets UL94V-0 and ECE R-118 flammability standards, making it suitable for industrial and automotive installations.
Properties
- Fan type: DC axial
- Dimensions: 120 × 120 × 38 mm
- Supply voltage: 24–56 V DC (nominally 48 V DC)
- Power consumption: 9.7 W
- Rated current: 0.203 A
- Rotational speed: 3100 rpm (±10%)
- Airflow: 234.4 m³/h
- Noise level: 48 dBA
- Static pressure: 9.14 mm H₂O
- Bearing: ball bearing
- Motor: brushless DC with auto-restart function
- Insulation resistance: min. 10 MΩ
- Insulation class: A
- Flammability class: UL94V-0, ECE R-118
- Impeller material: thermoplastic
- Housing material: thermoplastic
- Leads: wires (2 pcs.), length 0.31 m, 24 AWG
- Operating temperature: -10…+70 °C
- Gross weight: 224.4 g
1198652
Data sheet
- Voltage
- 48 V
- Power
- 9,7 W
- Length
- 120 mm
- Width
- 120 mm
- Height
- 38 mm
- Weight
- 224,4 g
- Noise level
- 48 dBA
- Air flow efficiency
- 234,4 m³/h
- Rated current
- 203 mA
- Fan type
- Axial
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
