Sunon EE40201SX-1000U-999 – axial fan 40×40×20 mm, 12 V DC
ID: 1199353
5902186328976
zł18.81
Tax included
zł15.29 tax excl.
The Sunon EE40201SX-1000U-999 fan 40×40×20 mm offers high rotational speed and good cooling performance with low noise levels. By meeting the UL94V-0 and ECE R-118 flammability standards, it is suitable for use in electronics, automotive applications, and devices requiring compliance with strict safety regulations.
Description

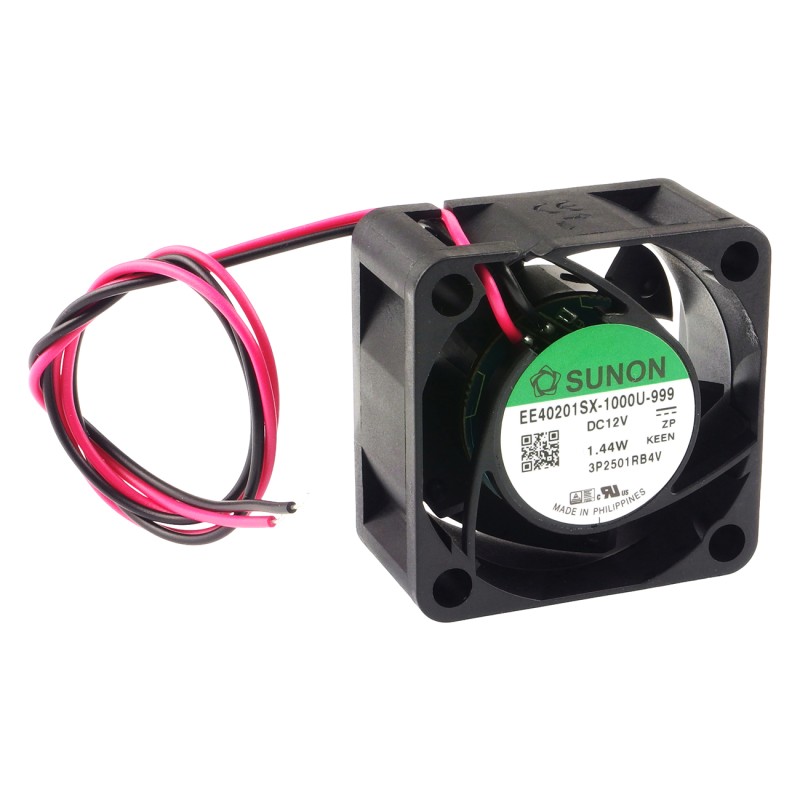

DC axial fan from Sunon with dimensions of 40×40×20 mm, designed for cooling electronic and industrial devices. Equipped with a brushless DC motor and a sleeve bearing, it ensures quiet operation at a high rotational speed of 8000 RPM. The operating voltage range of 4.5–13.8 V allows flexible use in 12 V DC power systems. The housing and impeller are made of thermoplastic compliant with UL94V-0 and ECE R-118 flammability standards.
Properties
- Type: DC axial fan
- Nominal voltage: 12 V DC
- Operating voltage range: 4.5–13.8 V DC
- Dimensions: 40×40×20 mm
- Power consumption: 1.26 W
- Rated current: 0.105 A (±15%)
- Airflow: 18.35 m³/h
- Noise level: 27.5 dBA
- Rotational speed: 8000 RPM
- Bearing type: sleeve
- Motor: brushless DC
- Insulation resistance: ≥10 MΩ
- Impeller material: thermoplastic (UL94V-0, ECE R-118)
- Housing material: thermoplastic (UL94V-0, ECE R-118)
- Insulation class: A
- Leads: wires (305 mm length)
- Operating temperature range: –10°C to +70°C
- Weight: 28.37 g
1199353
Data sheet
- Voltage
- 12 V
- Power
- 1,26 W
- Length
- 40mm
- Width
- 40mm
- Height
- 20 mm
- Weight
- 28,37 g
- Noise level
- 27,5 dBA
- Air flow efficiency
- 18,35 m³/h
- Rated current
- 105 mA
- Fan type
- Axial
