A multifunctional Stream Deck–style control panel with 18 membrane LCD keys, supporting a Linux + QMK architecture, AI-based voice control, and integration with AIDA64 and Home Assistant. Waveshare SK18 B 32839.

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

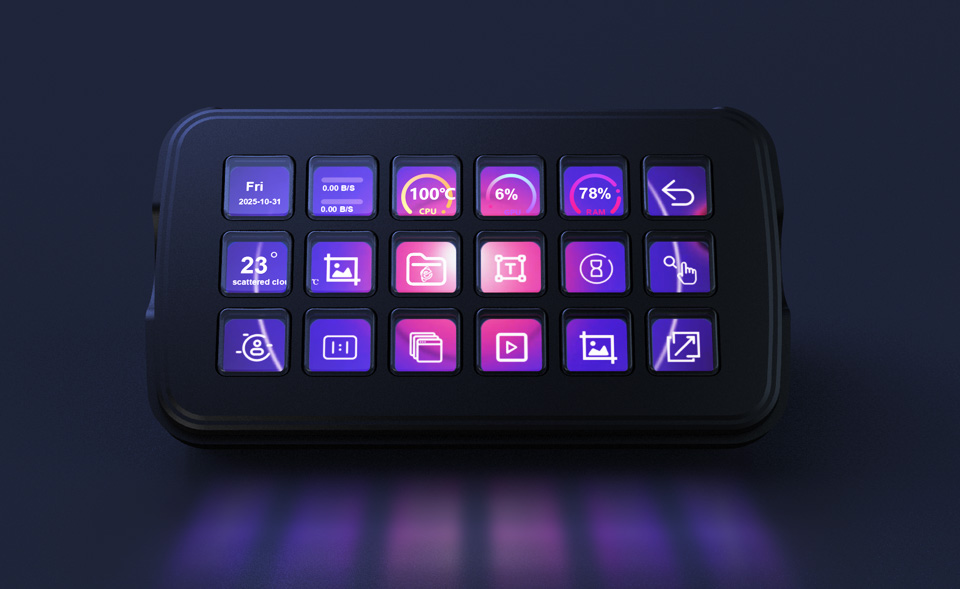

The Waveshare SK18 is a multifunctional Stream Deck–style control panel designed for applications that require a flexible and highly configurable control interface, such as live streaming, video production, gaming, office workflows, graphic editing, and automation control. The device is equipped with 18 LCD keys using quiet membrane switches, allowing the display of icons, system data, and dynamic graphical content.

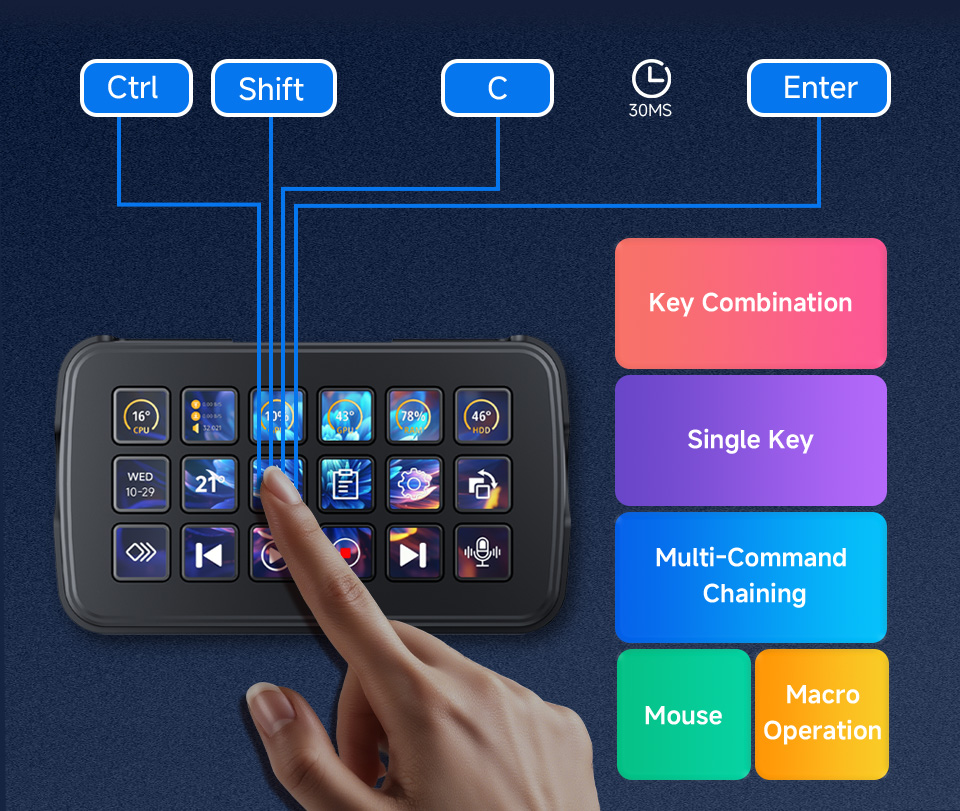

The use of a dual-system Linux + QMK architecture separates logic processing from input handling. The Linux system manages advanced functions, while the GD32 microcontroller running QMK firmware ensures instant key response, macro execution, key combinations, mouse control, and multi-command chaining—performed directly on the device without the need to install additional PC software.

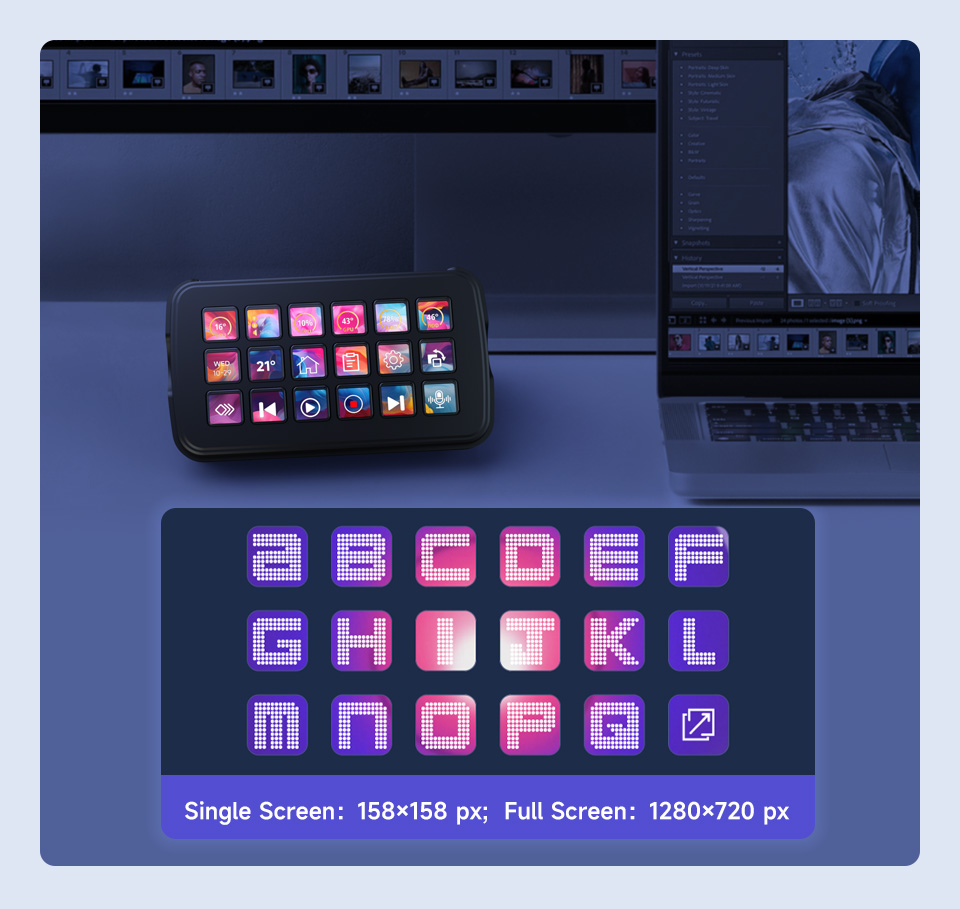

The panel supports full key-screen splicing, enabling all LCD keys to act as a single continuous display surface for images and video with multi-layer overlay support. A built-in drag-and-drop theme editor allows fast interface customization, as well as profile import and export.


Support for speech recognition and AI platforms enables voice control, while compatibility with Home Assistant allows smart home management directly from the panel. Integration with AIDA64, LibreHardwareMonitor, and OpenWeather makes it possible to display real-time system performance metrics and environmental data.

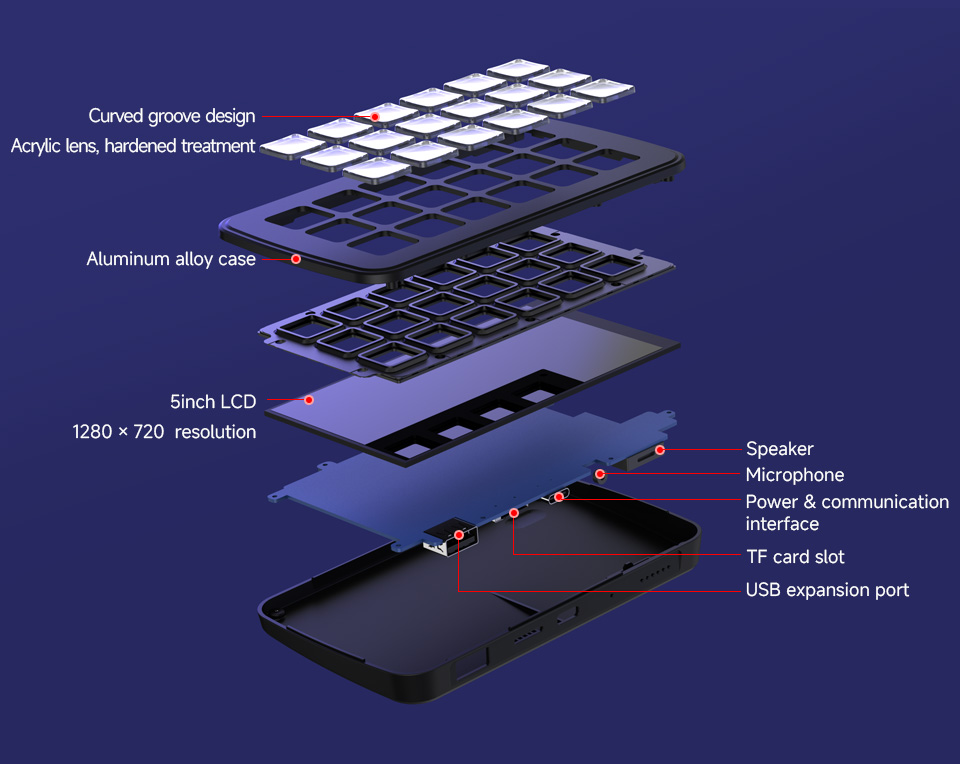

A premium aluminum enclosure combined with a scratch-resistant acrylic cover ensures durability and a clean aesthetic. Two placement options—flat desktop mode or using the detachable 40° stand—allow ergonomic adjustment to the user’s workspace.


Features

  • Device type: Stream Deck / control panel
  • Number of LCD keys: 18
  • Key type: Quiet membrane switches
  • LCD key resolution: 158 × 158
  • Screen splicing support: Yes
  • System architecture: Linux + QMK
  • Main controller: T113-S3, dual-core Cortex-A7, 1.2 GHz
  • Secondary controller: GD32 MCU
  • Macro and shortcut support: Yes
  • Mouse control and key combinations: Yes
  • Voice control: Yes
  • AI integration: Yes
  • AIDA64 integration: Yes
  • LibreHardwareMonitor and OpenWeather integration: Yes
  • Home Assistant support: Yes
  • Theme editor: Built-in, drag-and-drop
  • System compatibility: Windows, macOS
  • Power supply: 5 V via USB
  • Enclosure material: Aluminum and acrylic
  • Color: Black
  • Weight: 487 g

Kit includes

  • Waveshare SK18 Stream Deck control panel (black)
  • 40° detachable stand
  • USB Wi-Fi adapter
  • USB Type-A to Type-C cable (~1 m)
