Grove module for monitoring AC voltage, based on the MCP6002 operational amplifier, intended for use with microcontrollers in measurement and educational systems. Seeed Studio 101991032

4 weeks
Awaiting delivery
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

Grove – AC Voltage Sensor is a measurement module designed for detecting and monitoring alternating current (AC) voltage. The circuit is based on the MCP6002 operational amplifier, which performs analog signal conditioning and scales the signal to a level suitable for microcontroller ADC inputs. The module is used in voltage monitoring systems, educational projects, and test applications.

The sensor outputs an analog signal proportional to the measured AC input voltage, which can be read via a microcontroller’s analog input. The Grove connector enables quick connection without soldering. The solution is used in simple voltage monitoring setups, laboratory-scale power network monitoring, and demonstration projects related to AC signal analysis.

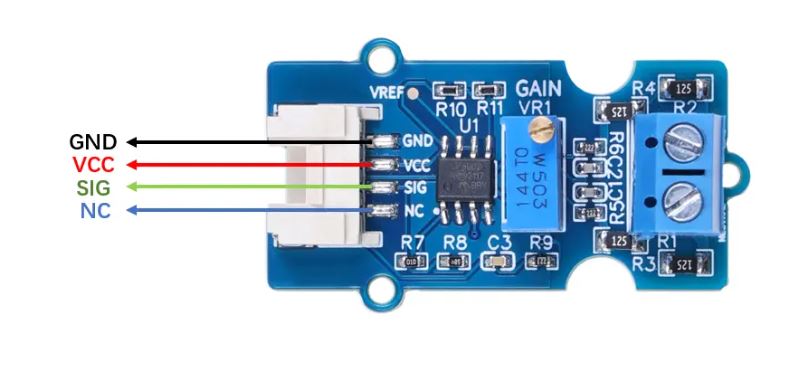

Features

  • Amplifier IC: MCP6002
  • Measured signal type: AC voltage
  • Signal output: analog
  • Interface: analog
  • Connector: Grove
  • Supply voltage: 3.3–5 V
  • Compatibility: microcontrollers with ADC inputs
  • Applications: AC voltage monitoring, education, measurement systems
