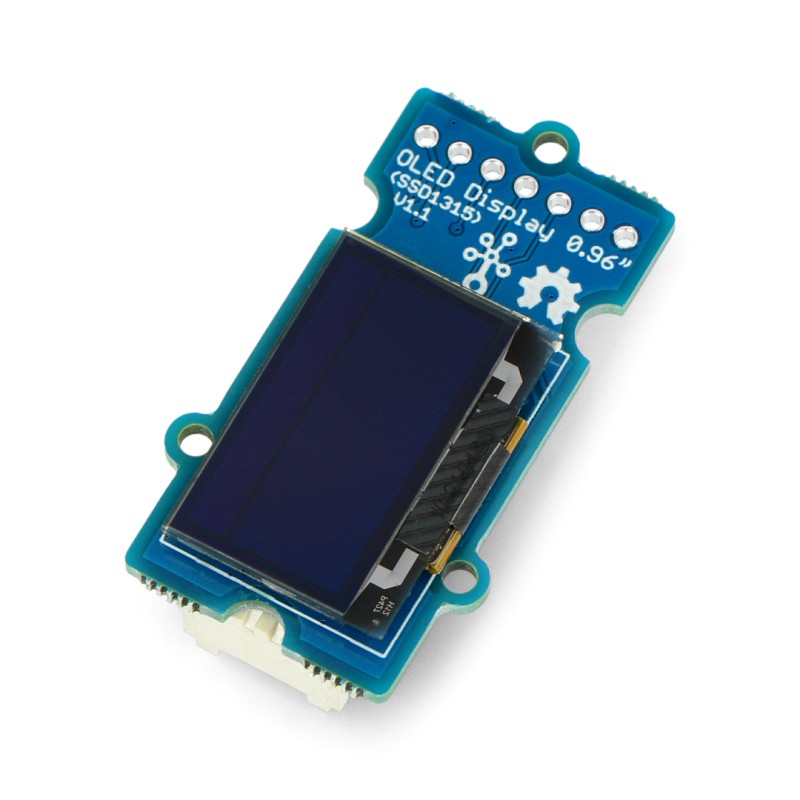

Grove OLED 0.96" SSD1315 – front angled view
search
  • Grove OLED 0.96" SSD1315 – front angled view
  • Grove OLED 0.96" SSD1315 – example of displayed content
  • Grove OLED 0.96" SSD1315 – rear PCB view
  • Grove OLED 0.96" SSD1315 – complete kit components
ID: 1201756
104020249
zł26.00
Tax included

zł21.14 tax excl.

0.96" OLED display in yellow and blue, based on the SSD1315 controller, equipped with a Grove interface supporting SPI and I2C communication and powered from 3.3–5 V. Seeed Studio 104020249

24h
Available
Available quantity: 2
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

Grove OLED Yellow&Blue Display 0.96" is an OLED display module intended for embedded systems and prototyping projects based on microcontroller platforms. The display uses the SSD1315 controller and a 0.96" OLED panel with a resolution of 128 × 64 pixels, featuring a dual-color active area divided into yellow and blue sections. The absence of backlighting supports low power consumption, which is suitable for battery-powered applications.

The module supports both I2C and SPI communication interfaces, enabling integration with a wide range of microcontrollers and development boards. The Grove connector simplifies system connection without the need for soldering. The display is used for presenting text data, icons, charts, and status information in IoT devices, measurement systems, and educational projects.

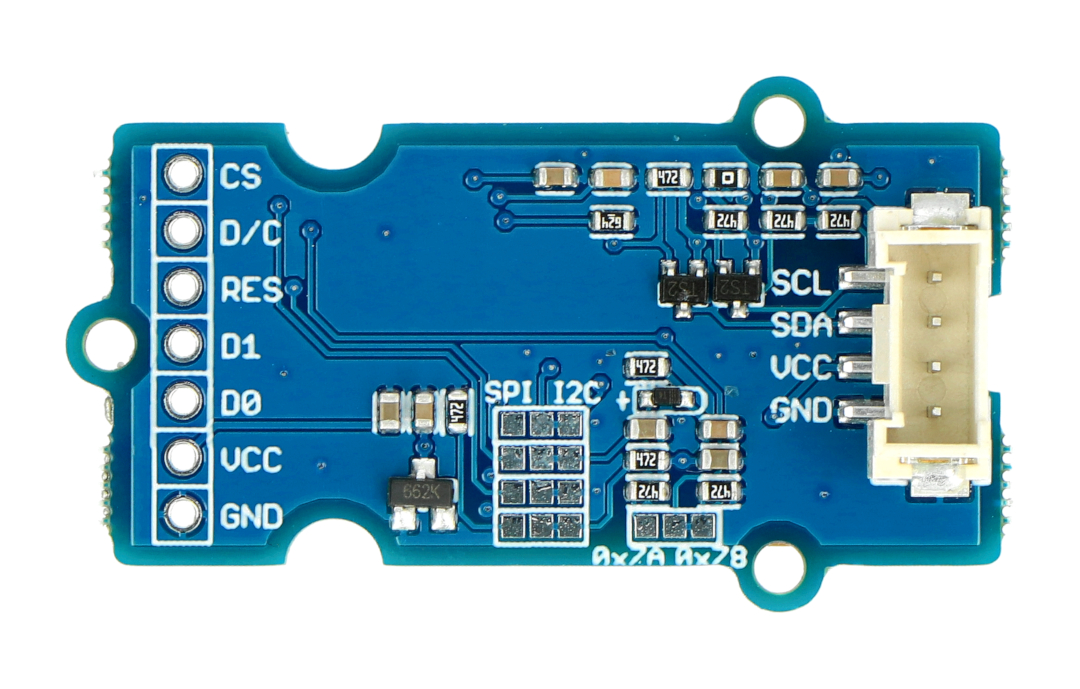

Guide

GND: Ground reference of the circuit.

VCC: Supply voltage from 3.3 V to 5 V.

SCL: I2C bus clock line.

SDA: I2C bus data line.

Features

  • Display type: OLED
  • Controller: SSD1315
  • Screen size: 0.96"
  • Resolution: 128 × 64 px
  • Display colors: yellow and blue
  • Communication interface: I2C / SPI
  • Supply voltage: 3.3–5 V
  • Connector: Grove
  • No backlight: yes
  • Application areas: embedded systems, IoT, prototyping projects

Kit includes

  • 1× Grove OLED Yellow&Blue Display 0.96" SSD1315 module
  • 1× 4-pin Grove cable (for module connection)
