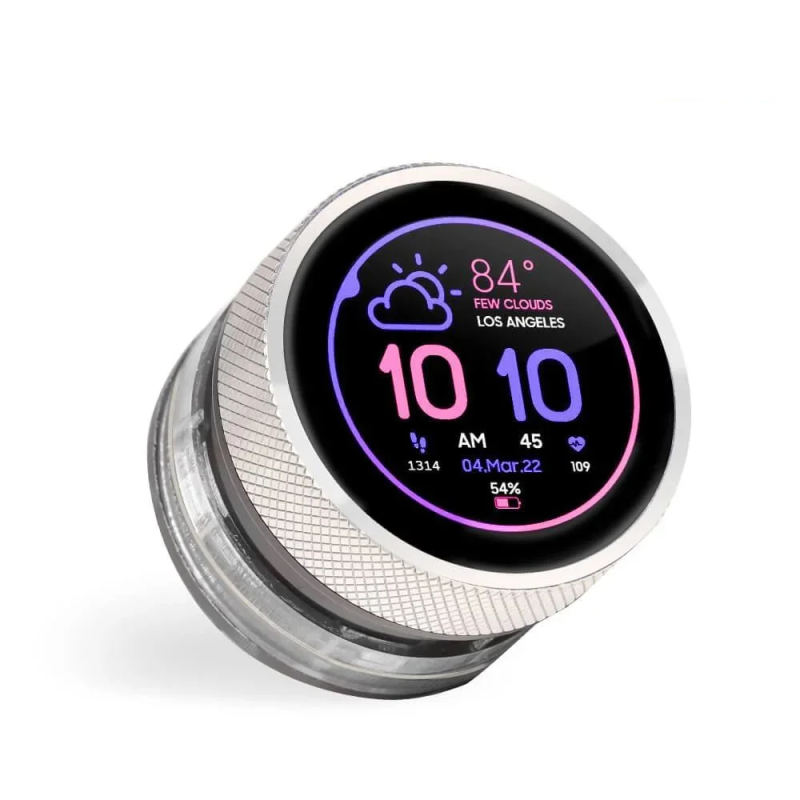

Main view
search
  • Main view
  • Rear angled view
  • Rear view
  • Cable connection view
ID: 1204682
zł158.24
Tax included

zł128.65 tax excl.

Compact interactive HMI module with a 1.28" round IPS touchscreen, 240 × 240 px resolution and a rotary knob with push-button function. Powered by the dual-core ESP32-S3 running at up to 240 MHz, with 8 MB PSRAM and 16 MB Flash memory. Supports 2.4 GHz WiFi, Bluetooth Low Energy, UART, I2C and FPC interfaces, as well as Arduino IDE and LVGL. Elecrow DHE38128D

24h
Available
Available quantity: 1

Description

CrowPanel 1.28inch-HMI is a compact interactive display module combining a round touchscreen with a precise rotary knob. The device is powered by a high-performance dual-core ESP32-S3 processor running at up to 240 MHz, supported by 512 KB SRAM, 8 MB PSRAM and 16 MB Flash memory, providing sufficient resources for advanced user interfaces and IoT applications. The 1.28-inch round IPS display offers a resolution of 240 × 240 px and capacitive touch control for convenient and intuitive interaction.

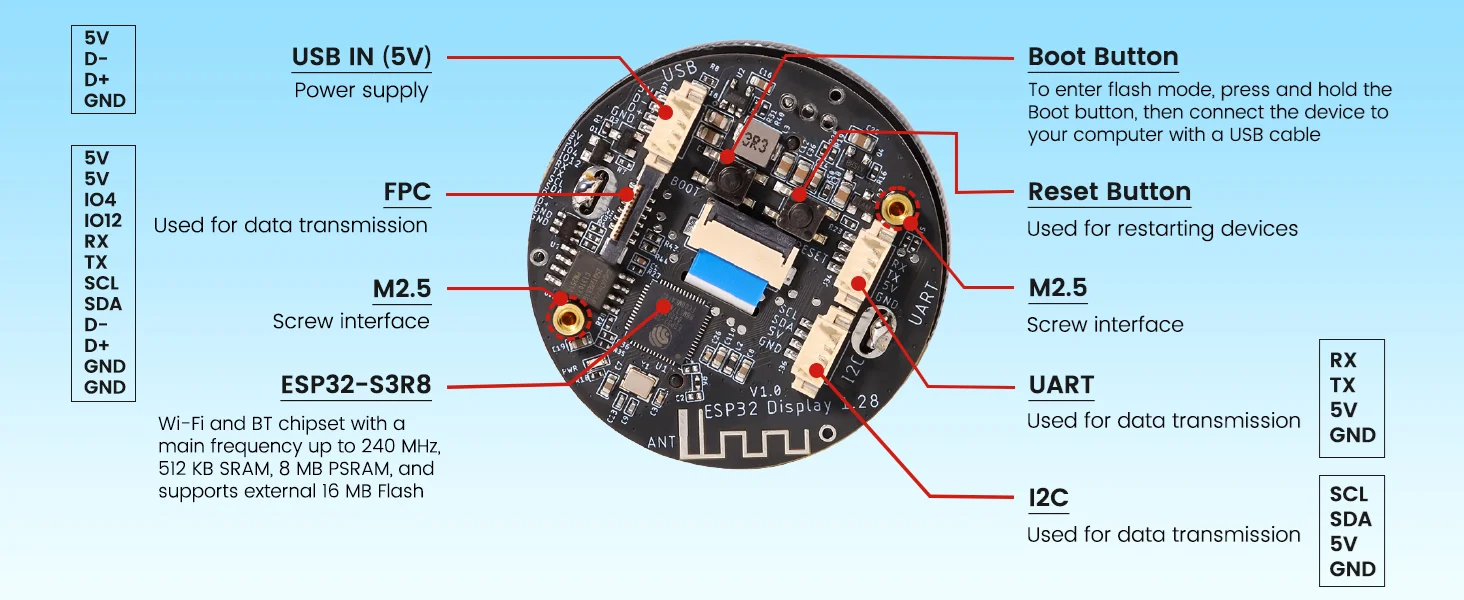

CrowPanel 1.28inch-HMI - board interfaces and components

The device supports both touchscreen control and rotary knob input. The knob can be rotated clockwise and counterclockwise and also operates as a push button, allowing intuitive adjustment of parameters such as volume, brightness or menu selection. The module supports 2.4 GHz WiFi and Bluetooth Low Energy / Bluetooth 5.0, allowing integration with IoT devices and smart home systems. Built-in UART, I2C and FPC interfaces provide connectivity for additional modules and peripherals, while RESET and BOOT buttons simplify programming and device control. A power indicator and LED ambient lighting provide status indication and additional visual effects.

CrowPanel is designed with low power consumption in mind, making it suitable for both stationary and portable devices. Compatibility with Arduino IDE and the LVGL library allows users to create custom graphical user interfaces. The module can be used in smart home projects, industrial control systems, IoT devices, access control systems, regulators, control panels and custom input devices. It can also be used as a secondary PC display or a rotary controller in DIY projects.

Features

  • Processor and Memory
    • Main chip: ESP32-S3R8
    • Processor: dual-core Xtensa 32-bit LX7
    • Maximum clock frequency: 240 MHz
    • SRAM: 512 KB
    • PSRAM: 8 MB
    • Flash memory: 16 MB
  • Display and Control
    • Screen size: 1.28"
    • Screen type: IPS
    • Resolution: 240 × 240 px
    • Touch panel: capacitive
    • Rotary knob
    • Clockwise and counterclockwise rotation
    • Integrated knob push button
  • Wireless Communication
    • WiFi: 2.4 GHz
    • Bluetooth Low Energy
    • Bluetooth 5.0
  • Interfaces
    • UART: ZX-MX 1.25-4P
    • I2C: ZX-MX 1.25-4P
    • FPC: 12-pin, 0.5 mm pitch
    • RESET button
    • BOOT button
  • Power and Lighting
    • Module supply voltage: 5 V
    • Main chip operating voltage: 3.3 V
    • Recommended power supply: 5 V / 1 A
    • Power indicator
    • LED ambient lighting
    • Low-power mode support
  • Software
    • Arduino IDE
    • LVGL library
    • Custom UI design support
  • Mechanical Specifications
    • Material: aluminum alloy + plastic + acrylic
    • Dimensions: 48 × 48 × 33 mm
    • Net weight: 50 g
    • Operating temperature: -20°C to 65°C
    • Storage temperature: -40°C to 80°C

Kit includes

  • CrowPanel 1.28" ESP32 Rotary Display
  • 50 cm MX1.25 - USB cable
  • 4-pin Dupont cable
