zł936.25 tax excl.
Advanced camera module for IoT systems that combines stereoscopic depth vision with a high-resolution RGB camera. With built-in neural network processing and computer vision capabilities, the camera enables real-time image analysis, and connectivity and power are provided by a USB Type-C port with fast data transfer (USB 3.2 Gen1). The module is equipped with additional technologies such as ESP32 for wireless communication (WiFi, BLE) and a 9-axis IMU BNO086, making it an ideal solution for robotics and motion analysis applications. Luxonis OAK-D-IoT-75

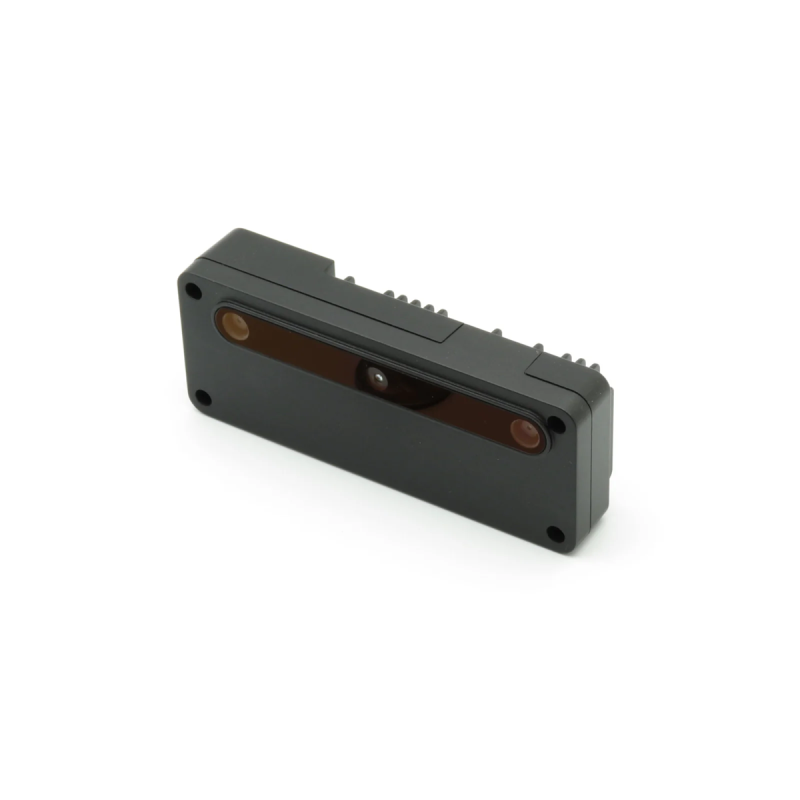

OAK-D IoT is an advanced camera module for vision systems in IoT (Internet of Things), combining stereoscopic depth vision with a high-resolution RGB camera, offering human-like perception. With built-in neural network processing and computer vision capabilities, the camera enables advanced real-time image analysis. It uses a USB Type-C port for power and connectivity, ensuring fast data transfer via USB 3.2 Gen1 (5 Gbps). The OAK-D is based on the RVC2 architecture, providing 4 TOPS of computing power (including 1.4 TOPS dedicated to AI tasks). The OAK-D supports any AI models, including custom ones, after conversion. The device allows for encoding in H.264, H.265, MJPEG formats at resolutions of 4K/30FPS and 1080P/60FPS. In the field of computer vision, it offers distortion correction, resizing, image cropping, edge detection, and feature tracking. Additionally, the camera offers 2D and 3D object tracking via the ObjectTracker module.
The module is equipped with a color camera featuring a 12MP IMX378 sensor (4056x3040 resolution) and two stereo cameras with a 1MP OV9282 sensor (1280x800 resolution). It also includes an ESP32 module, allowing wireless connectivity via WiFi and Bluetooth Low Energy (BLE). Additionally, it features 128 MB of NOR Flash memory, providing sufficient space for data and software. The kit also integrates a 9-axis IMU BNO086, ensuring precise motion and orientation measurements, making it ideal for robotics and drone applications.
Power consumption in the OAK-D depends on the load of the modules, including the vision processing unit (VPU). Basic power consumption during video streaming is 2.5W - 3W, with additional power requirements of up to 1W for the AI system, up to 0.5W for the stereoscopic system, and up to 0.5W for the video encoder. The total power consumption can reach up to 5W when all functions are used simultaneously. This makes it an ideal solution for projects requiring precise robotic vision, AI, depth analysis, and real-time motion tracking.
Data sheet
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Advanced camera module for IoT systems that combines stereoscopic depth vision with a high-resolution RGB camera. With built-in neural network processing and computer vision capabilities, the camera enables real-time image analysis, and connectivity and power are provided by a USB Type-C port with fast data transfer (USB 3.2 Gen1). The module is equipped with additional technologies such as ESP32 for wireless communication (WiFi, BLE) and a 9-axis IMU BNO085, making it an ideal solution for robotics and motion analysis applications. Luxonis OAK-D-IoT-40
No product available!
Advanced camera module for IoT systems that combines stereoscopic depth vision with a high-resolution RGB camera. With built-in neural network processing and computer vision capabilities, the camera enables real-time image analysis, and the connection and power supply are provided by a USB Type-C port with fast data transfer (USB 3.2 Gen1). The module is equipped with additional technologies such as ESP32 for wireless communication (WiFi, BLE), 6 microphones, a speaker and a 9-axis IMU BNO085, making it an ideal solution for applications in IoT systems. Luxonis OAK-D-IoT-40 S2
No product available!
Advanced robotic vision camera, combining an active stereo camera with a high-resolution color camera, allowing for effective perception of the surroundings in difficult lighting conditions. Featuring 4 TOPS computing power and IR dot projector technology, the camera is perfect for night vision, enabling the execution of AI and CV algorithms. PoE connection allows the cameras to communicate with other devices via network protocols. Luxonis OAK-D Pro PoE Fixed-Focus
Advanced AI camera, optimized for precise depth measurement at short distances, from 30 cm to 1 m, ideal for applications such as quality control or production automation. The camera is based on the OAK-SoM-Pro module, which allows for a compact design and easy installation in robotic systems. Equipped with a USB Type-C port, it offers 4 TOPS computing power and supports H.264, H.265, MJPEG formats, enabling advanced image analysis and object tracking in 2D and 3D. Luxonis OAK-D Short Range
Camera module with IMX378 sensor, which offers 12 MP (4056x3040) resolution using Rolling Shutter, providing high image quality and wide viewing angle 81° DFOV. Equipped with advanced ISP functions such as Auto Exposure, Auto White Balance and Auto Focus, the module provides flexibility in exposure and white balance settings, making it ideal for applications in surveillance systems, robotics and car cameras. Luxonis OAK-FFC IMX378 Fixed-Focus
No product available!
The AR0234 sensor camera module uses a 1/2.6-inch color sensor with Global Shutter technology to capture blur-free, dynamic scenes at 2.3 MP (1920x1200) resolution and 3 μm pixel size. It supports RVC2 (1920x1200, 60 FPS) and RVC4 (1920x1080, 30 FPS) modes with MIPI interface, and the built-in ISP processor supports automatic and manual image settings, including exposure, white balance, and sharpness. The compact size of 25 x 25 mm, FFC connector, and M12 lens mount make it ideal for industrial, IoT, and machine vision applications. Luxonis OAK-FFC AR0234 M12
No product available!
12MP AI camera that enables on-device neural network inference and image analysis, supporting AI models after conversion. Equipped with 4 TOPS RVC2 architecture, with features such as distortion correction, 2D object tracking, and dynamic autofocus, it is ideal for complex computer vision tasks with fast data transfer via USB-C. Luxonis OAK-1 Auto-focus
13MP AI camera that enables neural network processing and image analysis directly on the device, supporting AI models after conversion. Equipped with a 4 TOPS RVC2 architecture, with features such as distortion correction, 2D object tracking, and fixed focus, it is ideal for complex computer vision tasks with fast data transfer via USB-C. Luxonis OAK-1 Lite Wide
No product available!
Robotic vision camera that combines the functions of a stereo depth camera with a high-resolution color camera to deliver exceptional image quality. Using Power over Ethernet (PoE), the camera offers both power and a high-speed GigE connection, and its rugged IP65 housing makes it ideal for use in harsh industrial environments. The OAK-D S2 PoE boasts an impressive 4 TOPS of processing power and advanced computer vision features, making it an excellent solution for professional applications in the field of robotics and industrial automation. Luxonis OAK-D S2 PoE Auto-Focus
Camera module with OV9282 sensor and global shutter, offering 1 MP (1280x800) resolution and high image recording speed (up to 255 FPS), making it ideal for applications requiring minimal latency, such as video analysis or monitoring. Thanks to the built-in ISP processor and advanced 3A algorithms, the camera provides optimal image quality, and the possibility of manual exposure and white balance adjustment allows for adaptation to different lighting conditions. Model with a wide-angle lens with a viewing angle of up to 150 °. Luxonis OAK-FFC OV9282 W
No product available!
Robotic vision camera that combines the functions of a stereo depth camera with a high-resolution color camera to deliver exceptional image quality. Using Power over Ethernet (PoE), the camera offers both power and a fast GigE connection, and its rugged IP65 housing makes it ideal for use in harsh industrial environments. The OAK-D S2 PoE boasts an impressive 4 TOPS of processing power and advanced computer vision features, making it an excellent solution for professional applications in the field of robotics and industrial automation. Luxonis OAK-D S2 PoE Fixed-Focus
The board is designed to work with the Sunny MTP006 pTOF camera module, compatible with the OAK-FFC-3P, OAK-FFC-4P and DepthAI RPi HAT boards. Equipped with a 224x172 sensor, it provides precise depth measurements in the range of 20 cm to 4 m with an accuracy of less than 2% and a viewing angle of 70.7° DFOV, and communication is via a MIPI 2-lane interface with a supplied 3.3V power supply. Luxonis OAK-FFC-pToF
No product available!
Camera module with OV9782 sensor and global shutter, offering 1 MP (1280x800) resolution and high image recording speed (up to 255 FPS), making it ideal for applications requiring minimal latency, such as video analysis or monitoring, while maintaining the full color palette. Thanks to the built-in ISP processor and advanced 3A algorithms, the camera provides optimal image quality, and the possibility of manual exposure and white balance adjustment allows for adaptation to different lighting conditions. Model with a wide-angle lens with a viewing angle of 150 °. Luxonis OAK-FFC OV9782 W
No product available!
The IMX582 sensor camera module offers a 32MP (5312x6000) resolution with a rolling shutter, providing incredibly detailed images and versatility with a 71° DFOV viewing angle and Auto-Focus from 20cm to ∞. Equipped with advanced ISP features such as Auto Exposure, Auto White Balance and Anti-Banding, the module is perfect for demanding projects, including surveillance systems, robotics and IoT applications, where high image quality and flexible settings are key. Luxonis OAK-FFC IMX582
No product available!
13MP AI camera that enables on-device neural network processing and image analysis, supporting AI models after conversion. Equipped with a 4 TOPS RVC2 architecture, with features such as distortion correction, 2D object tracking, and fixed-focus, it is ideal for complex computer vision tasks with fast data transfer via USB-C. Luxonis OAK-1 Lite Fixed-focus
12MP AI camera that enables neural network processing and image analysis directly on the device, supporting AI models after conversion. Equipped with a 4 TOPS RVC2 architecture, with features such as distortion correction, 2D object tracking, and a fixed-focus lens, it is ideal for complex computer vision tasks with fast data transfer via USB-C. Luxonis OAK-1 Wide
No product available!
Camera module with IMX214 sensor, which offers 13 MP (4208x3120) resolution with Rolling Shutter shutter, providing high image quality and a wide viewing angle of 117° DFOV. The camera supports advanced ISP functions such as Auto Exposure, Auto White Balance, Auto Focus and manual exposure and white balance settings, making it an ideal solution for advanced applications such as monitoring systems or robotics. Luxonis OAK-FFC AR0234 M12
No product available!
32MP AI camera that enables neural network processing and image analysis directly on the device, supporting AI models after conversion. Equipped with the 4 TOPS RVC2 architecture, with features such as distortion correction, 2D object tracking, and dynamic autofocus, it is ideal for complex computer vision tasks with fast data transfer via USB-C. Luxonis OAK-1 MAX
Advanced camera module for IoT systems that combines stereoscopic depth vision with a high-resolution RGB camera. With built-in neural network processing and computer vision capabilities, the camera enables real-time image analysis, and connectivity and power are provided by a USB Type-C port with fast data transfer (USB 3.2 Gen1). The module is equipped with additional technologies such as ESP32 for wireless communication (WiFi, BLE) and a 9-axis IMU BNO086, making it an ideal solution for robotics and motion analysis applications. Luxonis OAK-D-IoT-75
