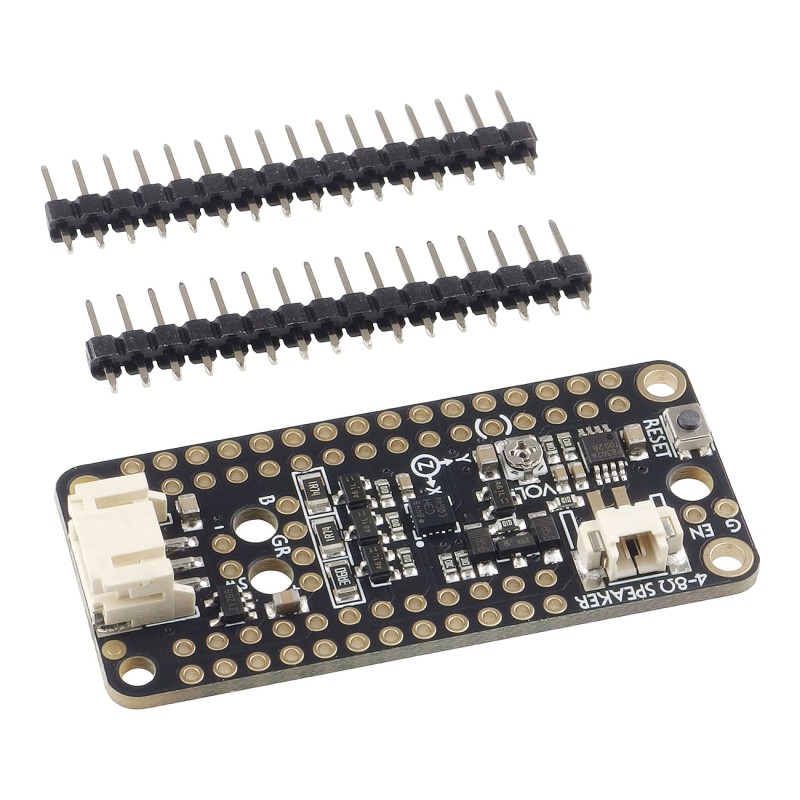

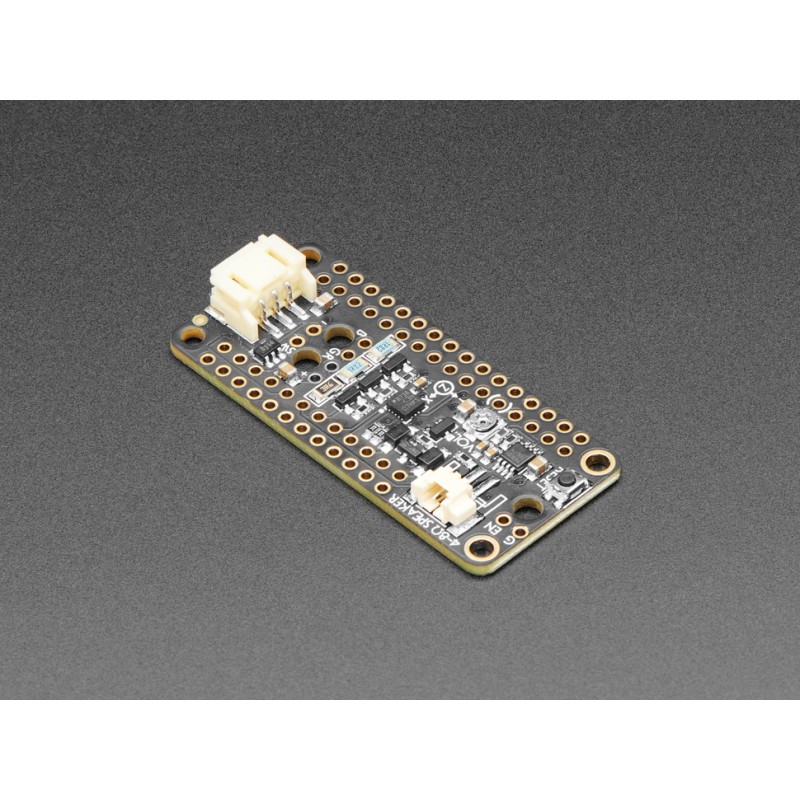

  • Main view
  • Top view
  • Bottom view
ID: 1202021
zł50.18
Tax included

zł40.80 tax excl.

This expansion board is designed for light and sound, cosplay, and interactive prop projects. It features a ready-made NeoPixel port with a level converter, 3W RGB LED drivers, and a Class D audio amplifier for driving 8Ω or 4Ω speakers. The built-in LIS3DH accelerometer allows for motion, impact, and tilt detection, ideal for dynamic effects. It works with a wide range of Feather boards, allowing you to quickly create advanced projects in a compact format. Adafruit 3988

24h
Available
Available quantity: 1
Kamami is the official distributor of Adafruit modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

Prop-Maker FeatherWing is an expansion module designed especially for creators of props, cosplay accessories, toys, and impressive light–sound projects. With this board, anyone can unleash their creativity and build highly advanced effects using simple, compact components. The module comes equipped with a range of features that significantly simplify building lightsabers, futuristic tools, or interactive costume elements. The most important feature is the ready-to-use NeoPixel port, allowing you to connect a strip or individual LEDs without soldering, using a high-quality signal from the built-in level shifter. Users also have access to 3W RGB LED drivers, enabling high-power LED control and generating any colors using PWM. The module also offers a built-in 3-axis LIS3DH accelerometer that detects motion, impacts, and tilt—perfect for “swing” or “hit” effects. Another key component is the Class-D audio amplifier, supporting 8 Ω 1 W or 4 Ω 3 W speakers, making it possible to add realistic sound effects.

The integrated electronics allow operation in a low-power mode, making the module practical for portable projects. It also provides pins for external buttons and switches, increasing integration options for complex builds. Thanks to the FeatherWing connectors (which require manual soldering), it can be quickly attached to a compatible board. It works with a wide range of Feather boards, but the full capabilities are unlocked with Feather M0 Express and Feather M4, both offering PWM and audio support. The module is fully tested, ready to use, and provides an extensive platform for creating lighting, sound, and motion effects in one compact format.

Features

  • NeoPixel port with a 3-pin JST connector and voltage level shifter
  • 3W RGB LED drivers based on MOSFETs
  • Built-in 3-axis LIS3DH accelerometer
  • Class-D audio amplifier for 8 Ω 1 W / 4 Ω 3 W speakers
  • Analog audio support (depending on Feather model)
  • Low power consumption – below 1 mA in power-saving mode
  • Pins for external switch and mode button
  • Accessory power (LED, speaker, NeoPixel) controlled via enable line
  • Compatible with Feather M0 Express, M4, ESP32 (with audio limitations)
  • Ideal for props, lightsabers, toys, and cosplay devices

Kit contains

  • Adafruit Prop-Maker FeatherWing module
  • Set of mounting connectors
1202021

Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20

Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
