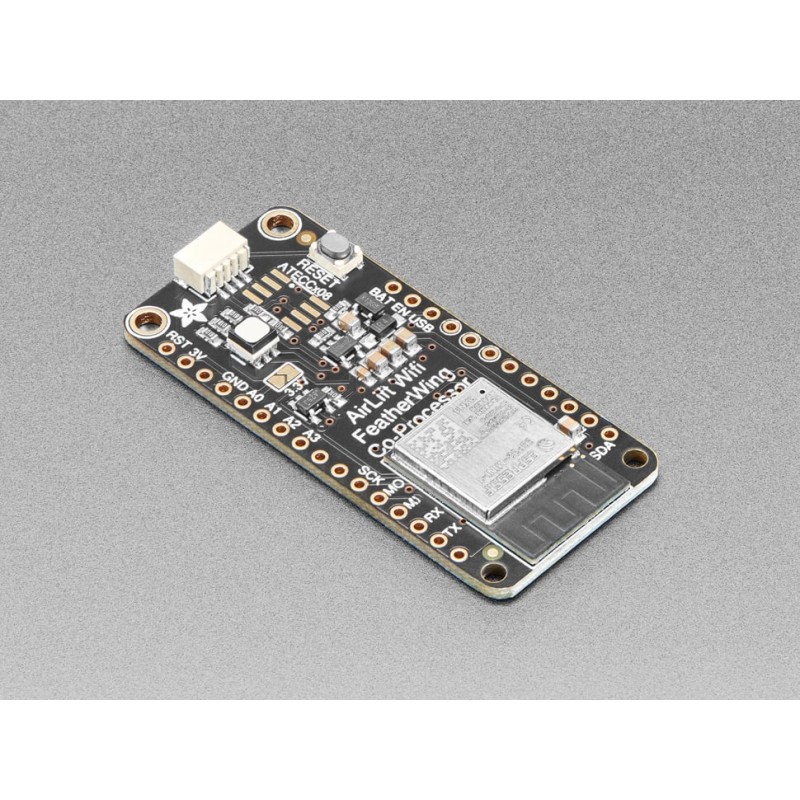

Main view
search
  • Main view
  • Top view
  • Bottom view
ID: 1202028
zł65.33
Tax included

zł53.11 tax excl.

This module allows you to add high-speed WiFi connectivity to your Feather-based projects, using the ESP32 as a network coprocessor. Support for TLS/SSL protocols and 8MHz high-speed SPI communication ensures stable and secure internet connections without burdening the main microcontroller. The module works with both 3.3V and 5V devices, and the built-in voltage regulator and MISO buffer facilitate integration with other FeatherWings. Adafruit 4264

24h
Available
Available quantity: 1
Kamami is the official distributor of Adafruit modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

AirLift FeatherWing is a specialized expansion module that adds fast, modern WiFi connectivity to virtually any project based on the Feather platform. The module uses an ESP32 chip operating as a dedicated network coprocessor, allowing the main microcontroller to offload internet communication and complex encryption tasks. Support for modern security protocols such as TLS/SSL is handled entirely by the ESP32, greatly simplifying user code and reducing memory requirements. Communication with the module is performed through a high-speed 8 MHz SPI interface, ensuring excellent throughput with minimal software overhead. AirLift can be used with both 3.3 V and 5 V microcontrollers, providing broad compatibility with a wide range of Arduino boards. It also works exceptionally well with CircuitPython, especially on SAMD51 or nRF52840 boards that offer sufficient RAM. Thanks to a dedicated 3.3 V regulator and a tri-state MISO buffer, the module can safely share the SPI bus with other FeatherWings.

The board comes preloaded with WiFi coprocessor firmware and is ready to use without additional configuration. AirLift is an ideal solution for projects that require reliable internet connectivity, integration with online services, or IoT functionality. With this module, you can easily add networking features without burdening the main microcontroller. Included header pins allow easy soldering and quick integration with other Feather system components. The module is highly reliable, factory-tested, and compatible with most Feather boards, except those with built-in WiFi. It is a practical tool that extends project capabilities without needing to switch platforms or upgrade to a more advanced microcontroller.

Features

  • ESP32 module operating as a WiFi coprocessor
  • Support for modern TLS/SSL protocols with preloaded root certificates
  • Communication via 8 MHz SPI interface
  • Compatible with microcontrollers operating at 3.3 V and 5 V logic levels
  • Requires up to 250 mA during WiFi operation
  • Arduino compatibility (recommended M0, M4, and newer)
  • CircuitPython compatibility (recommended M4 or nRF52840)
  • Integrated 3.3 V regulator
  • Tri-state MISO buffer for safe SPI bus sharing
  • Preloaded ESP32 SPI WiFi Co-Processor firmware
  • Fully compatible with most Feather boards (except ESP32 and ESP8266 Feather)
  • Dimensions: 50 × 23 × 5 mm
  • Weight: 0.1 g

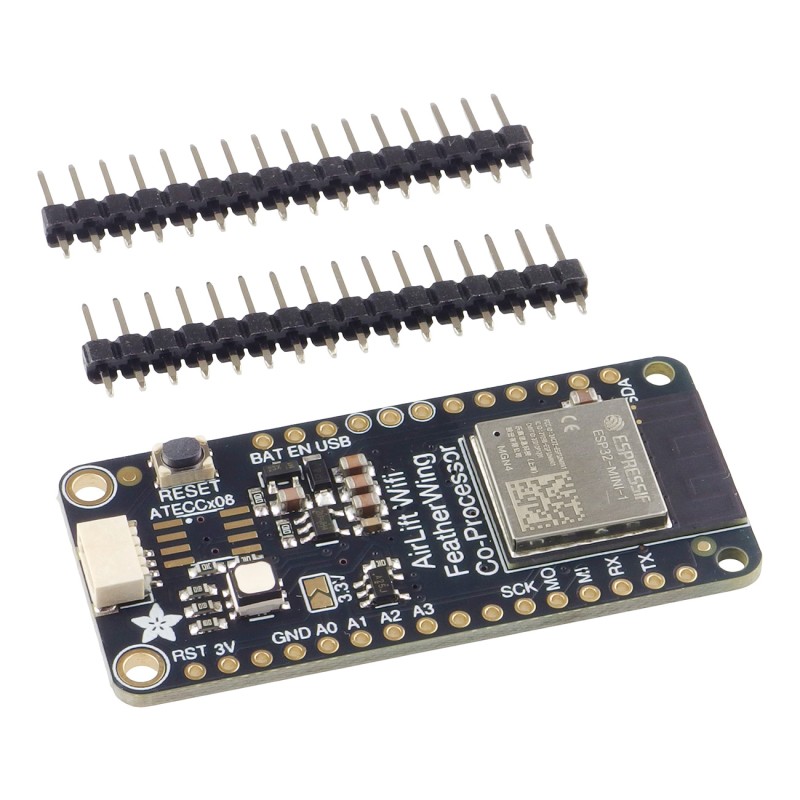

Kit contains

  • Adafruit AirLift FeatherWing – ESP32 WiFi Co-Processor module
  • Header set for assembly
