Quad Side-By-Side FeatherWing - pin expander for Feather
ID: 1202031
zł50.18
Tax included
zł40.80 tax excl.

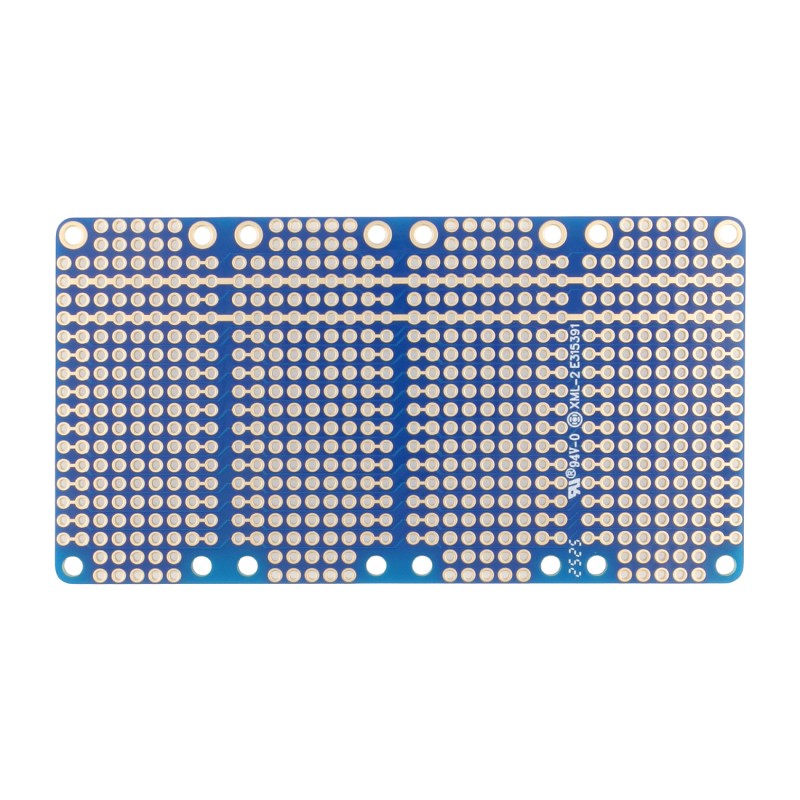

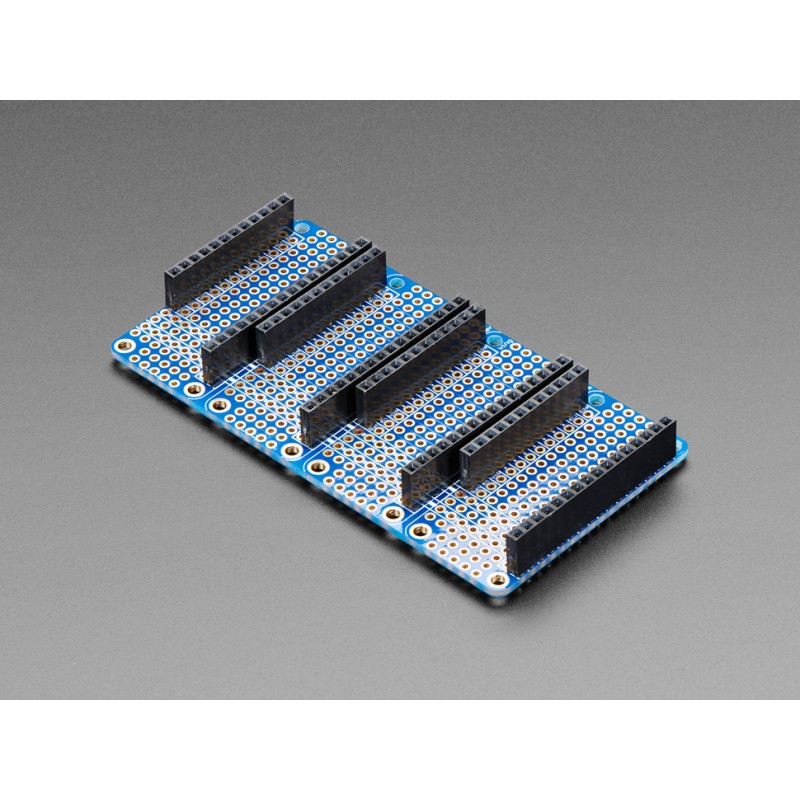

A prototyping extension for Feather boards, allowing you to connect up to three additional FeatherWings simultaneously without using stacked connectors. The board offers three pins for each Feather pin, shared 3.3V and GND power lines, and a prototyping area with a grid of holes for adding your own components. Compatible with all Feathers, it's ideal for prototyping and expanding your projects. Adafruit 4254
Description
Quad Side-By-Side FeatherWing is a versatile prototyping expansion designed specifically for boards in the Feather family. It allows simultaneous connection of up to three additional FeatherWings without using stackable headers, significantly simplifying the creation of more complex setups. The board design provides three parallel connections for each Feather pin, offering great flexibility when designing and expanding projects. Additionally, there is a prototyping area with a standard hole grid, allowing convenient addition of custom components and circuits. The Quad also features shared 3.3V and GND power lines, making power distribution across the project easier.
This expansion enables users to easily combine different sensor modules, controllers, communication interfaces, or actuators. The board is ideal for both prototyping and building more advanced development setups. The Quad Wing perfectly complements the Feather ecosystem, allowing expansion without increasing device height. The kit requires manual soldering of female headers. With its simple design and high compatibility, it is an excellent solution for hobbyists, educators, and professional electronics developers. Its compact dimensions make it suitable for use even in small enclosures or portable prototypes.
Features
- Compatible with all Feather boards
- Allows connection of up to three additional FeatherWings without using stackable headers
- Three parallel connections for each Feather pin
- Prototyping area with standard hole grid
- Shared GND and 3.3V lines with continuous traces
- Requires soldering of headers
- PCB dimensions (unassembled): 95 × 50 × 1.5 mm
Kit contains
- Adafruit Quad Side-by-Side FeatherWing board
- 4 sets of female headers
1202031
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
