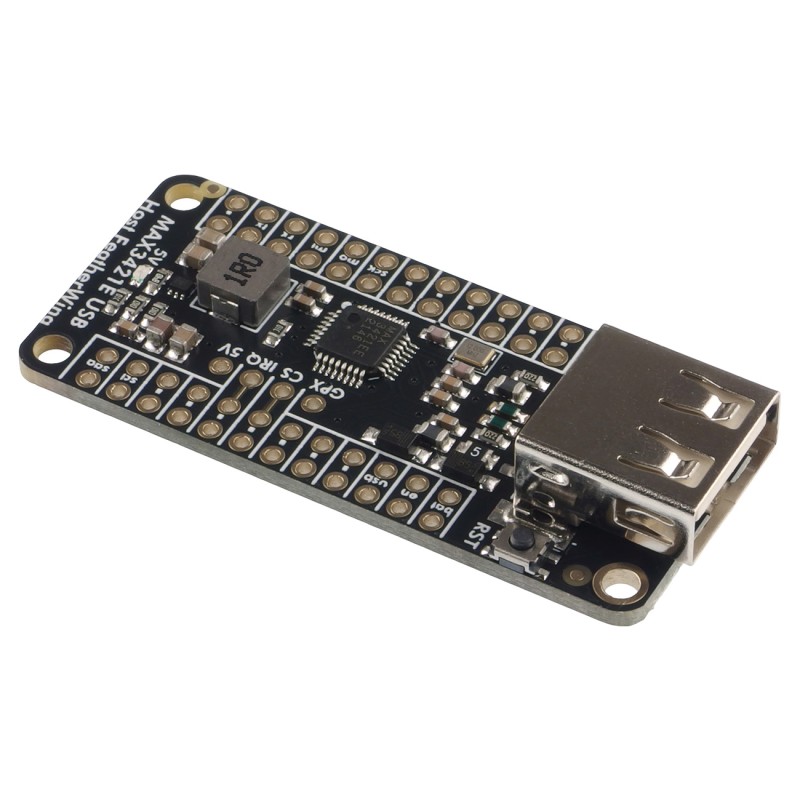

Main view
search
  • Main view
  • Top view
  • Top view with pin headers
  • USB-A connector
  • Size comparison to a coin
ID: 1202025
5902186333994
zł72.16
Tax included

zł58.67 tax excl.

FeatherWing expansion module adding USB Host functionality to Feather boards via a USB-A connector, based on the MAX3421E controller with SPI communication and an integrated 5V 1A boost converter for powering USB devices. Adafruit 5858

24h
Available
Available quantity: 3
Kamami is the official distributor of Adafruit modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

Adafruit 5858 USB Host FeatherWing is designed to expand Feather mainboards with the ability to operate USB devices in host mode, such as keyboards, mice, mass storage devices and HID peripherals. The module is based on the proven MAX3421E USB Host controller, which communicates with the main microcontroller via the SPI interface and an IRQ interrupt line.

The USB-A connector allows direct connection of USB peripherals. Data transfer is limited by the SPI bus bandwidth, which is sufficient for HID applications and mass storage device access. The module supports the TinyUSB and USB Host Library libraries and is intended for Feather boards based on RP2040, ESP32-S2, ESP32-S3, nRF52840, SAMD21 and SAMD51 microcontrollers.


The board integrates a step-up converter providing a 5V supply with up to 1A current for connected USB devices, protected by a 500mA resettable fuse. A dedicated enable pin allows software-controlled power cycling of the USB-A port, enabling reset of connected devices without physical intervention.

A video presenting the operation of the USB Host FeatherWing with the MAX3421E controller demonstrates handling USB devices connected to the USB-A connector and integration of the module with Feather-compatible boards.

Features

  • USB Host controller: MAX3421E
  • Module type: FeatherWing for Feather boards
  • USB connector: USB-A
  • Communication interface: SPI
  • Interrupt line: IRQ
  • Step-up converter: 5V up to 1A
  • Overcurrent protection: 500mA resettable fuse
  • USB power control: Enable pin
  • Library support: TinyUSB, USB Host Library
  • Compatibility: RP2040, ESP32-S2, ESP32-S3, nRF52840, SAMD21, SAMD51
  • Mounting: Feather connectors
  • Dimensions: 52.0 x 22.8 x 8.8 mm
  • Weight: 6.3 g
