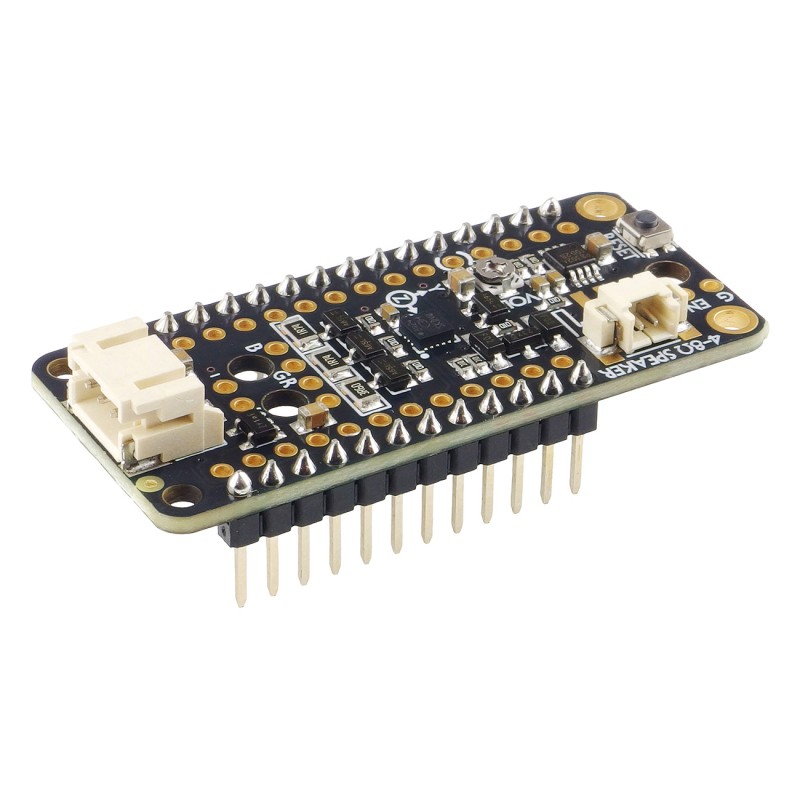

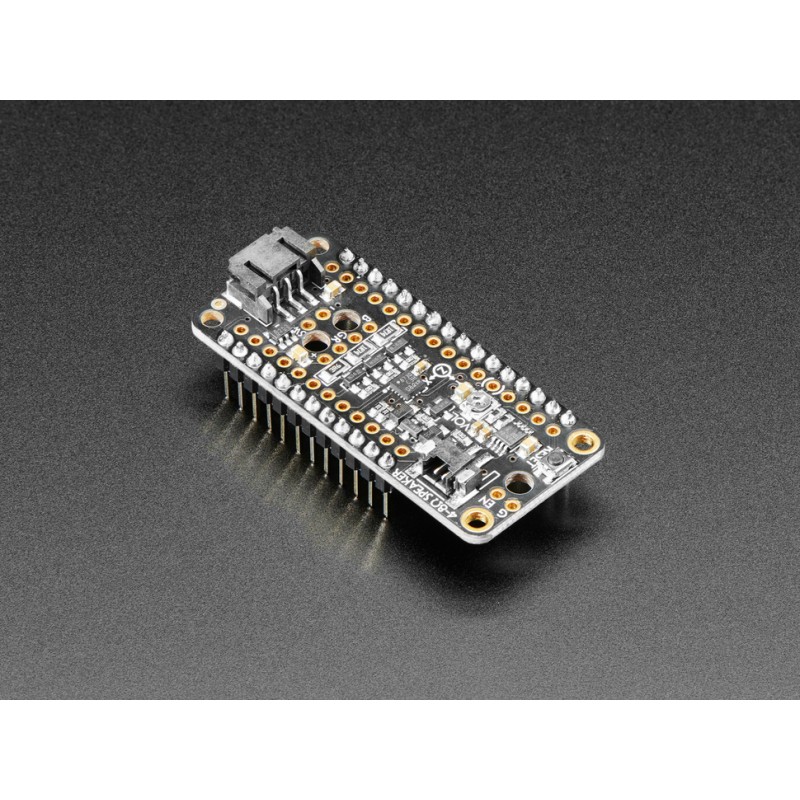

  • Main view
  • Angled view
  • Angled view – rotated board
  • Top view
  • Bottom view
ID: 1202027
zł55.23
Tax included

zł44.90 tax excl.

This expansion board is designed for light and sound, cosplay, and interactive prop projects. It features a ready-made NeoPixel port with a level converter, 3W RGB LED drivers, and a Class D audio amplifier for driving 8Ω or 4Ω speakers. The built-in LIS3DH accelerometer allows for motion, impact, and tilt detection, ideal for dynamic effects. It works with a wide range of Feather boards, allowing you to quickly create advanced projects in a compact format. Adafruit 4145

24h
Available
Available quantity: 2
Kamami is the official distributor of Adafruit modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

Prop-Maker FeatherWing is a fully assembled expansion module designed specifically for creators of props, cosplay accessories, toys, and projects requiring impressive light-and-sound effects. It enables you to unleash your creativity and build advanced visual and audio effects using simple, compact components. The board is equipped with a range of features that significantly simplify the creation of lightsabers, futuristic tools, or interactive costume elements. Its key feature is the ready-to-use NeoPixel port, allowing you to connect LED strips or individual diodes without soldering, using a high-quality signal from the built-in level shifter. The module also includes 3W RGB LED drivers, enabling you to power high-brightness LEDs and generate any color using PWM. Additionally, it features a built-in 3-axis LIS3DH accelerometer for detecting motion, impacts, and tilt—perfect for “swing” or “clash” effects. Another major component is the Class-D audio amplifier, supporting 8 Ω 1 W or 4 Ω 3 W speakers, allowing you to add realistic sound effects.

The electronic design enables operation in a low-power mode, making the module well-suited for portable builds. It also provides pins for external buttons and switches, increasing integration options in larger projects. Thanks to factory-soldered FeatherWing headers, the module can be connected to a compatible Feather board immediately, without any soldering. It works with a wide range of Feather boards, with full functionality available when paired with Feather M0 Express or Feather M4, which offer PWM and audio support. The module is fully tested, ready to use, and provides an advanced platform for creating lighting, sound, and motion effects in a compact format.

Features

  • Fully assembled version
  • NeoPixel port with 3-pin JST connector and level-shifting circuitry
  • 3W RGB LED drivers based on MOSFET transistors
  • Built-in 3-axis LIS3DH accelerometer
  • Class-D audio amplifier for 8 Ω 1 W or 4 Ω 3 W speakers
  • Analog audio support (depending on Feather board)
  • Low power consumption – below 1 mA in power-saving mode
  • Breakouts for an external switch and mode button
  • Accessory power (LED, speaker, NeoPixel) controlled by enable line
  • Compatibility with Feather M0 Express, Feather M4, ESP32 (with audio limitations)
  • Ideal for props, lightsabers, toys, and cosplay devices
