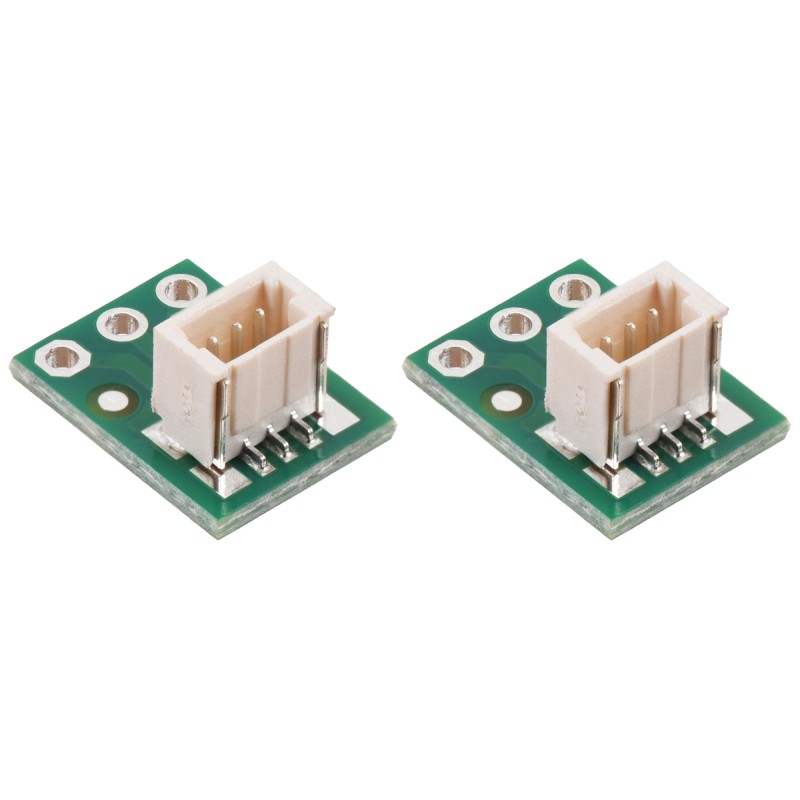

JST SH 3-pin Male Connector Adapter, Top-Entry, for Breadboard (2 pcs.) - Pololu 4812
ID: 1199036
zł6.62
Tax included
zł5.38 tax excl.
Pololu 4812 is a set of two JST SH 3-pin top-entry adapters that facilitate integration of JST SH wires with breadboards and prototype circuits. Thanks to compatibility with the 2.54 mm pitch and support for voltages up to 50 V, the adapters are useful in prototyping power and signal circuits.
Description
The Pololu 4812 adapters are breakout boards designed for easy connection of wires terminated with a female JST SH 3-pin connector to breadboards and prototype circuits. The top-entry version allows vertical wire insertion, which facilitates cable routing in compact designs. The 3-pin version provides access to three signal or power lines.
Properties
- Connector type: JST SH, 3-pin, male, top-entry
- Compatibility: female JST SH 3-pin wires
- Pin pitch: 2.54 mm (0.1″), compatible with breadboards and goldpin headers
- Maximum current: 1 A per pin
- Maximum voltage: 50 V
- Dimensions: 10.5 mm × 6.4 mm × 5.3 mm (0.415″ × 0.25″ × 0.21″)
- Weight: 0.2 g (per board)
Set includes
- 2 × JST SH 3-pin adapter, male, top-entry
1199036
Data sheet
- Montage
- Brak
- Pitch
- 2,54 mm
- Number of pins
- 3
- Connector type JST
- SH
- Angled/straight
- Angled
