LCD1602 I2C module blue 2×16 alphanumeric - Waveshare 30494
ID: 1197701
5902186303836
zł36.16
Tax included
zł29.40 tax excl.

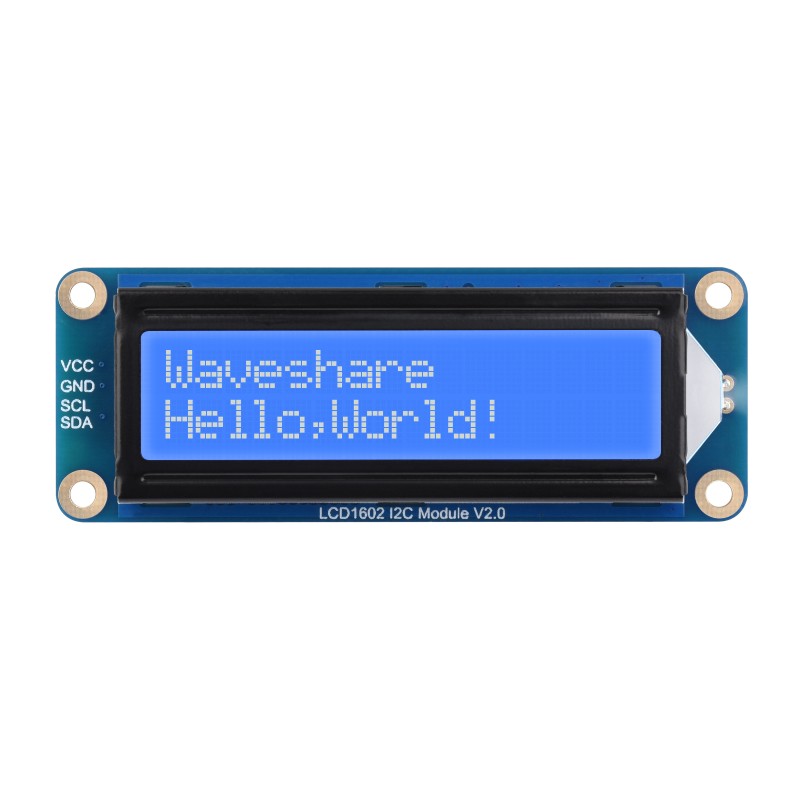

LCD1602 I2C Module Waveshare 30494 (blue) provides a clear two-line text display for microcontroller projects with limited available pins. With compatibility for 3.3 V and 5 V power supplies and broad support for both hobbyist and professional platforms, the module is well-suited for control panels, measurement systems, and user interfaces in embedded applications.
Description
The LCD1602 I2C module with a blue background and white characters allows for the display of 16 characters over two lines, making it a practical solution for presenting text data in microcontroller-based systems. The I2C interface reduces the number of required pins to just two, helping to conserve microcontroller resources.
It supports 3.3 V and 5 V power supply, making it compatible with popular platforms such as Raspberry Pi, Raspberry Pi Pico, Jetson Nano, ESP32, Arduino, and STM32. The module includes the AiP31068 controller and the SN3193 for software-controlled backlight brightness adjustment.
Features
- Character count: 16 × 2
- Interface: I2C
- Power supply: 3.3 V ~ 5 V
- LCD controller: AiP31068
- Backlight controller: SN3193
- Backlight color: blue
- Character color: white
- Backlight adjustment: yes
- Operating temperature range: -20°C ~ +70°C
- Display size: 64.5 × 16.0 mm
- Module dimensions: 87.0 × 32.0 × 13.0 mm
- Connector: PH2.0 4PIN (VCC, GND, SCL, SDA)
Included
- LCD1602 I2C Module (Blue) x1
- PH2.0 4PIN cable x1
1197701
Data sheet
- Screen type
- LCD alfanumeric
- Diagonal (inch)
- Nie dotyczy
- Resolution
- 2 x 16 characters
- Interface
- I2C
- Touch
- No
