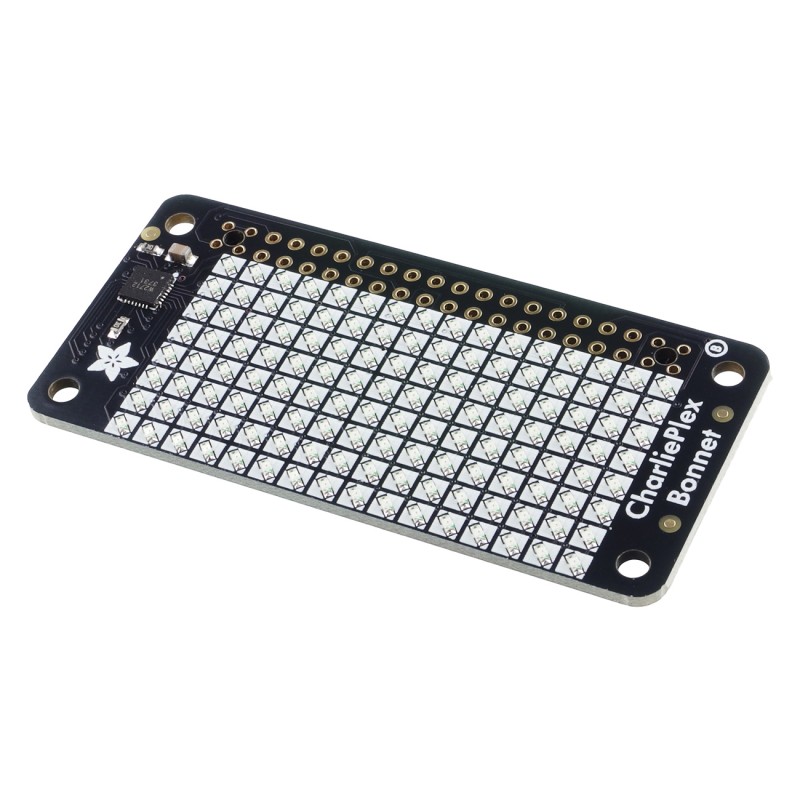

CharliePlex LED Matrix Bonnet - 8x16 LED matrix module (red)
ID: 1198437
5902186331044
zł65.33
Tax included
zł53.11 tax excl.
This 40-pin GPIO module for the Raspberry Pi features 128 red LEDs arranged in a 16x8 grid. Using the IS31FL3731 driver communicating over the I2C bus, each LED can be independently controlled with 8-bit brightness control, enabling smooth animations and lighting effects. The module stores up to eight frames of animation in RAM and utilizes Charlieplexing technology, offering efficient control with a minimal number of pins. Adafruit 6115
Description
CharliePlex LED Matrix Bonnet is a compact lighting module designed for use with Raspberry Pi computers equipped with a 40-pin GPIO header. The board allows control of 128 red LEDs arranged in a 16×8 matrix, creating a bright and visually appealing display ideal for data visualization, animations, or lighting effects. The built-in IS31FL3731 LED driver communicates via the I2C interface, making setup and operation simple — only the SDA and SCL lines are required, which can be shared with other I2C devices. Each LED can be individually controlled with 8-bit brightness adjustment (256 levels), enabling smooth gradients and animation effects. The onboard RAM can store up to eight animation frames, which can be switched with a single command to create fluid and dynamic visual transitions. Using Charlieplexing technology, the module efficiently drives a large number of LEDs while minimizing GPIO pin usage. Powered by 3.3 V and featuring very low power consumption, it is ideal for portable and energy-efficient projects. The Adafruit CharliePlex LED Matrix Bonnet is a perfect choice for makers who want to add eye-catching lighting, status indicators, or animations to their Raspberry Pi projects in a simple and elegant way.
Features
- LED layout: 16 × 8 (128 red LEDs)
- LED driver: IS31FL3731 (I2C communication)
- Brightness control: 8-bit (256 levels per LED)
- Supports up to 8 animation frames stored in onboard RAM
- Charlieplexing technology for efficient LED control
- Power supply: 3.3 V
- Compatibility: Raspberry Pi with 40-pin GPIO header
- Dimensions: 65 × 30.6 × 5.5 mm
