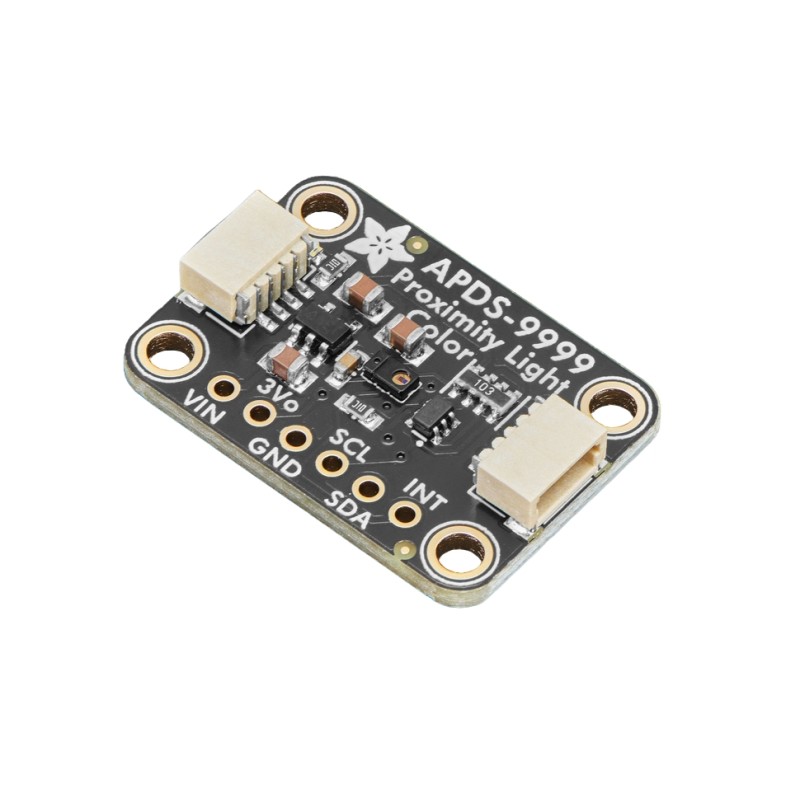

Angled view
search
  • Angled view
  • Top view
  • Top view with pin headers
  • Bottom view
ID: 1204538
zł38.04
Tax included

zł30.93 tax excl.

APDS9999 sensor module enabling measurement of light intensity (lux), RGB color, and infrared proximity detection. Communication via the I2C interface, while STEMMA QT / Qwiic connectors allow quick integration with prototyping systems. Adafruit 6461

4 weeks
Awaiting delivery
Kamami is the official distributor of Adafruit modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

Module with the APDS9999 sensor enables measurement of ambient light intensity in lux, RGB color detection, and proximity sensing using reflected infrared radiation. The sensor measures red, green, blue, and Clear channels, enabling analysis of light color and estimation of correlated color temperature. Proximity measurement operates by detecting reflected infrared light emitted by the integrated 940 nm VCSEL emitter.

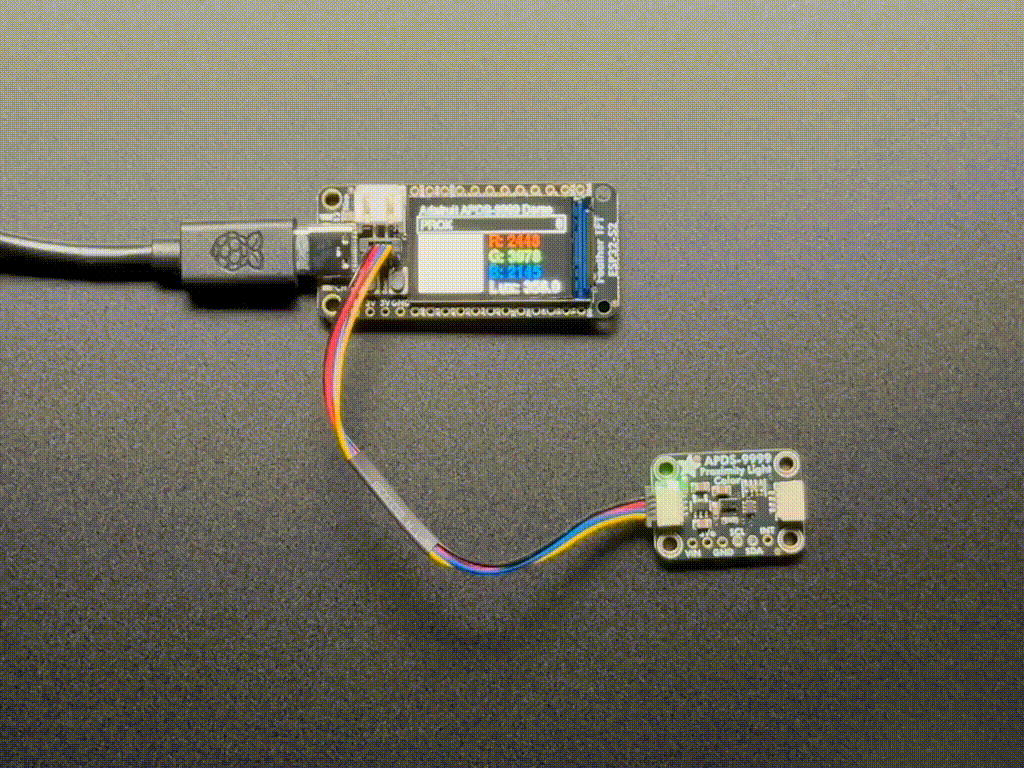

The device communicates via the I2C bus, allowing integration with common microcontroller platforms and single-board computers. The board includes a 3.3 V voltage regulator and logic level shifting circuitry, allowing operation with both 3.3 V and 5 V systems. STEMMA QT / Qwiic connectors enable quick connection using a cable without soldering, simplifying prototyping of measurement systems and IoT projects. The manufacturer also provides a guide and a software library that enable quick setup of the module in the Arduino IDE using just a few lines of code.

Features

  • Sensor IC: APDS9999
  • Communication interface: I2C up to 400 kHz
  • Light sensing: RGB + Clear channel (ALS)
  • Light intensity measurement: in lux
  • Proximity sensing: reflective IR sensor
  • IR light source: VCSEL 940 nm
  • Maximum proximity detection range: up to 150 mm
  • Typical proximity sensing range: up to about 50 mm
  • Programmable ALS integration time
  • Programmable ALS gain
  • Programmable interrupts for light and proximity sensing
  • Interrupt pin: INT
  • STEMMA QT / Qwiic connectors
  • On-board 3.3 V voltage regulator
  • Logic level shifting 3.3 V / 5 V
  • Operating voltage: 3.3 - 5 V
