modTSL2561 (GY-2561) - light sensor module with TSL2561 chip
search
  • modTSL2561 (GY-2561) - light sensor module with TSL2561 chip
  • modTSL2561 (GY-2561) - light sensor module with TSL2561 chip
  • modTSL2561 (GY-2561) - light sensor module with TSL2561 chip
  • modTSL2561 (GY-2561) - light sensor module with TSL2561 chip
ID: 557797
5906623454778
zł15.90
Tax included

zł12.93 tax excl.

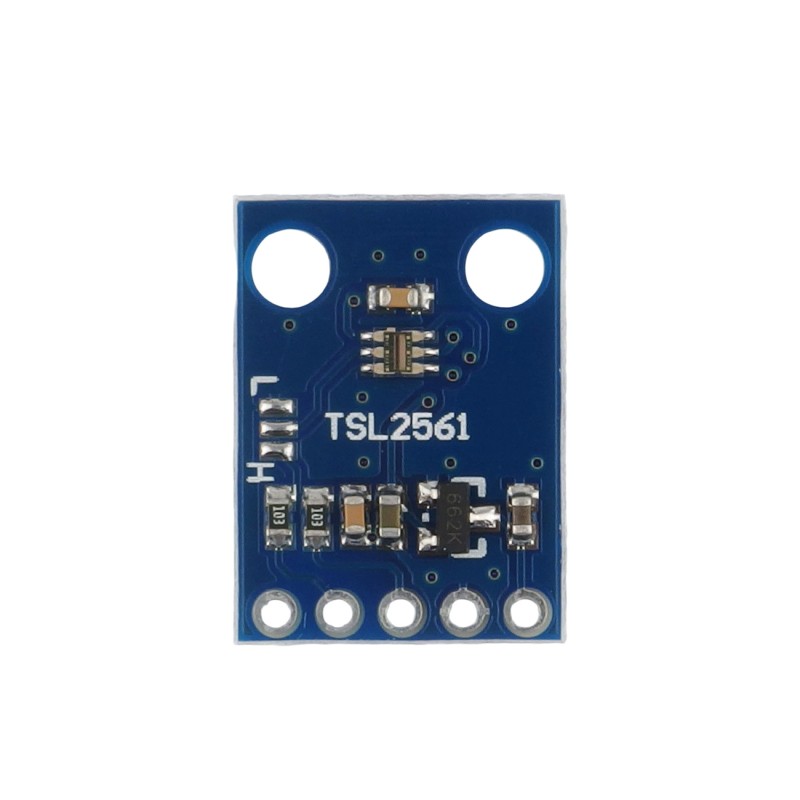

modTSL2561 is a module containing a light sensor TSL2561; communication with the system takes place using the I2C bus

4 weeks
Awaiting delivery

Description

The light sensor module TSL2561 is characterized by a flat signal response in most of the visible light band. Unlike other light sensors, the sensor included in the modSL2561 module measures both visible and infrared light to better approximate the effects of the human eye. The layout of the system includes two photodiodes and two A / C converters, thanks to which it is possible to simultaneously measure the intensity of illumination in the visible and infrared spectrum.

The TSL2561 system communicates via the I2C bus, it also has an OC (configurable alarm) output.

properties

  • Based on the TSL2561 chip
  • Interface: I2C
  • Power supply: 2.7 - 3.6 V
  • Power consumption: max. 20 mA
  • Dimensions: 20 x 14 x 2 mm
  • Weight: 2 g
