zł203.21 tax excl.

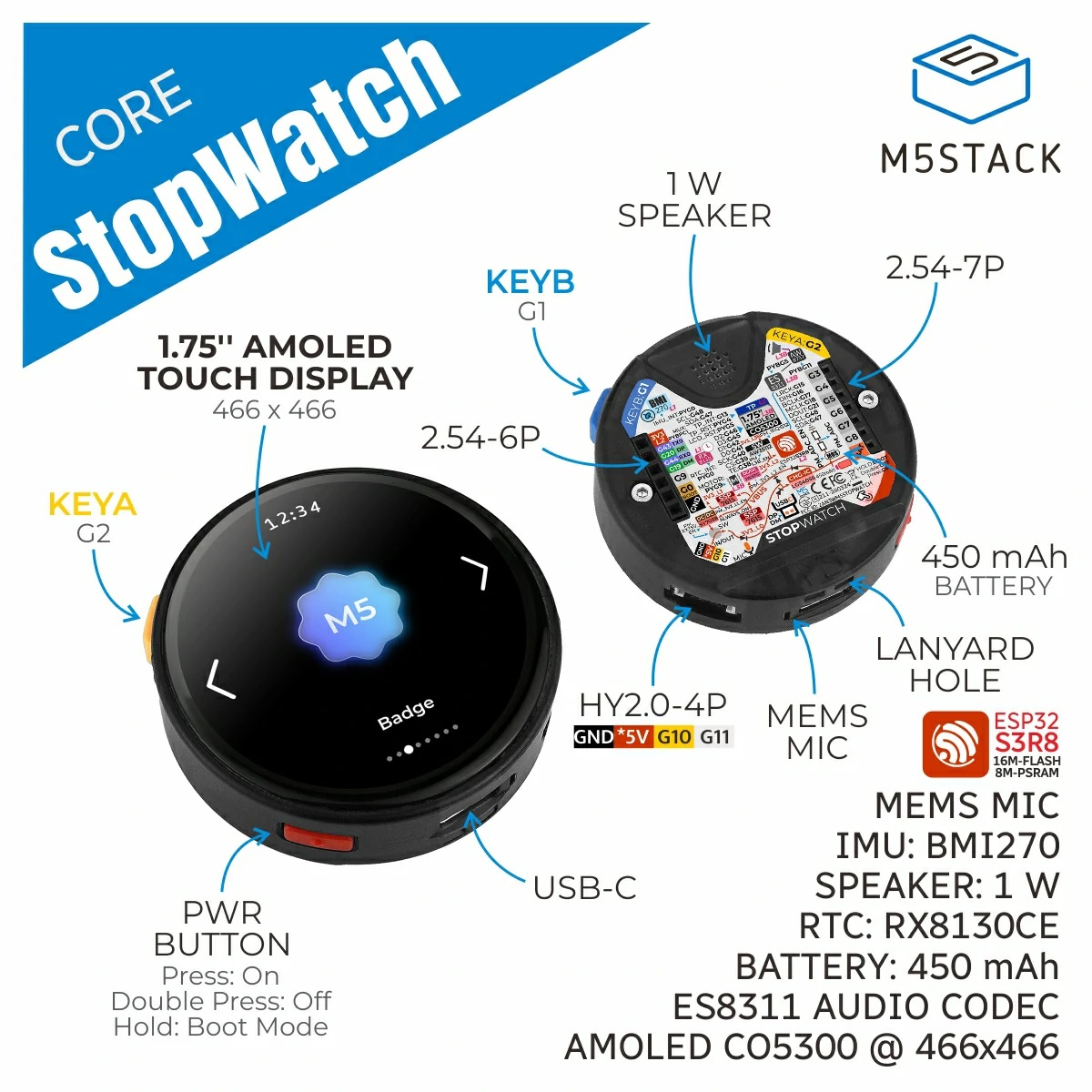

ESP32-S3-based development platform featuring a 1.75" round AMOLED display, audio subsystem, IMU sensor, WiFi connectivity, and a rechargeable battery for portable IoT devices. M5Stack C152
The M5Stack StopWatch Dev Kit (ESP32-S3) development platform is designed for portable electronic devices, HMI interfaces, electronic badges, and IoT terminals. The device features a 1.75-inch capacitive AMOLED display, 2.4 GHz WiFi connectivity, a built-in 450 mAh battery, and integrated hardware for audio, motion sensing, and haptic feedback.
Data processing is handled by the ESP32-S3R8 microcontroller with a dual-core Xtensa LX7 processor running at up to 240 MHz, 16 MB Flash memory, and 8 MB PSRAM. The user interface includes a 466 × 466 pixel round AMOLED display with capacitive touch support, two programmable buttons, a dedicated power button, and a built-in vibration motor.
The device integrates an ES8311 audio codec, MEMS microphone, AW8737A audio amplifier driving a 1 W speaker, a 6-axis BMI270 IMU, and an RX8130CE real-time clock.
Additional hardware includes a HY2.0-4P (Grove) expansion connector, rear 2.54 mm expansion headers, a USB Type-C port, and a magnetic mounting system. The M5PM1 multi-level power management IC optimizes battery operation, while compatibility with Arduino IDE, PlatformIO, ESP-IDF, and UiFlow2 simplifies application development.
