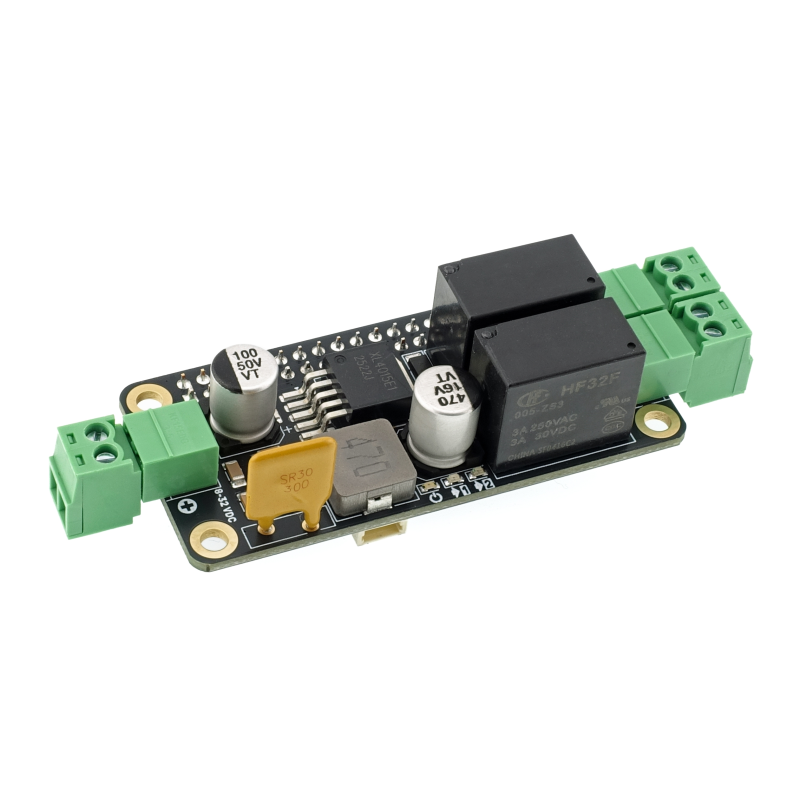

KAmodRPi Zero Rel+Pow - Multifunctional power and actuator module for Raspberry Pi ZERO
search
  • KAmodRPi Zero Rel+Pow - Multifunctional power and actuator module for Raspberry Pi ZERO
  • KAmodRPi Zero Rel+Pow - Multifunctional power and actuator module for Raspberry Pi ZERO
  • KAmodRPi Zero Rel+Pow - Multifunctional power and actuator module for Raspberry Pi ZERO
  • KAmodRPi Zero Rel+Pow - Multifunctional power and actuator module for Raspberry Pi ZERO
ID: 1200027
zł49.90
Tax included

zł40.57 tax excl.

The KAmodRPi Zero Rel+Pow module enables powering the Raspberry Pi ZERO from a wide voltage range and expands its capabilities with two relay channels and an I2C Qwire interface. The compact form and wide functionality make it an ideal solution in automation projects, IoT and control systems.

24h
Available
Available quantity: 20

Description

Multifunctional KAmodRPi Zero Rel+Pow module intended for powering and functional expansion of Raspberry Pi ZERO minicomputers and compatible SBCs. It enables stable power supply of 5.1 V with continuous current up to 3 A (temporarily up to 5 A) from an input voltage range of 8–32 V. The board integrates an XL4015 buck converter (step-down) with efficiency reaching 96%, as well as overvoltage, overload and thermal protection. The module contains two relay outputs with normally open (NO) contacts, which enable control of loads up to 3 A at a voltage up to 250 VAC or 30 VDC. Additionally equipped with a JST SH type I2C Qwire connector (compatible with Qwiic and STEMMA QT), facilitating communication with sensors and accessories. The compact design and mounting holes enable quick and secure connection to the Raspberry Pi ZERO board.

Properties

  • Input voltage range 8–32 V
  • Output voltage 5.1 V, continuous current up to 3 A, temporary up to 5 A
  • XL4015 step-down converter (5 A, 180 kHz, 96%)
  • Overvoltage, overload and thermal protection
  • Two relays with normally open (NO) contacts
  • Relay load capacity 3 A / 250 VAC or 3 A / 30 VDC
  • JST SH 4-pin I2C Qwire connector (1 mm, Qwiic / STEMMA QT)
  • Dimensions 70 × 30 mm, height approx. 17 mm + 8 mm connector under the board
  • Possibility of direct mounting on Raspberry Pi ZERO
