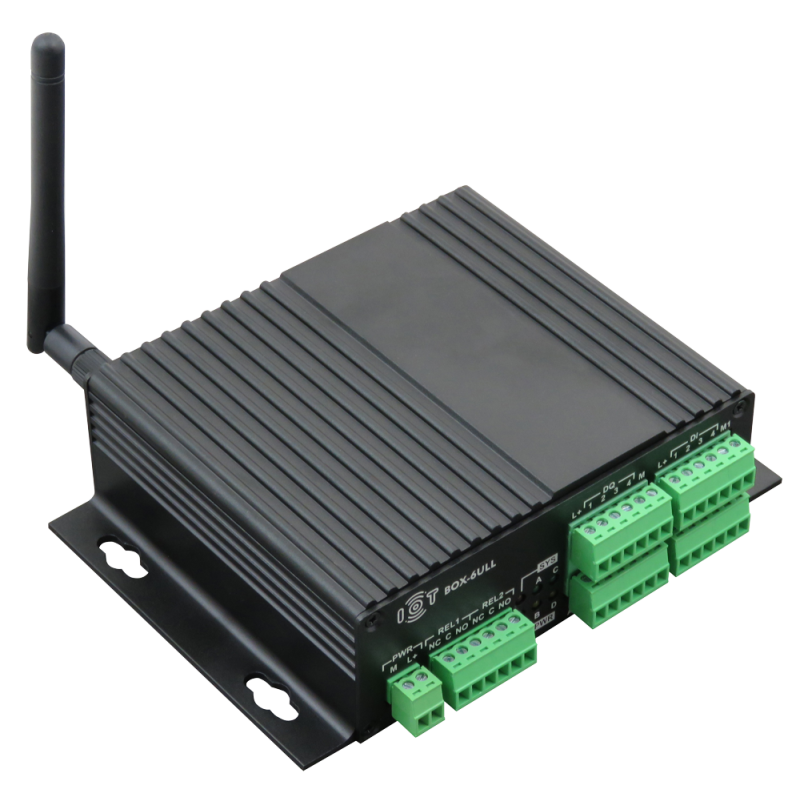

SL-IOT-BOX_6ULL_512R_08GE_1WB_E – Industrial computer i.MX6ULL with Wi-Fi/BLE, 512 MB RAM, 8 GB eMMC
ID: 1200045
zł481.41
Tax included
zł391.39 tax excl.
SL-IoT-BOX_6ULL_512R_08GE_1WB_E intended for industrial IoT and edge computing applications integrates Wi-Fi/BLE and wired communication interfaces, providing flexibility in the implementation of PLC controllers and automation systems. It supports OpenPLC, enables operation in a wide temperature range, and ensures reliability in harsh conditions.
Description
The industrial fanless computer SL-IoT-BOX_6ULL_512R_08GE_1WB_E is intended for edge applications, PLC controllers, and automation systems with wireless network support. It is based on the VisionSOM-6ULL module with an energy-efficient NXP i.MX6ULL Cortex-A7 processor clocked at 792 MHz. Equipped with 512 MB DDR3L memory and 8 GB eMMC storage, it enables running Linux operating systems, including Debian and Yocto.
The design enables remote communication thanks to integrated Wi-Fi 802.11b/g/n and Bluetooth BLE modules with an external antenna. The device features a rich set of interfaces: 2 x RS232, 1 x RS485, 1 x CAN-FD, 4 x USB 2.0, Ethernet 10/100 Mb/s, as well as digital inputs and outputs compliant with IEC 61131-2 TYPE 1 and two relays (NC-C-NO). An aluminum IP40 enclosure and 10–24 VDC power supply ensure reliability in industrial environments.
The computer includes a USB-OTG port for programming eMMC memory, a Linux system console, and an integrated RTC with battery backup. Support for OpenPLC enables implementation of flexible programmable controllers in automation applications.
Properties
- NXP i.MX6ULL Cortex-A7 32-bit processor, 792 MHz
- 512 MB DDR3L memory
- 8 GB eMMC memory
- Connectivity modules: Wi-Fi 802.11b/g/n, Bluetooth BLE (with external antenna)
- Wired interfaces:
- 2 x RS232
- 1 x RS485
- 1 x CAN-FD
- 4 x USB 2.0
- 1 x Ethernet 10/100 Mb/s
- 4 digital inputs (IEC 61131-2 TYPE 1)
- 4 digital outputs (high-state)
- 2 relay outputs NC-C-NO
- MicroSD slot
- USB-OTG port for programming eMMC
- Linux system console
- RTC with battery backup
- Indicators: 4 LED diodes
- Power supply 10–24 VDC
- Aluminum enclosure IP40
- Operating temperature: −30…+70°C (with Wi-Fi/BLE module)
- Dimensions: 46 x 60 x 17 mm
- Compatibility with OpenPLC
