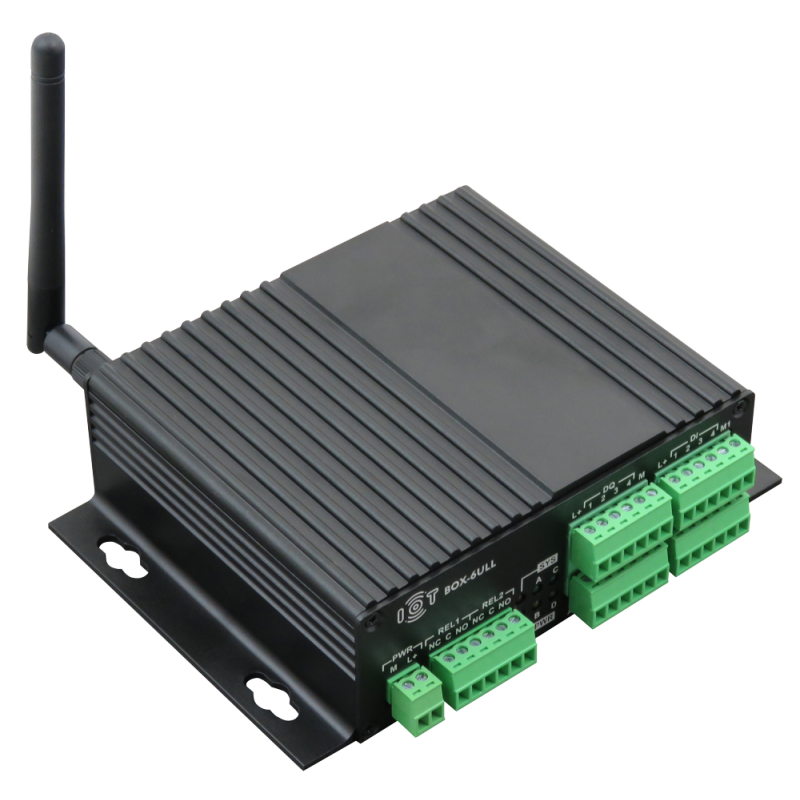

SL-IOT-BOX_6ULL_512R_08GE_0SF_I – Industrial computer based on i.MX6ULL, 512 MB RAM, 8 GB eMMC
search
  • SL-IOT-BOX_6ULL_512R_08GE_0SF_I – Industrial computer based on i.MX6ULL, 512 MB RAM, 8 GB eMMC
ID: 1194684
zł440.75
Tax included

zł358.33 tax excl.

SL-IoT-BOX_6ULL_512R_08GE_0SF_I constitutes a compact, fanless computing unit with i.MX6ULL, intended for industrial IoT applications, PLC controllers, and edge computing systems. A rich set of interfaces and support for OpenPLC enables flexible integration with modern automation installations.

Delivery date unknown
Out-of-Stock

Description

The compact industrial computer SL-IoT-BOX_6ULL_512R_08GE_0SF_I was designed for edge applications, industrial automation, and control systems. It is based on the VisionSOM-6ULL module with a 32-bit NXP i.MX6ULL (Cortex-A7) processor clocked up to 792 MHz. Equipped with 512 MB DDR3L RAM and 8 GB eMMC Flash memory, it supports Linux operating systems, including Debian and Yocto distributions.

An aluminum enclosure with IP40 protection class protects the system from contaminants in industrial environments. Power is supplied in the range of 10–24 VDC. The computer offers a wide range of communication interfaces: 2 x RS232, 1 x RS485, 1 x CAN-FD, 4 x USB 2.0, 1 x Ethernet 10/100 Mb/s, and optionally Wi-Fi and Bluetooth (BLE) with an external antenna. It also has 4 digital inputs compliant with IEC 61131-2 type 1, 4 high-state digital outputs, and 2 relay outputs NC-C-NO.

The built-in USB-OTG port allows programming of the eMMC memory, and the Linux console port simplifies software development. An RTC system with battery backup ensures accurate timekeeping in automation systems. The computer is compatible with OpenPLC, which allows flexible implementation of industrial controller functions.

Properties

  • NXP i.MX6ULL Cortex-A7 32-bit processor, clocked up to 792 MHz
  • 512 MB DDR3L memory
  • 8 GB eMMC Flash memory
  • Operating temperature range: −40…+85°C
  • Communication interfaces:
  • 2 x RS232
  • 1 x RS485
  • 1 x CAN-FD
  • 4 x USB 2.0
  • 1 x Ethernet 10/100 Mb/s
  • Optional: Wi-Fi 802.11b/g/n, Bluetooth BLE (with external antenna)
  • Inputs/outputs:
  • 4 digital inputs IEC 61131-2 TYPE 1
  • 4 digital outputs (high-state)
  • 2 relay outputs (NC-C-NO)
  • RTC with battery backup
  • LED indicators (4 diodes)
  • USB-OTG port for eMMC programming
  • Integrated Linux console
  • MicroSD slot
  • Power supply 10–24 VDC
  • Aluminum housing IP40
  • Dimensions: 46 x 60 x 17 mm
  • Compatibility with OpenPLC
1194684

Manufacturer SOMLABS SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ Lwowska 5 05-120 Legionowo Poland somlabs@somlabs.com

Responsible person SOMLABS SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ Lwowska 5 05-120 Legionowo Poland somlabs@somlabs.com
