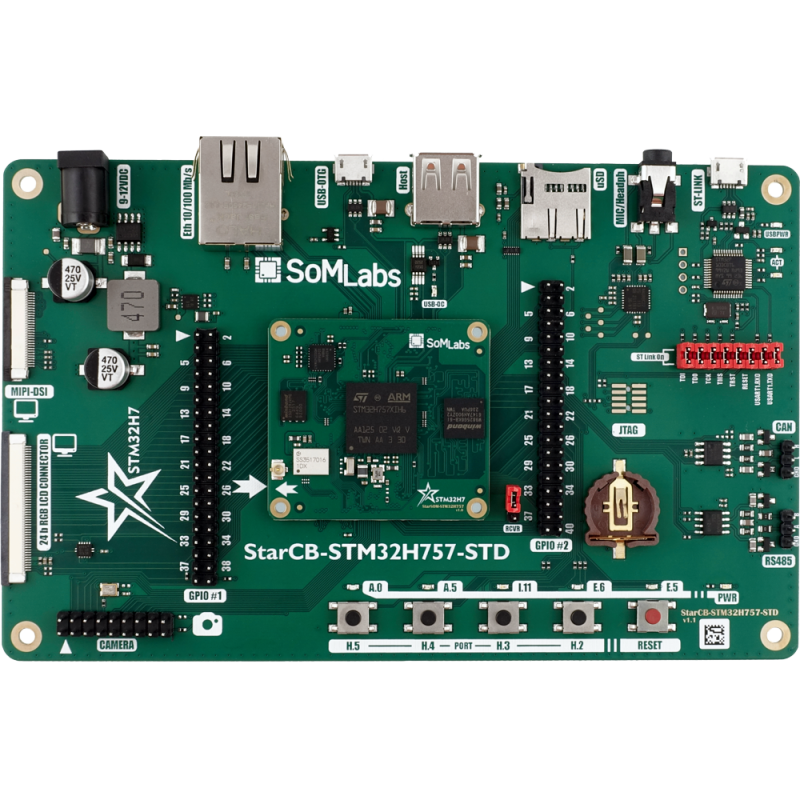

StarCB-STM32H757-STD v.1.1 - Base board for StarSOM-STM32H757 modules
ID: 1194980
zł136.95
Tax included
zł111.34 tax excl.
The StarCB-STM32H757-STD base board enables the construction of comprehensive embedded systems based on StarSOM modules with the STM32H757XI microcontroller. With a wide range of communication, multimedia, and debugging interfaces, it is suitable for both prototype applications and turnkey solutions for industrial automation and IoT systems. SomLabs StarCB-STM32H757-STD v.1.1
Description
The StarCB-STM32H757-STD base board, designed for use with StarSOM-STM32H757 single-board computer modules with the STM32H757XI microcontroller (ARM Cortex-M7 + Cortex-M4), enables rapid startup and prototyping of embedded applications. Communication with the module is via two low-profile 100-pin board-to-board connectors. Integrated communication interfaces, including 10/100 Mbps Ethernet, USB 2.0 Host and OTG, RS485 serial, and CAN bus, provide extensive integration with external devices. The board also offers extensive multimedia features, including a 24-bit audio codec with headphone output, support for MIPI-DSI and RGB displays, and support for parallel cameras.
The built-in ST-Link interface and JTAG connector enable debugging without the need for external programmers. The board is equipped with a microSD connector, powered by 9–12 V DC, and designed for operation in a temperature range of 0°C – +70°C. Its compact dimensions (160 × 100 × 21 mm) make it suitable for use as both a complete development platform and a standalone component in endpoint devices for IoT systems and industrial automation.
Features
- SoM Connector
- 2 x 100-pin board-to-board connectors (low profile)
- Compatible with StarSOM-STM32H757 modules with the STM32H757XI microcontroller
- Programming and Debugging
- 10-pin 0.05" JTAG connector
- Onboard ST-Link debug interface
- Expansion and communication connectors
- MicroSD slot
- Ethernet 10/100 Mb/s (RJ45)
- USB 2.0 Host (Type A)
- USB OTG (microUSB)
- CAN interface (1 channel)
- RS485 (half-duplex)
- Serial console (microUSB, virtual COM via ST-Link)
- Display and camera
- MIPI-DSI (30-pin FFC/FPC connector)
- 24-bit parallel RGB interface (50-pin FFC/FPC connector)
- Camera interface: 2x9-pin (parallel, 10-bit DCAM)
- Audio
- NAU88C22YG 24-bit audio codec
- Headphone output
- User interface
- 5 buttons
- 5 LEDs
- Power supply
- DC connector
- Supply voltage range: 9–12 V DC
- Operating conditions and dimensions
- Operating temperature range: 0°C – +70°C
- Dimensions: 160 × 100 × 21 mm
