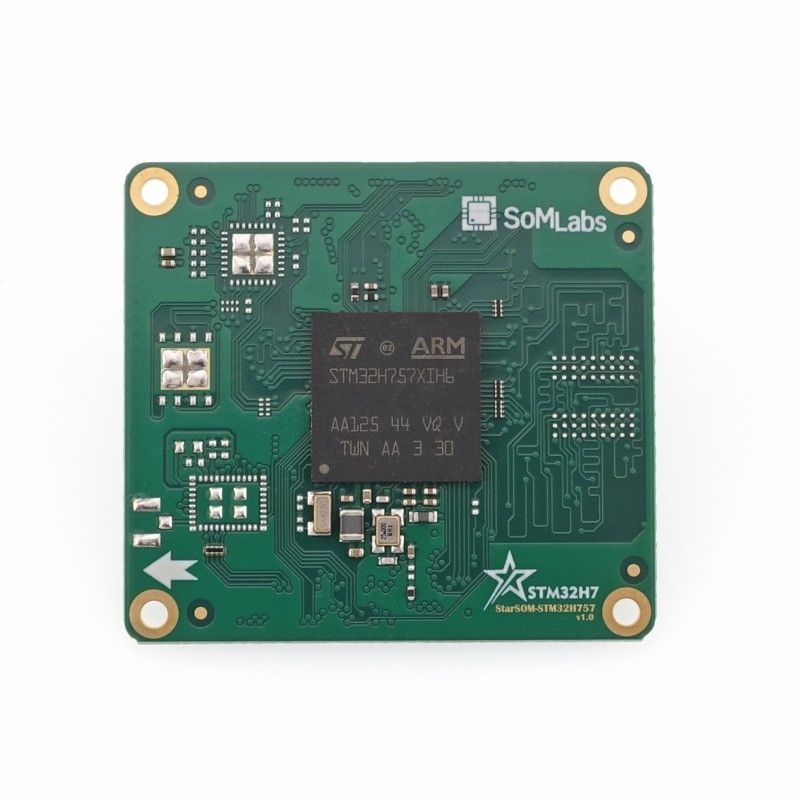

StarSOM STM32H757 SoM module – base version
search
  • StarSOM STM32H757 SoM module – base version
ID: 1197380
zł150.55
Tax included

zł122.40 tax excl.

The StarSOM SLS05H757 module in the base version, without additional external memory, constitutes an energy-efficient and compact computing solution based on the STM32H757 for industrial, IoT, and real-time systems applications. StarSOM SLS05H757_480C_0R_0QSPI_0SF_I

24h
Available
Available quantity: 29

Description

The StarSOM SLS05H757 system-on-module based on the STM32H757 microcontroller with two ARM cores Cortex-M7 and Cortex-M4. The Cortex-M7 core operates at a frequency of up to 480 MHz, and the Cortex-M4 up to 240 MHz, which provides high computing performance and support for real-time applications. The base version of the module is equipped only with the memories built into the STM32H757 chip – 2 MB Flash and 1 MB RAM.

The module offers a rich set of communication interfaces (UART, SPI, I²C, CAN-FD, USB 2.0 OTG) and support for displays with MIPI-DSI interface. The built-in Chrom-ART graphics accelerator and hardware JPEG codec enable efficient image and graphics handling. Security functions include hardware support for AES, SHA, HMAC, DES/3DES, and a random number generator. The module is adapted to operate in the industrial temperature range –40…+85 °C, constituting an energy-efficient solution for embedded systems, IoT, and control devices.

Properties

  • Processor: STM32H757, Cortex-M7 up to 480 MHz + Cortex-M4 up to 240 MHz
  • On-chip memory: 2 MB Flash, 1 MB RAM
  • External memory: none (base version, without SDRAM and QSPI Flash)
  • 5× UART
  • 6× SPI
  • 4× I²C
  • 2× CAN-FD
  • 2× USB 2.0 OTG
  • Audio: 4× SAI, SPDIF, DFSDM (8 channels, 4 filters)
  • Analog: 3× 16-bit ADC (36 channels), 2× 12-bit DAC, 2× comparators, 2× operational amplifiers
  • GPU: Chrom-ART, JPEG codec, support for MIPI-DSI displays (up to 1024×768)
  • Security: AES-128/192/256, SHA-1/2, HMAC, DES/3DES, RNG
  • Power supply: 3.3 V DC
  • Dimensions: 40 × 44 × 5 mm, board-to-board connectors 2×100 pins
  • Operating temperature range: –40…+85 °C
  • Supported systems: FreeRTOS
1197380

Data sheet

Core
Cortex-M7+M4
Frequency
240 MHz / 480 MHz
RAM
1 MB
WiFi/BT module
No
Permanent memory
None
Connector
2x 100 pin board-to-board
Processor
STM32H757
Operating temperature
-40..+85°C
