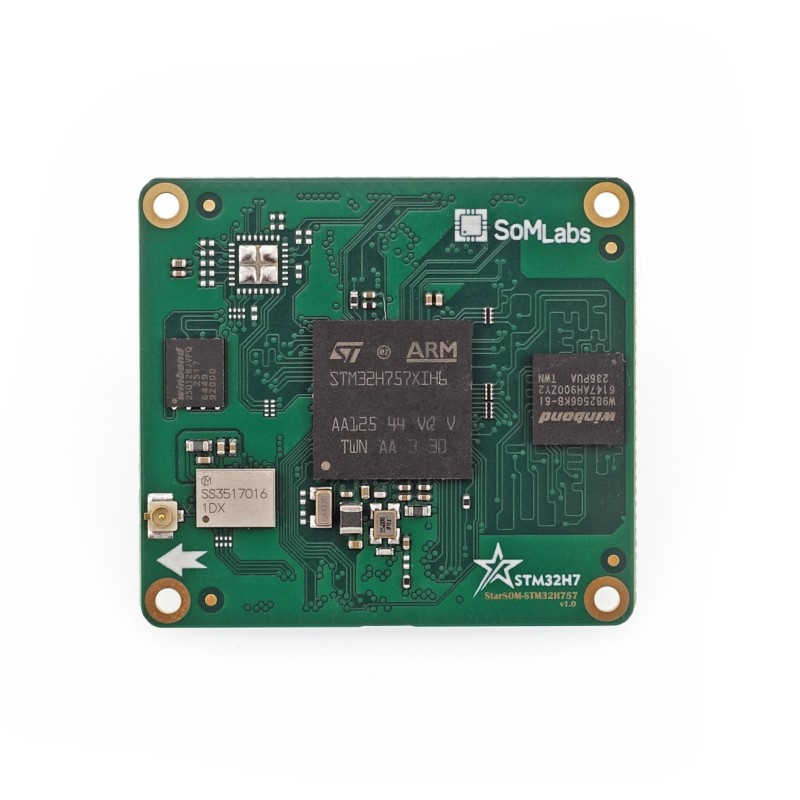

The StarSOM STM32H757 module with 32 MB SDRAM, 16 MB QSPI Flash, and built-in Wi-Fi/BLE 5.1 connectivity is a compact computing platform for IoT systems, HMI, and real-time applications in an extended temperature range. StarSOM SLS05H757_480C_32R_16QSPI_1WB_E

24h
Available
Available quantity: 25

Description

The StarSOM STM32H757 system-on-module in the version with extended memory and wireless communication. It is based on the STM32H757 microcontroller with ARM Cortex-M7 (up to 480 MHz) and Cortex-M4 (up to 240 MHz) cores. In addition to the memories built into the chip (2 MB Flash, 1 MB RAM), the module is equipped with 32 MB of external SDRAM and 16 MB of QSPI Flash, which enables the running of more complex applications.

This version includes the Murata 1DX module, which provides Wi-Fi 802.11 b/g/n and Bluetooth 5.1 LE connectivity. Support for the MIPI-DSI interface along with the Chrom-ART GPU and hardware JPEG codec allows the module to be used in graphical and HMI applications. The module offers a wide set of communication interfaces such as UART, SPI, I²C, CAN-FD, and USB 2.0 OTG, as well as advanced hardware security mechanisms (AES, SHA, HMAC, DES/3DES, RNG).

Adapted for operation in the extended temperature range –30…+70 °C, the module is suitable for industrial applications, IoT, and devices requiring low power consumption and built-in wireless communication.

Properties

  • Processor: STM32H757, Cortex-M7 up to 480 MHz + Cortex-M4 up to 240 MHz
  • On-chip memory: 2 MB Flash, 1 MB RAM
  • Additional memory: 32 MB SDRAM, 16 MB QSPI Flash
  • 5× UART
  • 6× SPI
  • 4× I²C
  • 2× CAN-FD
  • 2× USB 2.0 OTG
  • Audio: 4× SAI, SPDIF, DFSDM (8 channels, 4 filters)
  • Analog: 3× 16-bit ADC (36 channels), 2× 12-bit DAC, 2× comparators, 2× operational amplifiers
  • GPU: Chrom-ART, hardware JPEG codec, support for MIPI-DSI displays (up to 1024×768)
  • Wireless network: Murata 1DX – Wi-Fi 802.11 b/g/n + Bluetooth 5.1 LE
  • Security: AES-128/192/256, SHA-1/2, HMAC, DES/3DES, RNG
  • Power supply: 3.3 V DC
  • Dimensions: 40 × 44 × 5 mm, board-to-board connectors 2×100 pins
  • Operating temperature range: –30…+70 °C (extended version)
  • Supported systems: FreeRTOS
1197378

Data sheet

Core
Cortex-M7+M4
Frequency
240 MHz / 480 MHz
RAM
1 MB
WiFi/BT module
Yes
Permanent memory
QSPI 16MB
Connector
2x 100 pin board-to-board
Processor
STM32H757
Operating temperature
-30..+70°C
