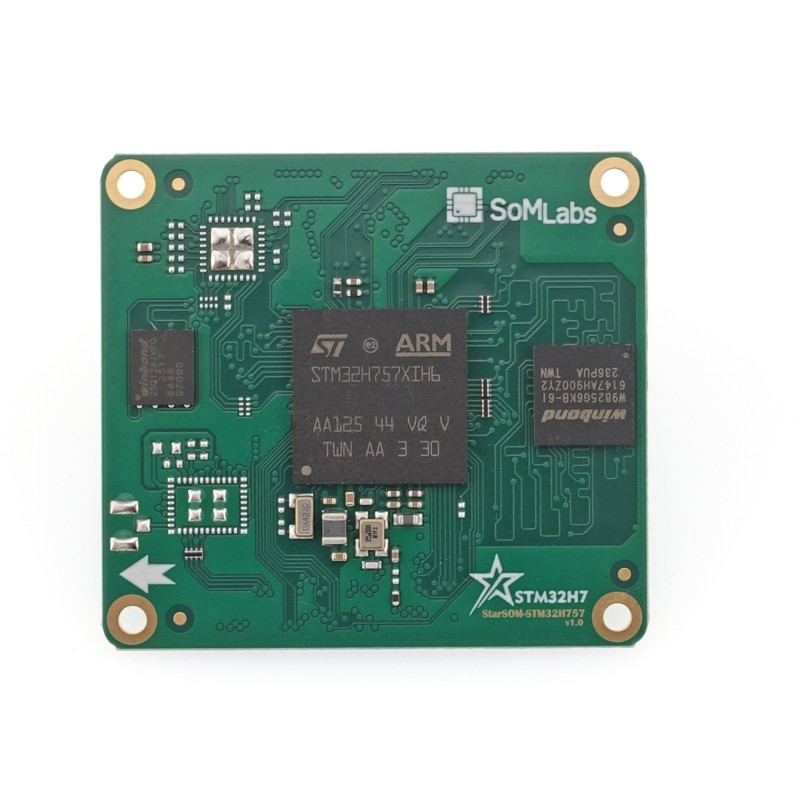

StarSOM STM32H757 SoM module - 32 MB SDRAM and 16 MB QSPI
ID: 1197388
zł182.75
Tax included
zł148.58 tax excl.
The StarSOM STM32H757 module with 32 MB SDRAM and 16 MB QSPI Flash provides additional memory space for real-time, graphic, and communication applications, combining high performance and energy efficiency in a compact format. StarSOM SLS05H757_480C_32R_16QSPI_0SF_I
Description
The StarSOM STM32H757 system-on-module in the extended memory version, equipped with the STM32H757 microcontroller with two ARM cores Cortex-M7 and Cortex-M4. The Cortex-M7 core operates at a frequency of up to 480 MHz, and the Cortex-M4 up to 240 MHz, providing high computing performance and support for real-time applications. In this variant, the module offers 2 MB of Flash memory and 1 MB of RAM built into the MCU, plus 32 MB of external SDRAM and 16 MB of QSPI Flash for storing applications and data.
A rich set of communication interfaces includes UART, SPI, I²C, CAN-FD, and USB 2.0 OTG. The built-in Chrom-ART graphics accelerator and hardware JPEG codec enable efficient image and graphics handling with the use of the MIPI-DSI interface. Security functions support, among others, AES, SHA, HMAC, DES/3DES, and a random number generator. The module is designed to operate in industrial conditions (–40…+85 °C), making it suitable for IoT applications, controllers, and embedded systems requiring higher memory capacity.
Properties
- Processor: STM32H757, Cortex-M7 up to 480 MHz + Cortex-M4 up to 240 MHz
- On-chip memory: 2 MB Flash, 1 MB RAM
- Additional memory: 32 MB SDRAM, 16 MB QSPI Flash
- 5× UART
- 6× SPI
- 4× I²C
- 2× CAN-FD
- 2× USB 2.0 OTG
- Audio: 4× SAI, SPDIF, DFSDM (8 channels, 4 filters)
- Analog: 3× 16-bit ADC (36 channels), 2× 12-bit DAC, 2× comparators, 2× operational amplifiers
- GPU: Chrom-ART, hardware JPEG codec, support for MIPI-DSI displays (up to 1024×768)
- Security: AES-128/192/256, SHA-1/2, HMAC, DES/3DES, RNG
- Power supply: 3.3 V DC
- Dimensions: 40 × 44 × 5 mm, board-to-board connectors 2×100 pins
- Operating temperature range: –40…+85 °C
- Supported systems: FreeRTOS
1197388
Data sheet
- Core
- Cortex-M7+M4
- Frequency
- 240 MHz / 480 MHz
- RAM
- 1 MB
- WiFi/BT module
- No
- Permanent memory
- QSPI 16MB
- Connector
- 2x 100 pin board-to-board
- Processor
- STM32H757
- Operating temperature
- -40..+85°C
Manufacturer SOMLABS SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ Lwowska 5 05-120 Legionowo Poland somlabs@somlabs.com
Responsible person SOMLABS SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ Lwowska 5 05-120 Legionowo Poland somlabs@somlabs.com
