BlueTile – Bluetooth sensor evaluation module with BlueNRG-2 SoC
ID: 587974
5902186303188
zł246.00
Tax included
zł200.00 tax excl.

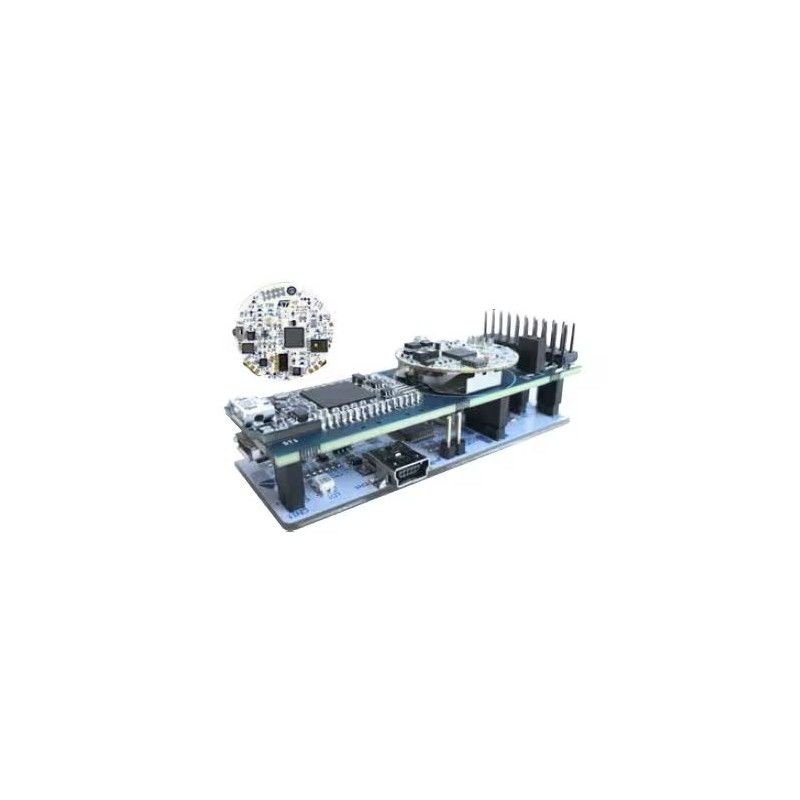

BlueTile – evaluation board with MEMS sensors and Bluetooth LE for IoT applications. STMicroelectronics STEVAL-BCN002V1B
Description
The BlueTile development kit with Bluetooth Low Energy support includes the STEVAL-BCN002V1 multi-sensor board based on the BlueNRG-2 SoC. The sensor board features an accelerometer, gyroscope, magnetometer, pressure and humidity sensors, a long-range ToF sensor, and a MEMS microphone. It also has a slot for a standard CR2032 coin cell battery.
The kit also includes the dedicated STEVAL-BCN002V1D programmer board, used for programming and debugging the sensor board. It is powered via USB and also supplies power to the sensor board.
The board communicates with a Bluetooth LE-enabled smartphone via the ST BLE Sensor app, available on Google Play and the App Store.
Features
- Evaluation kit includes the STEVAL-BCN002V1 sensor board and STEVAL-BCN002V1D programming board
- STEVAL-BCN002V1 sensor board:
- BlueNRG-2 SoC: Bluetooth Low Energy single-mode SoC
- BALF-NRG-02D3: ultra-miniature balun with harmonic filter
- LSM6DSO: ultra-low-power, high-precision iNEMO 6DoF inertial module
- LIS2MDL: digital 3-axis magnetometer, 50-gauss range, low power
- VL53L1X: long-range Time-of-Flight sensor based on ST FlightSense
- MP34DT05TR-A: omnidirectional digital MEMS microphone, 64 dB SNR, –26 dBFS sensitivity, top-port, 122.5 dBSPL AOP
- LPS22HH: ultra-compact piezoresistive absolute pressure sensor, 260–1260 hPa
- HTS221: capacitive digital relative humidity and temperature sensor
- Powered by CR2032 battery (not included)
- STEVAL-BCN002V1D programming board:
- Allows firmware programming and debugging of the sensor board
- Provides power supply via USB
- ST BLE Sensor app available for Android and iOS for real-time sensor data visualization
