KAmeleon-STM32L4 - starter kit with microcontroller STM32L496ZGT6, (EDU) - academic offer
ID: 569792
5906623495559
zł249.00
Tax included
zł202.44 tax excl.
Development kit with STM32L496ZGT6 microcontroller with built-in ST-Link programmer. Extensive equipment, including: MEMS 6DoF sensor, motor controller, joystick, LED display, 8 LED diodes, RGB LED, audio amplifier, Flash memory QSPI 1 MB, microphone.
The offer is intended only for academic recipients (students and university lecturers)!
When placing an order, please provide:
- first and last name of the user
- position
- user's e-mail address (e-mail address must be from the university's domain)
- full name of the university
- name of the faculty / institute / didactic facility
- university address
- college website
- phone
Description
KAmeleon is a development kit with STM32L496ZGT6 microcontroller (ARM Cortex-M4) which is a complete platform for learning programming. The extensive equipment and library supporting all built-in peripherals enable the use of an efficient ARM microcontroller, easily comparable to Arduino. The set has a built-in programmer / debugger ST-Link with a micro-USB port, micro-USB cable is included, so you just need to attach the kit to the computer and start the programming adventure (if using the motor controller it is recommended to use the 12 V power supply included with DC sockets or terminal). The producer has also prepared sample programs that show how to use all the elements that the board is equipped with. An additional advantage of KAmeleon is the connector designed to connect the Analog Discovery 2 analyzer / oscilloscope, thanks to which you can "view" the microcontroller line states.
Attention!
The 2x16 LCD display shown in the photos is not included. It can be purchased separately.
The 2x16 LCD display shown in the photos is not included. It can be purchased separately.
properties
- STM32L496ZGT6 microcontroller, 1 MB Flash memory, 320 kB SRAM memory, 80 MHz
- Built-in ST-Link programmer
- A 30-pin connector for analyzing microcontroller line states using Analog Discovery 2
- DC STSPIN250 motor controller
- QSPI W25Q80DV Flash memory with a capacity of 1 MB
- Sensor MEMS LSM303C - 6 DoF accelerometer and magnetometer
- DCMI camera connector
- Connector for the WiFi ESP-01 module
- Connector for Pmod modules with SPI interface
- FMC connector for LCD displays
- Temperature sensor STLM75M2F
- joystick
- MEMS MP23AB02B microphone with signal level control and TSV912AIST amplifier
- TS4990IST audio amplifier
- USB-OTG micro-USB socket
- Arduino compatible connector with the possibility of connecting shields supplied with 3.3 and 5 V voltages
- KAmod SPI and KAmod I2C connectors for KAmod series modules
- 8 LEDs
- RGB LED
- 4-digit 7-segment LED display
- 2x16 LCD display connector with HD44780 controller (display not included)
- Power through the micro-USB socket ST-Link programmer / debugger, DC jack or terminal
- Dimensions: 175 x 160 x 25 mm
Included
- KAmeleon development board (without LCD display)
- Micro-USB cable
569792
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
LCD character display 2x16, 1x16 pin header for evaluation boards
zł39.90
24h
Available quantity: 58
Available
Alphanumeric LCD display 2x16 with a pin connector, gray signs, green-yellow background
zł27.55
24h
Available quantity: 9
Available
Alphanumeric LCD 2x16 display with a pin connector, white characters, blue background
zł24.12
24h
Available quantity: 10
Available
Alphanumeric LCD 2x16 display with a pin connector, white characters, black background
zł33.94
24h
Available quantity: 10
Available
Alphanumeric LCD 2x16 display with a pin connector, blue signs, black background
zł34.90
Delivery date unknown
No product available!
Alphanumeric LCD 2x16 display with a pin connector, red signs, black background
zł31.28
Delivery date unknown
No product available!

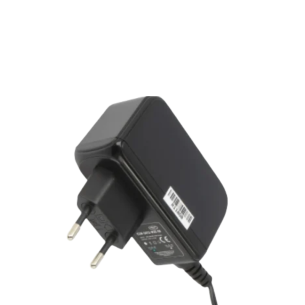

Switched-mode AC Power supply 12V/2A with DC 5.5x2.1 connector and EU plug. It has anti-overload, anti-overvoltage, short circuit protection. Conform to the norm Energy efficiency Level V. Length of output cable is 1.2m
