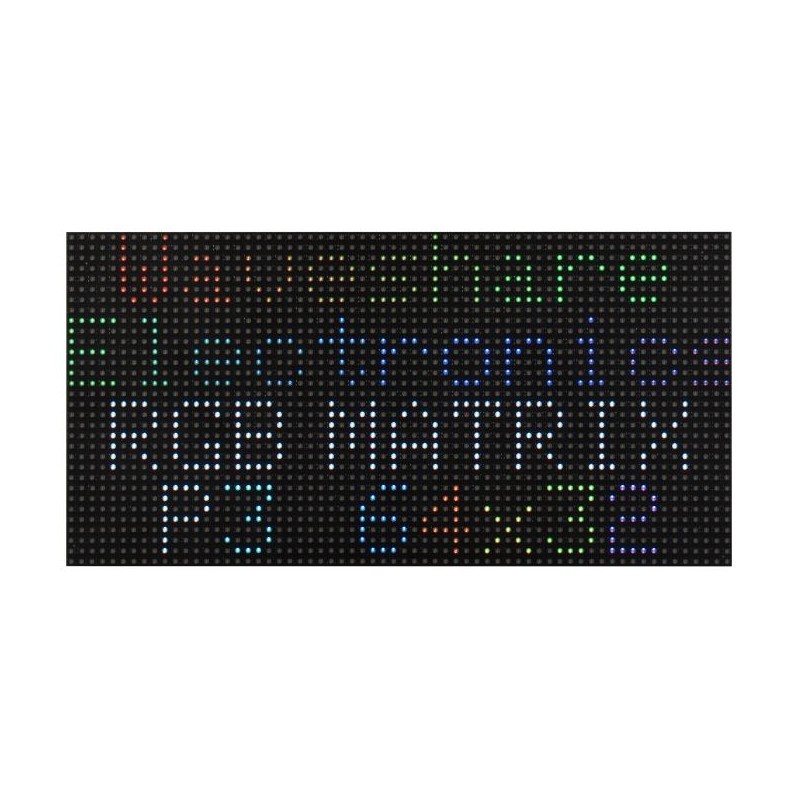

Main view
search
  • Main view
  • Top view
  • Bottom view
  • Angled view
ID: 1204162
zł115.63
Tax included

zł94.01 tax excl.

Full-color RGB LED matrix with a resolution of 64 × 32 pixels and a 3 mm pitch, equipped with 2048 RGB LEDs. The GOB (Smooth Surface) version features an additional protective layer that increases mechanical durability and panel lifespan. The module supports brightness adjustment and allows multiple panels to be chained into larger displays via HUB75 connectors (input/output). Requires an external controller (e.g. Raspberry Pi Pico, ESP32, Arduino) and a 5 V power supply. Waveshare RGB-Matrix-P3-64x32-B

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

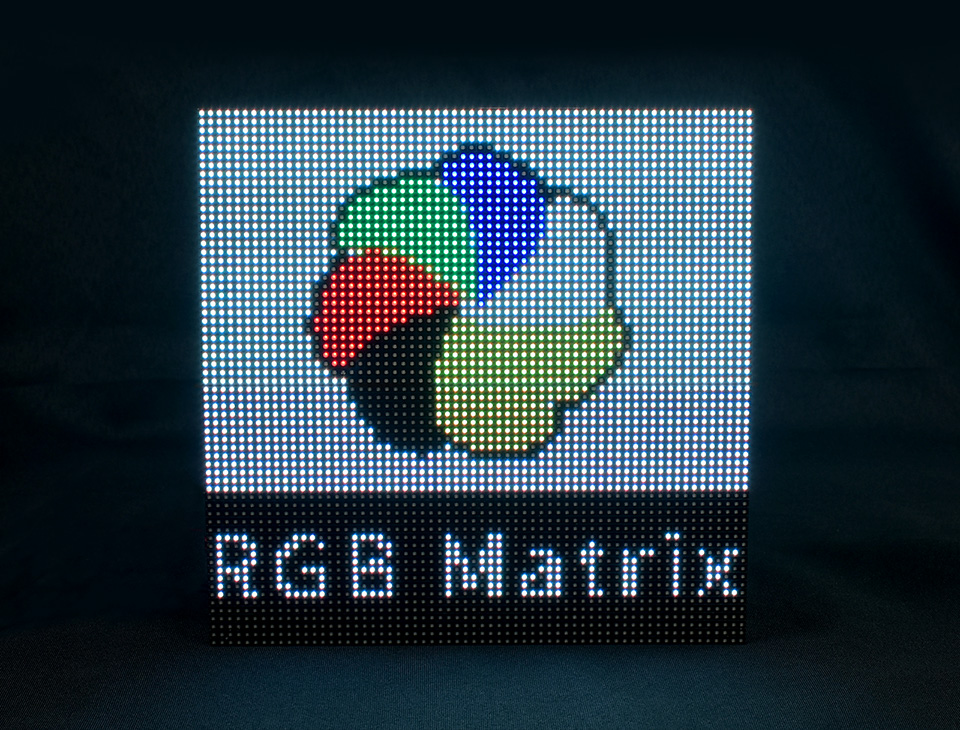

RGB-Matrix-P3-64x32-B is an LED display module designed for building information boards, decorative screens and DIY electronic projects. The panel offers a resolution of 64 × 32 pixels with a 3 mm pitch, allowing the display of text, colorful graphics and animations.

                                                                                                                  Displays connected in cascade (chained)


The GOB (Glue On Board) version is protected with an additional protective layer covering the LED surface. This solution increases resistance to mechanical damage, protects against moisture and dust, and improves panel durability while providing a smooth surface finish.

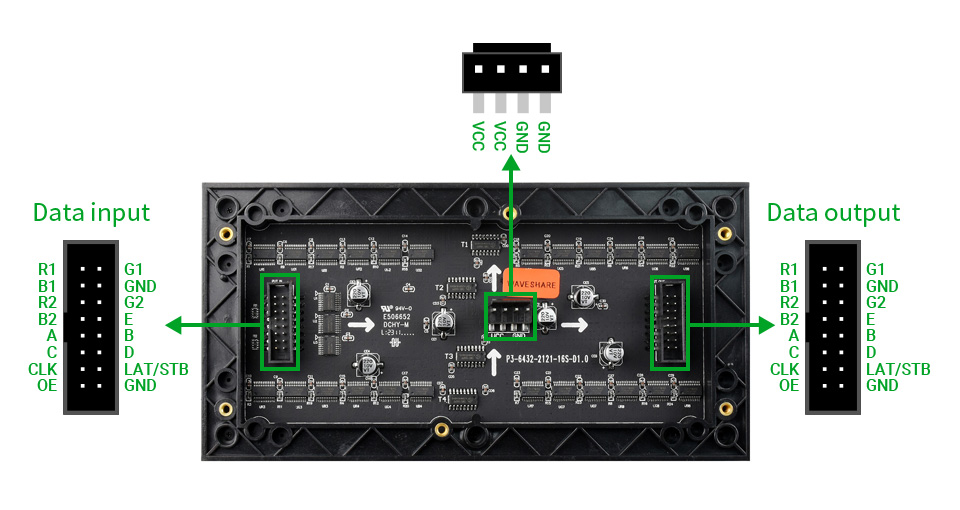

The panel features dual HUB75 connectors (DATA IN / DATA OUT) allowing multiple modules to be chained together to create a larger display area. It supports synchronous control mode and 1/16 scanning, ensuring stable operation and proper image rendering.


The panel design allows integration with popular hardware platforms used in electronic projects such as Raspberry Pi Pico, ESP32 and Arduino. The module does not include a built-in controller, therefore an external control system and a 5 V power supply with adequate current capacity are required for operation.


Features

  • Resolution: 64 × 32 pixels (2048 RGB dots)
  • Pitch: 3 mm

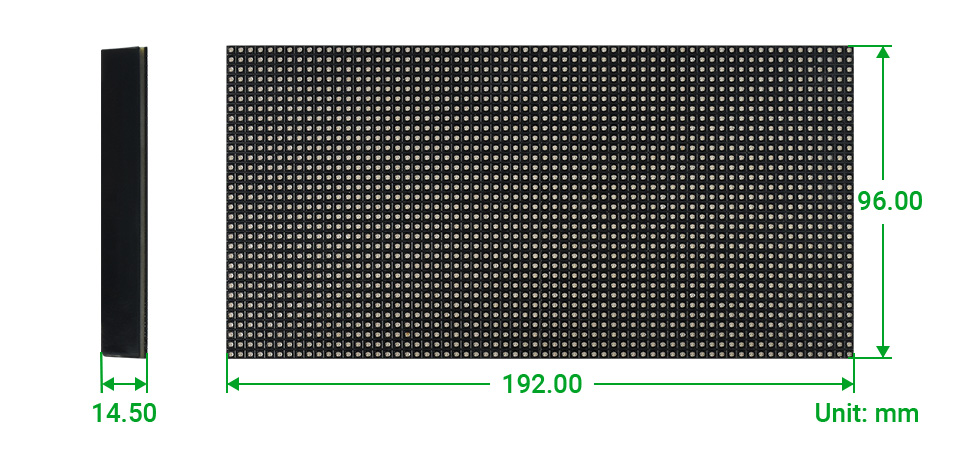

  • Dimensions: 192 × 96 mm
  • Adjustable brightness
  • GOB technology - smooth surface and increased durability
  • Dual HUB75 connectors (input/output) - panel chaining support
  • Control type: synchronous
  • Scan mode: 1/16
  • Viewing angle: ≥160°
  • Power supply: 5 V / min. 2.5 A (recommended 5 V / 4 A)
  • Maximum power consumption: ≤12 W

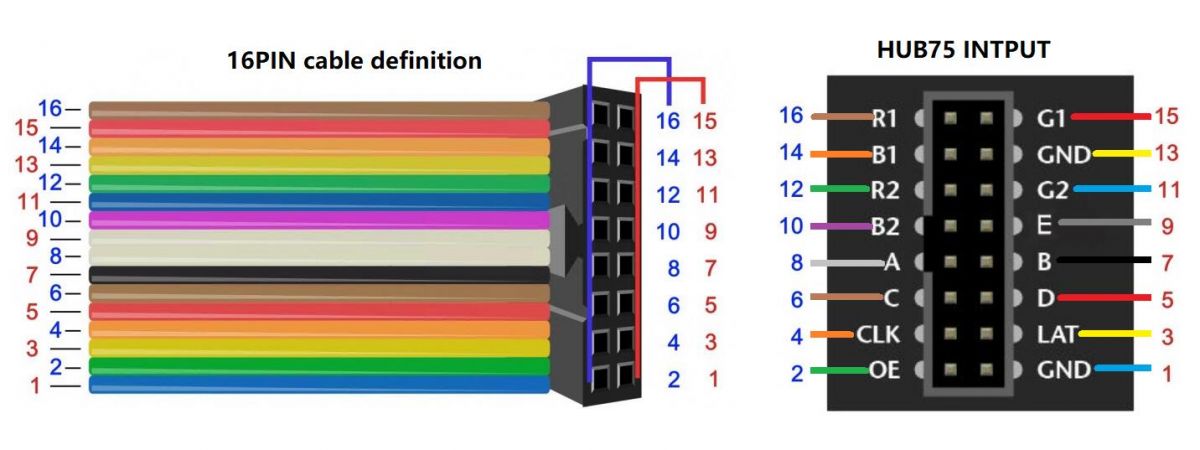

  • Signal interface: R1/R2, G1/G2, B1/B2, A-D, CLK, LAT/STB, OE

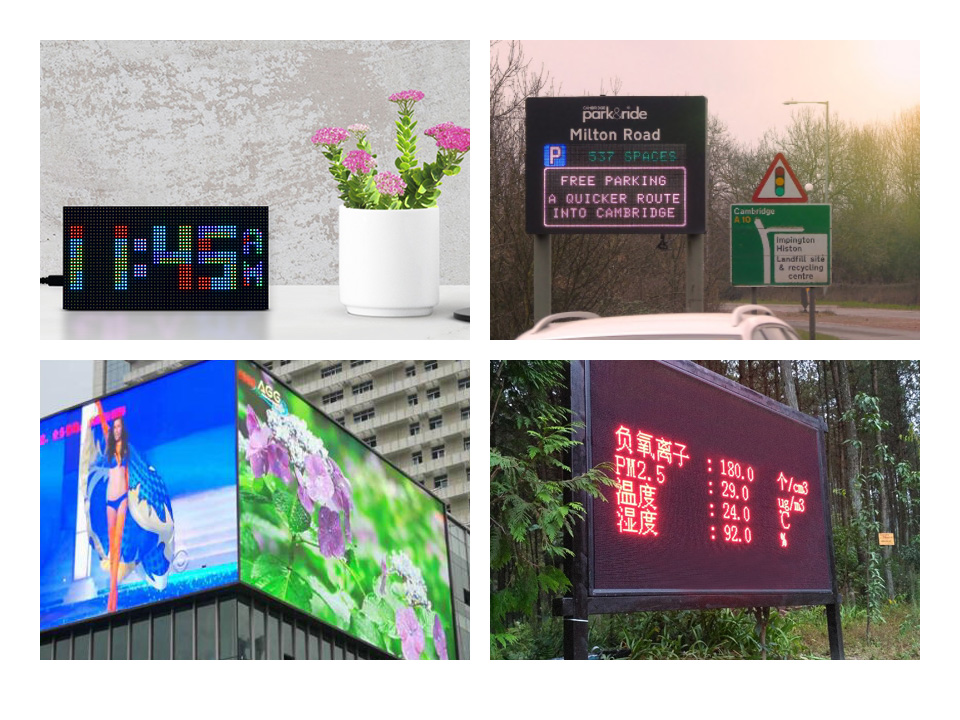

  • Application: DIY displays, information boards, educational projects, monitoring systems, advertising installations
  • External controller required (not included)

Kit includes

  • RGB-Matrix-P3-64x32-B (GOB version) ×1
  • VH4 2 PIN cable (~500 mm) ×1
  • 16 PIN flat cable (~200 mm) ×1
  • Power supply terminal adapter ×1
  • 2 × 8 PIN cable (~30 cm) ×1
  • Magnetic screws pack (4 pcs) ×1
