ID: 1204692
zł329.00
Tax included

zł267.48 tax excl.

A multi-functional device combining a 7000 mAh power bank with LoRa communication based on the Meshtastic protocol, enabling the creation of a decentralized mesh network without internet access. Equipped with a Semtech LR1110 module, an nRF52840 microcontroller, and built-in GPS supporting multiple navigation systems, it allows for messaging and real-time location sharing. It offers fast charging up to 22.5W, PD, QC, and PPS support, and MagSafe-compatible wireless charging. Elecrow LMM14004D1

4 weeks
Awaiting delivery

Description

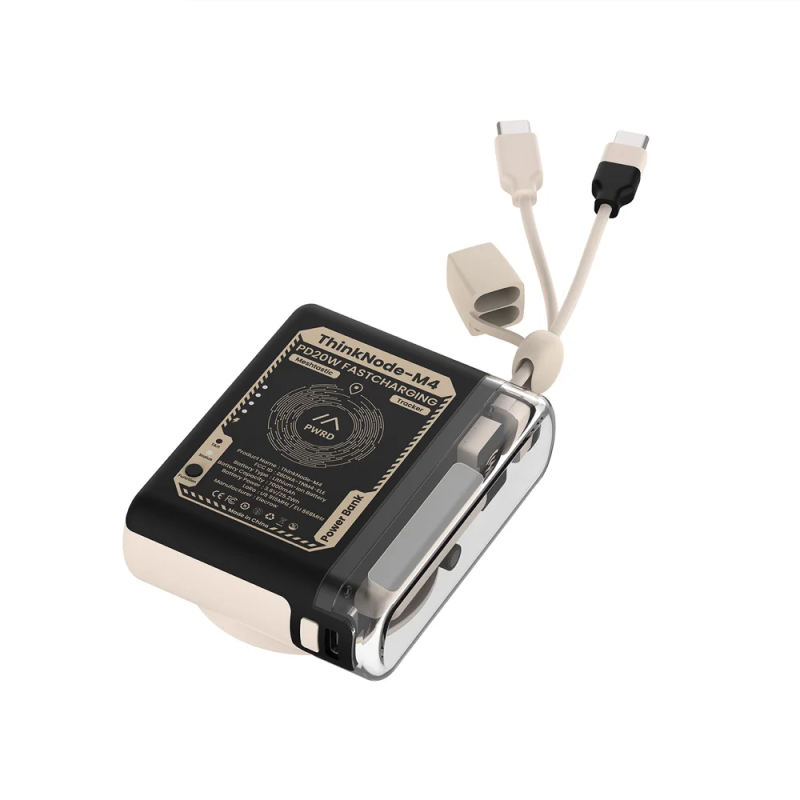

ThinkNode M4 Power Bank is an innovative device that combines a portable power source with advanced wireless communication based on the Meshtastic protocol and LoRa technology. With an integrated communication module, precise GPS system, and high-capacity battery, it provides a complete solution for users operating in the field, especially in areas without cellular or Internet access. ThinkNode M4 enables the creation of a decentralized mesh network, where each device acts as a communication node, allowing two-way communication, including text messaging and real-time location sharing without network infrastructure. The built-in Semtech LR1110 module supporting 868 MHz and 915 MHz bands ensures stable long-range communication, while the nRF52840 chip delivers efficient performance and low power consumption.


The device features a high-sensitivity GPS module supporting GPS, BeiDou, GLONASS, and QZSS, enabling accurate positioning and route tracking. Location sharing via Meshtastic/LoRaWAN makes it ideal for outdoor applications such as expeditions, rescue operations, and asset tracking. Additionally, it includes temperature and humidity sensors and a 6-axis gyroscope for monitoring environmental conditions and movement. The rugged enclosure made of ABS + PC + TPE ensures durability in harsh environments, while the built-in LED flashlight with multiple modes enhances usability in emergency situations.

As a power bank, the device offers a 7000 mAh battery and supports multiple fast charging protocols including PD, QC, PPS, AFC, SCP, and FCP. The maximum output power reaches 22.5 W, allowing fast charging of smartphones, tablets, and other electronic devices. ThinkNode M4 also supports wireless charging and is compatible with MagSafe. By combining power supply, communication, and positioning features, ThinkNode M4 is an ideal solution for outdoor enthusiasts, rescue teams, users in remote locations, and IoT projects, providing independence, safety, and reliable communication in any environment.

Features

  • Meshtastic protocol support (infrastructure-free mesh network)
  • LoRa technology for long-range communication
  • Communication chip: Semtech LR1110
  • Microcontroller: nRF52840 (Nordic)
  • RAM: 256 KB
  • Flash memory: 3 MB (including external)
  • Built-in GPS module (GPS / BeiDou / GLONASS / QZSS)
  • Real-time location sharing
  • Bluetooth 5.4 Low Energy (smartphone configuration)
  • Battery: 18650 Li-Ion, 7000 mAh (25.2 Wh)
  • Rated capacity: 3800 mAh (5V/3A)
  • Maximum output power: 22.5 W
  • Fast charging support: PD3.1, QC2.0/QC3.0/QC3+, PPS, AFC, SCP, FCP
  • Wireless charging: 5W / 7.5W / 10W / 15W
  • MagSafe compatibility
  • USB-C port: input/output (5V/3A, 9V/2A, 12V/1.5A)
  • Simultaneous charging of multiple devices
  • Smart power management and protection (overcharge, discharge, short circuit)
  • Built-in LED flashlight (modes: normal, high, SOS)
  • Sensors: temperature, humidity, 6-axis gyroscope
  • Current consumption (idle): 45 mA
  • Current consumption (sleep): 55 µA
  • Maximum operating current: TX 175 mA, RX 54 mA
  • Operating temperature: 0°C to +40°C
  • Storage temperature: -20°C to +45°C
  • Housing: ABS + PC + TPE (rugged design)
  • Dimensions: 87.3 × 67.7 × 28 mm
  • Weight: 190 g
  • Certifications: CE, FCC

Kit contains

  • ThinkNode M4 Power Bank
  • Charging cable
  • USB to USB-C adapter
  • User manual
