Servo (compatible with the Grove system)
ID: 564225
5906623414284
zł36.11
Tax included
zł29.36 tax excl.
A small servo (23 x 11.5 x 24 mm) with a weight of 8.6 g, power supply 4.8-6V, maximum torque 1.8 kg / cm (at 6V). It has a connector compatible with the Grove standard. Seeed Studio 316010005
Description
Servomechanism with small dimensions (23 x 11.5 x 24 mm) and weight only 8.6 g. Can be used in small walking robots or grippers. At 6 V, it can generate a torque of 1.8 kg / cm (0.177 Nm). It has a connector compatible with the Grove standard. The set included collarbones and assembly screws.
The servo can be used with the Base Shield V2 - shield extension with Grove connectors for Arduino
properties
- Type: Digital
- Torque for 4.8 V: 1.5 kg / cm (0.147 Nm)
- Speed for 4.8 V: 0.12 s / 60 degrees
- Torque for 6 V: 1.8 kg / cm (0.176 Nm)
- Speed for 6 V: 0.10 s / 60 degrees
- Grove connector
- Voltage: 4.8-6 volts
- Dimensions: 23 x 11.5 x 24 mm
- Weight: 8.6 g
Included
- Servo (with Grove connector)
- Set of clavicles
- Set of fixing screws
564225
Data sheet
- Gear material
- Plastic
- Torque
- 1,8 kg-cm
- Rozmiar serwa (seria)
- Micro
- Prędkość kątowa
- 0,10 s/60°
- Sprzężenie zwrotne
- Nie
- Praca ciągła 360°
- Nie
- Power supply voltage
- 4,8 - 6 V
- Weight
- 9g
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
The FS90 analog servo from FEETECH is a great general-purpose micro servo at a great price. Servo horns and associated hardware are included.
Key specs at 6 V: 0.10 sec/60°, 21 oz-in (1.5 kg-cm), 9.0 g.
zł53.27
24h
Available quantity: 3
Available
Base Shield V2 is an extension for tiles with an Arduino shield connector, it has a Grove connector, which can be connected to Grove-compatible modules / sensors. Seeedstudio 103030000
zł24.40
24h
Available quantity: 22
Available
Other products in the same category (16)
Micro type servo fitted with a metal gearbox. It is characterised by quite high durability and strength. SparkFun ROB-11887
zł239.00
3 weeks
No product available!
Micro digital servo with metal gear. It has a range of motion of 145°. EMAX ES08MDII
zł90.66
24h
Available quantity: 4
Available
Micro analog servo with plastic gear. It has a range of motion of 180°. Pololu 1050
zł40.81
24h
Available quantity: 1
Available
Micro digital servo equipped with a metal gear. Dedicated to flying models and rudder drive. FEETECH SCS2332
zł113.14
4 weeks
No product available!
Micro servo equipped with a metal gear. It is characterized by quite high durability and strength. It has an additional wire with feedback information in the form of a potentiometer position. Dedicated to small aircraft models. Pololu 3440
zł85.20
24h
Available quantity: 2
Available
The FT90R is a digital micro servo that has been built by FEETECH specifically for continuous rotation, offering an inexpensive and easy way to get your small turret spinning or miniature robot moving, especially when paired with 60×8mm wheels designed specifically for this servo.
zł73.09
24h
Available quantity: 1
Available
This is the most mini servo. Only weights 9 gram and gives you a 1.6kg.cm torque. Pretty strong regarding its size. Suitable for Beam type robot. SER0006
zł21.75
24h
Available quantity: 1
Available
Micro analog servo with plastic gear. It has a range of motion of 120° and a derived feedback output. Pololu 3436
zł73.36
4 weeks
No product available!
Power HD Micro Servo HD-1600A
zł31.07
24h
Available quantity: 2
Available
Micro analog servo with metal gear. It has a range of motion of 145°. EMAX ES08MA
zł16.06
24h
Available quantity: 6
Available
Power HD Micro Digital Servo DS65HB
zł48.40
24h
Available quantity: 1
Available
The FS90R is a micro servo that has been built by FEETECH (formerly known as Fitec) specifically for continuous rotation, offering an inexpensive and easy way to get your small turret spinning or miniature robot moving, especially when paired with our 60×8mm wheels designed specifically for this servo. Pololu 2820
zł45.21
24h
Available quantity: 5
Available
Micro analog servo with plastic gear. It has a range of motion of 180°. Pololu 1049
zł39.29
24h
Available quantity: 3
Available
Servo Tower Pro SG90 (micro) 360 degrees, size 23.0 x 12.2 x 29.0 mm, weight 9 g, power supply 4..6 V, torque 1.6 kg / cm at 4.8 V
zł8.82
24h
Available quantity: 39
Available
Programmable micro 2.3kg*cm servo controlled via UART interface. Features a metal gearbox and position and speed feedback. Waveshare SC09 Servo
zł45.25
24h
Available quantity: 12
Available

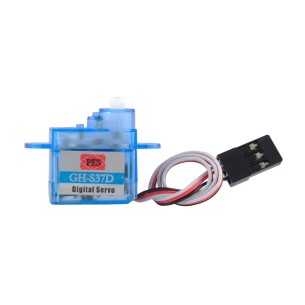

The GH-S37D micro servo with a 90° range and a mass of 3.7 g is a lightweight and efficient drive for RC models, indoor and depron constructions, educational projects and installations requiring precise control in limited space
