ID: 1201732
zł1,799.00
Tax included

zł1,462.60 tax excl.

This calibration kit for vector network analyzers provides precise calibration up to 6 GHz. It supports a standard 50 Ω impedance and features 3.5 mm female connectors compliant with IEC 60169-23. Open, Short, Load, and Thru elements ensure low loss, good phase accuracy, and high measurement repeatability. ZeenKo ZKVC06SFE

24h
Available
Available quantity: 1

Description

Zeenko ZKVC06SFE is a precision calibration kit designed for vector network analyzers (VNA), enabling accurate calibration using the SOLT method. The kit is intended for laboratory, service, and educational applications where good accuracy is required while maintaining an attractive price. It supports a frequency range of up to 6 GHz, making it a versatile tool for RF and microwave measurements. The calibrator uses a standard 50 Ω impedance, ensuring compatibility with most measurement equipment. The female 3.5 mm connectors comply with the IEC 60169-23 standard, guaranteeing high repeatability and stable connections. The OPEN, SHORT, and LOAD elements feature low reflection losses and good phase accuracy, allowing reliable measurement results even at higher frequencies. The set stands out for its robust construction made of stainless steel and copper, providing durability and mechanical resistance. The calibrator is designed for repeated use and maintains stable parameters across a wide range of environmental conditions. The included transport case facilitates safe storage and organization of the components. It is a practical and cost-effective solution for RF engineers, technicians, and high-frequency electronics enthusiasts.

Features

  • Frequency range: DC – 6 GHz
  • Impedance: 50 Ω
  • Calibration method: SOLT (Open, Short, Load, Thru)
  • Connectors: 3.5 mm female (IEC 60169-23)
  • Open:
    • Loss: ≤0.1 dB
    • Phase accuracy: ≤±1°
  • Short:
    • Loss: ≤0.1 dB
    • Phase accuracy: ≤±1°
  • Load:
    • VSWR: ≤1.03 / Return Loss ≥36 dB
    • Maximum continuous power: 0.5 W
  • Through:
    • VSWR: ≤1.05 / Return Loss ≥33 dB
  • Recommended tightening torque: 0.9 Nm
  • Connector durability: ≥500 cycles
  • Operating temperature: +15 °C to +35 °C
  • Storage temperature: -40 °C to +85 °C

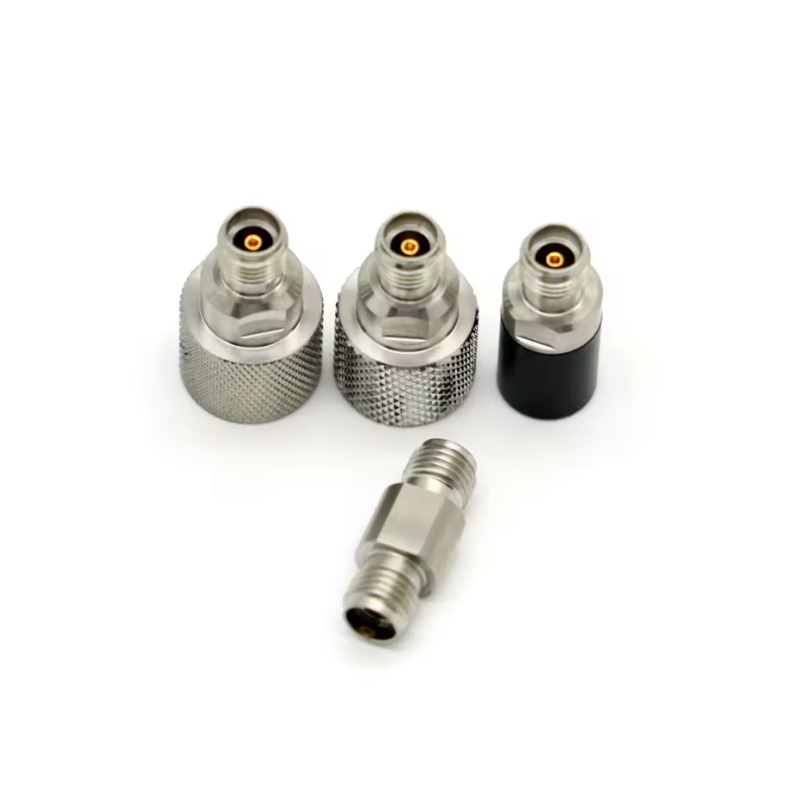

Kit contains

  • OPEN calibration standard 3.5 mm
  • SHORT calibration standard 3.5 mm
  • LOAD calibration standard 50 Ω 3.5 mm
  • THRU element 3.5 mm
  • Transport case
