NanoVNA Testboard Kit – Test board set for vector network analyzers (VNA) – Zeenko
ID: 1201370
5902186331280
zł36.90
Tax included
zł30.00 tax excl.
The Zeenko NanoVNA Testboard Kit is a flexible tool for measuring and testing RF devices in laboratory and hobby applications. Thanks to the four-layer board design and numerous connectors and components, the user can prepare a measurement setup according to their own needs. Ideal for users with experience in soldering and RF measurements.
Description
The kit is intended for use with vector network analyzers (VNA) such as the NanoVNA or similar devices, allowing measurements of DIP and SMT components as well as general RF circuit testing in a convenient and flexible manner. The design is based on a four-layer FR-4 PCB with stripline routing in the inner layer and copper fill on the outer layers, which improves immunity to unwanted coupling compared to standard two-layer boards. The set includes several mounting components (main test board, SMA connectors, standoffs, screws, a pair of 49.9 Ω resistors in 0805 package, etc.). The board is supplied unassembled — the user solders the components according to their measurement needs.
Properties
- Board material: 4-layer FR-4
- SMA connectors (female) – 6 pcs
- Copper standoffs Ø6 mm – 4 pcs
- M2.5 screws – 4 pcs
- 40-pin header sockets – 2 pcs
- 49.9 Ω calibration resistors (0805 package) – 2 pcs
- Measurement purpose: S-parameter measurements, DIP/SMT testing, RF circuits
- Compatibility with vector network analyzers: NanoVNA-compatible and other VNAs with suitable interface
- Assembly detail: components require manual soldering (no assembly guide included)
- Applications: RF path measurements, demonstrations, filter tests, cable tests, connector circuit evaluation

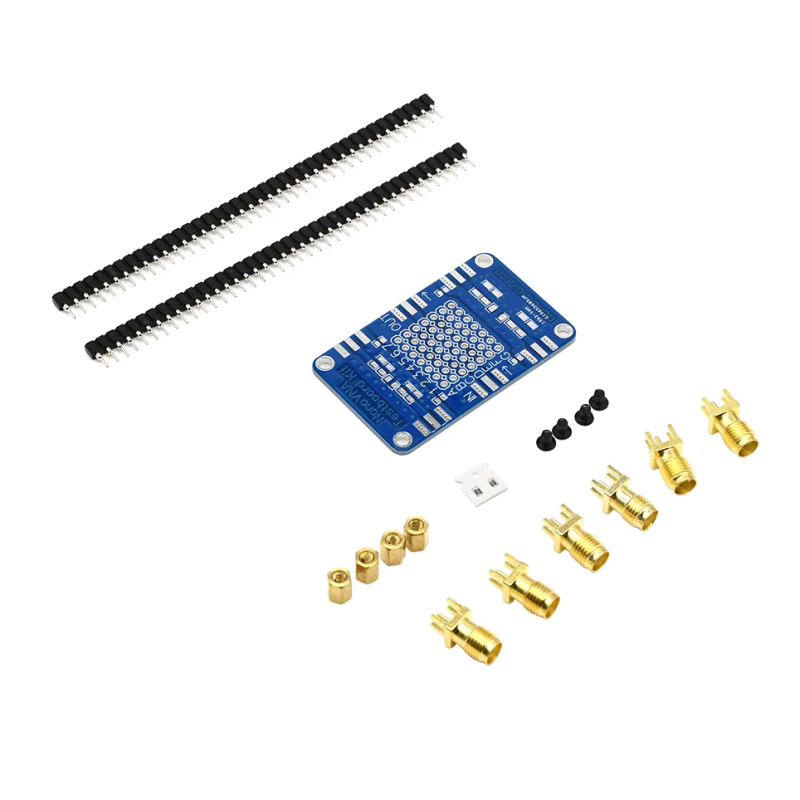

Included
- Main test board
- 6 × female SMA connector
- 4 × copper standoff Ø6 mm
- 4 × M2.5 screw
- 2 × 40-pin header socket
- 2 × 49.9 Ω resistor in 0805 package
1201370
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
