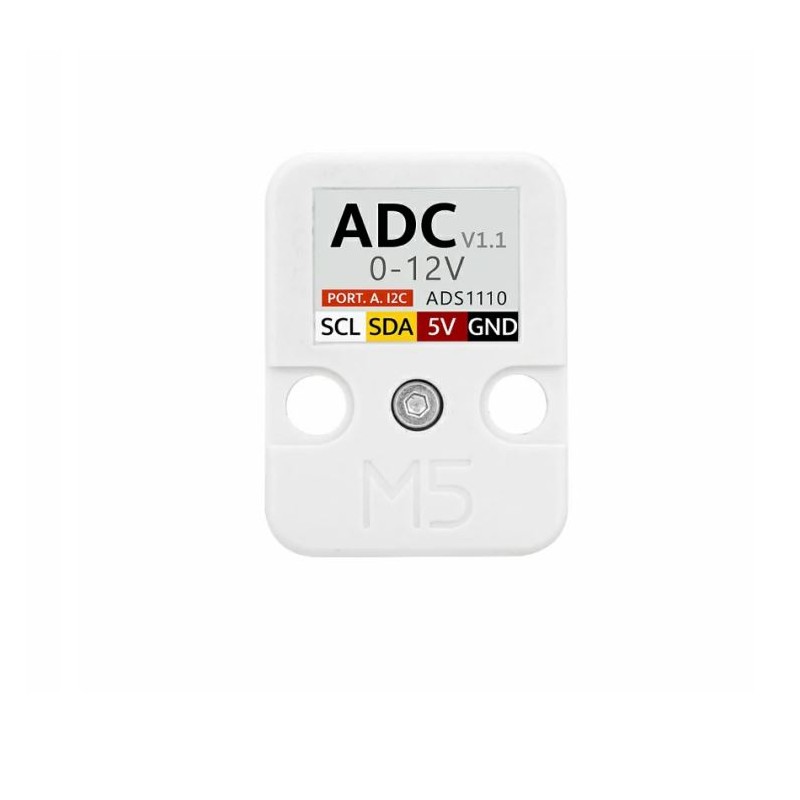

M5Stack U013-V11 - ADC V1.1 Module (ADS1110) for M5Stack
ID: 1200556
zł53.58
Tax included
zł43.56 tax excl.
16-bit analog-to-digital converter (ADC) module based on the ADS1110, used for precise measurement of analog signals in IoT and embedded systems. M5Stack U013-V11
Description
The M5Stack U013-V11 is an ADC (Analog-to-Digital Converter) V1.1 expansion module used for converting analog signals into digital data in projects based on the M5Stack platform, such as M5StickC, M5Core, and Atom. The module uses the precision ADS1110 ADC, providing 16-bit resolution and an internal voltage reference, which enables accurate measurement of low-level signals with minimal noise and temperature drift. Communication is handled via the I²C bus, simplifying integration with microcontrollers and other modules.
The module is used in industrial systems, automation, temperature measurement, and other applications that require precise acquisition of analog signals from sensors. Thanks to its 16-bit conversion resolution and I²C interface, straightforward integration with user software is supported.
Features
- Module type: Data conversion module / ADC
- ADC converter: ADS1110
- ADC resolution: 16-bit
- Communication interface: I²C (default address 0x48)
- Input voltage range: 0–12 V (via on-board input circuitry)
- Programmable gain amplifier (PGA): Yes (gain 1, 2, 4, 8)
- Internal voltage reference: 2.048 V
- Sampling rate: 8, 16, 32, 128 SPS
- Operating temperature: 0°C to 40°C
- Applications: Analog measurements, automation, IoT, embedded systems
- Compatibility: M5Stack series modules (e.g. M5StickC and other I²C-based devices)
- Version: v1.1
- Manufacturer: M5Stack
- SKU: U013-V11
Kit includes
- 1 × Unit ADC v1.1 (U013-V11)
- 1 × HY2.0-4P Grove cable, 20 cm
- 1 × VH3.96-2P screw terminal
